  5. Industrial Compound Gauge, 30 to 0 to 15 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

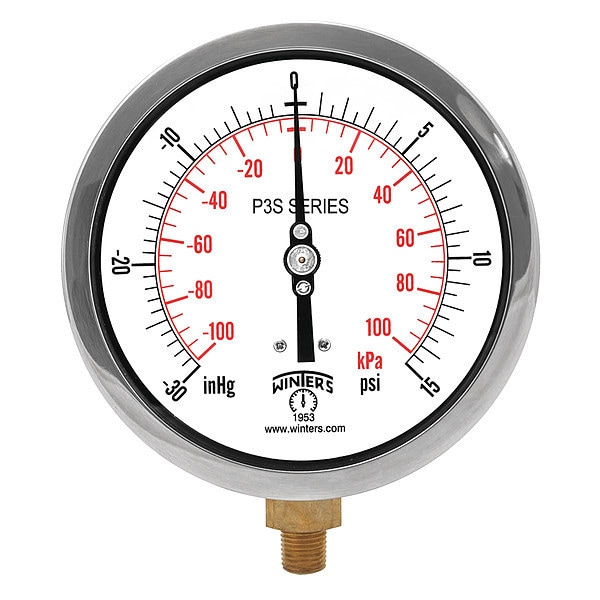

Winters Industrial Compound Gauge, 30 to 0 to 15 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location P3S6001 - main

Industrial Compound Gauge, 30 to 0 to 15 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # P3S6001

  • Zoro # G1603845

product price:  $50.79
/ea

Key Features

Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P3S6001
Zoro #
G1603845
UPC #
628311282023
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Nominal Dial Size
4 1/2 in
Case Diameter
4.92 in
Manufacturer Warranty Length
5 yr
Case Depth
2 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Boilers
Gauge Case Material
Aluminum
Series
P3S 300
Lens Material
Glass
Primary Pressure Range
30 to 0 to 15
Primary Scale Units
in Hg/psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Color
Black
For Use With
Air, Brass, Fresh Water, Industrial Applications, Media Compatible with Copper Alloy, Oil, Steam
Socket Material
Brass
Case Material
Aluminum
Gauge Special Options
Heavy Duty
Smallest Graduation
0.5 in Hg/0.2 psi/5 kPa
Gauge Primary Range Smallest Graduation
1/1/10
Gauge Secondary Range Values
0 to 70,000
Calibration Certificate Included
No
Gauge Primary Range Numbered Graduations
10/5/50
Connection Type
MNPT
Standards
ANSI/ASME, ASME, CRN
Case Construction
Welded Joint
Freeze Resistant Movement
No
Includes Vent Plug
No
Pointer Color
Black
Scale Type
Dual
Compatible Process Media
Air, Fresh Water, Oil, Steam
Pressure Gauge Type
Industrial Pressure Gauge
Pointer Material
Aluminum
Field Fillable
No
Vibration Resistance
None
Secondary Scale Units
kPa
Process Temperature Range
-40 Degrees to 150 Degrees F
Pointer Characteristics
Micrometer Adjustable
Accuracy Scale
Full Scale
Sensor Type
Bourdon Tube
Movement Material
Brass
Case Finish
Painted
Sensor Material
Phosphor Bronze
Cleaned for Oxygen Service
No
Over-Pressure Limit
30%
Gauge Case Liquid
None
Dial Color
White
Dial Face Material
Aluminum
Includes Mounting Hardware
No
Process Connection Gender
Male
Dry Dampening Feature
None
Bezel Material
Stainless Steel
Secondary Pressure Range
0 to 100
Non-Sparking
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Pressure Range Type
Compound
Removable Bezel
No
Accuracy Grade
ASME B40.100 Grade 2A
Includes Calibration Certificate
No
Operating Temperature Range
-40 Degrees to 150 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Maximum
100 kPa
Operating Temperature - Minimum
-40 Degrees F
Compatible with Brand
Universal
Primary Scale Vacuum Measurement - Maximum
30 in Hg
Process Media Temperature - Maximum
150 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Secondary Scale Pressure Measurement - Minimum
0 kPa
Operating Temperature - Maximum
150 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
IP Rating
IP52
Case Liquid
None
NEMA Enclosure Rating
5
Primary Scale Pressure Measurement - Maximum
15 psi

Description

Industrial Compound Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 30 to 0 to 15, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No
