  5. Industrial Compound Gauge, 30 to 0 to 160 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

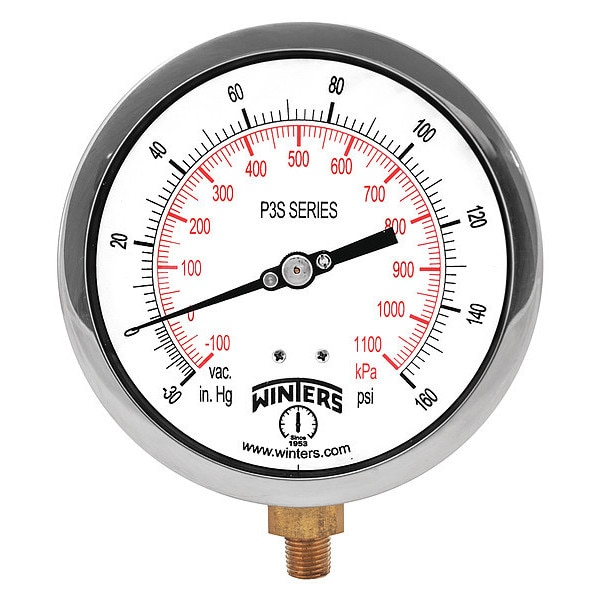

Winters Industrial Compound Gauge, 30 to 0 to 160 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location P3S6005 - main

Industrial Compound Gauge, 30 to 0 to 160 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # P3S6005

  • Zoro # G1603942

product price:  $50.79
/ea

Key Features

Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P3S6005
Zoro #
G1603942
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Case Diameter
4.92 in
Case Depth
2 in
Nominal Dial Size
4 1/2 in
Manufacturer Warranty Length
5 yr
Nominal Dial Diameter
4 1/2 in

Details

Item
Industrial Compound Gauge
Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Boilers
Gauge Case Material
Aluminum
Series
P3S 300
Lens Material
Glass
Primary Pressure Range
30 to 0 to 160
Primary Scale Units
in Hg/psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
10/10/50
Socket Material
Brass
Smallest Graduation
2 in Hg/2 psi/10 kPa
Calibration Certificate Included
No
Gauge Special Options
Heavy Duty
Case Material
Aluminum
For Use With
Air, Brass, Fresh Water, Industrial Applications, Media Compatible with Copper Alloy, Oil, Steam
Gauge Secondary Range Values
0 to 70,000
Gauge Primary Range Numbered Graduations
30/20/200
Case Color
Black
Connection Type
MNPT
Standards
ANSI/ASME, ASME, CRN
Movement Material
Brass
Removable Bezel
No
Dry Dampening Feature
None
Pointer Material
Aluminum
Over-Pressure Limit
30%
Pointer Color
Black
Case Finish
Painted
Vibration Resistance
None
Process Temperature Range
-40 Degrees to 150 Degrees F
Dial Face Material
Aluminum
Sensor Material
Phosphor Bronze
Gauge Case Liquid
None
Includes Calibration Certificate
No
Process Connection Gender
Male
Includes Mounting Hardware
No
Secondary Pressure Range
0 to 1,100
Includes Vent Plug
No
Freeze Resistant Movement
No
Field Fillable
No
Pointer Characteristics
Micrometer Adjustable
Cleaned for Oxygen Service
No
Accuracy Grade
ASME B40.100 Grade 2A
Compatible Process Media
Air, Fresh Water, Oil, Steam
Secondary Scale Units
kPa
Accuracy Scale
Full Scale
Sensor Type
Bourdon Tube
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Pressure Gauge Type
Industrial Pressure Gauge
Bezel Material
Stainless Steel
Scale Type
Dual
Case Construction
Welded Joint
Dial Color
White
Non-Sparking
No
Pressure Range Type
Compound
Operating Temperature Range
-40 Degrees to 150 Degrees F
Case Liquid
None
Process Media Temperature - Maximum
150 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Maximum
160 psi
Secondary Scale Pressure Measurement - Minimum
0 kPa
Secondary Scale Pressure Measurement - Maximum
1,100 kPa
IP Rating
IP52
NEMA Enclosure Rating
5
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Vacuum Measurement - Maximum
30 in Hg
Operating Temperature - Maximum
150 Degrees F
Compatible with Brand
Universal

Description

Industrial Compound Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 30 to 0 to 160, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No
