  5. Industrial Pressure Gauge, 0 to 15 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

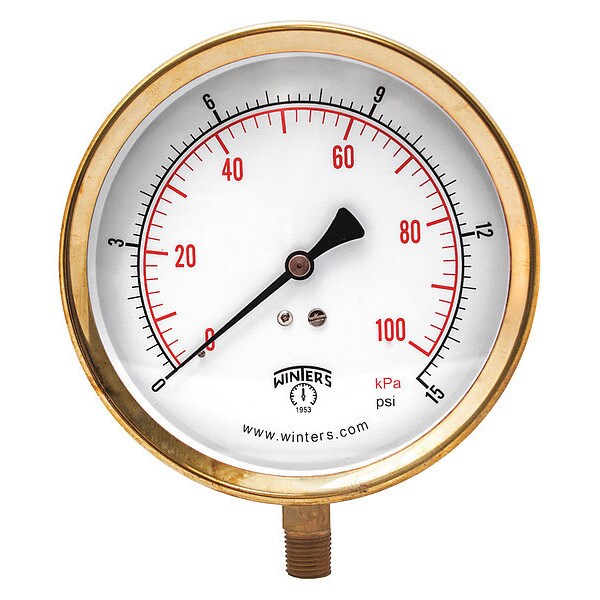

Winters Industrial Pressure Gauge, 0 to 15 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location P1S419 - main

Industrial Pressure Gauge, 0 to 15 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # P1S419

  • Zoro # G1604335

product price:  $38.79
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P1S419
Zoro #
G1604335
UPC #
628311255515
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Manufacturer Warranty Length
5 yr
Case Diameter
5.076 in
Case Depth
1.275 in
Nominal Dial Size
4 1/2 in
Nominal Dial Diameter
4 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Commercial, Refrigeration, HVAC/R, Plumbing
Gauge Case Material
Aluminum
Series
P1S 100
Lens Material
Glass
Primary Pressure Range
0 to 15
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Smallest Graduation
1/5
Standards
ANSI/ASME, CRN
Socket Material
Brass
Case Color
Black
Gauge Secondary Range Values
0 to 100
Calibration Certificate Included
No
Connection Type
MNPT
Gauge Primary Range Numbered Graduations
3/10
For Use With
Media Compatible with Bronze
Case Material
Aluminum
Smallest Graduation
0.2 psi/1 kPa
Gauge Special Options
Heavy Duty
Non-Sparking
No
Case Construction
Welded Joint
Secondary Scale Units
kPa
Secondary Pressure Range
0 to 100
Freeze Resistant Movement
No
Dial Color
White
Case Finish
Polished
Pressure Gauge Type
Industrial Pressure Gauge
Gauge Case Liquid
None
Over-Pressure Limit
25% of Full Scale
Cleaned for Oxygen Service
No
Accuracy Grade
ASME B40.100 Grade 1A
Process Temperature Range
-40 Degrees to 200 Degrees F
Sensor Material
Phosphor Bronze
Bezel Material
Brass
Pointer Material
Aluminum
Includes Mounting Hardware
No
Includes Calibration Certificate
No
Dry Dampening Feature
None
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F (-40 Degrees to 93 Degrees C)
Pressure Range Type
Pressure
Pointer Color
Black
Vibration Resistance
None
Dial Face Material
Aluminum
Field Fillable
No
Accuracy Scale
Full Scale
Sensor Type
Bourdon Tube
Includes Vent Plug
No
Process Connection Gender
Male
Removable Bezel
No
Scale Type
Dual
Movement Material
Brass
Operating Temperature Range
-40 Degrees to 200 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Pressure Measurement - Maximum
15 psi
Process Media Temperature - Maximum
200 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
200 Degrees F
IP Rating
IP52
Secondary Scale Pressure Measurement - Minimum
0 kPa
Operating Temperature - Minimum
-40 Degrees F
Compatible with Brand
Universal
Case Liquid
None
NEMA Enclosure Rating
5
Secondary Scale Pressure Measurement - Maximum
100 kPa

Description

Industrial Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-1.0 Percent, Gauge Case Material Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 15, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No
