  5. Industrial Pressure Gauge, 0 to 160 psi, 6 in Dial, 1/4 in NPT, Bottom Location

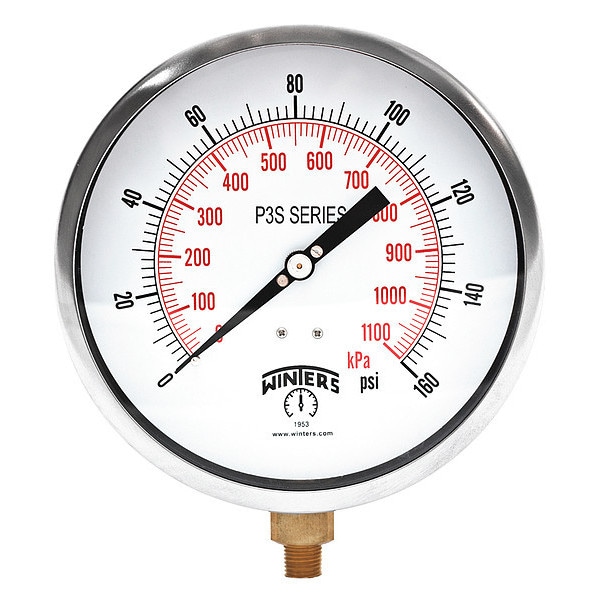

Winters Industrial Pressure Gauge, 0 to 160 psi, 6 in Dial, 1/4 in NPT, Bottom Location P3S6087 - main

Industrial Pressure Gauge, 0 to 160 psi, 6 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # P3S6087

  • Zoro # G1604152

product price:  $70.29
/ea

Key Features

Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P3S6087
Zoro #
G1604152
UPC #
628311283136
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
6 in
Manufacturer Warranty Length
5 yr
Case Diameter
6.342 in
Case Depth
2 in
Nominal Dial Size
6 in
Nominal Dial Diameter
6 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Boilers
Gauge Case Material
Aluminum
Series
P3S 300
Lens Material
Glass
Primary Pressure Range
0 to 160
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Primary Range Numbered Graduations
20/200
Gauge Primary Range Smallest Graduation
10/50
Gauge Special Options
Heavy Duty
Connection Type
MNPT
Case Color
Black
For Use With
Air, Brass, Fresh Water, Industrial Applications, Media Compatible with Copper Alloy, Oil, Steam
Smallest Graduation
2 psi/10 kPa
Gauge Secondary Range Values
0 to 1100
Standards
ANSI/ASME, ASME, CRN
Case Material
Aluminum
Socket Material
Brass
Calibration Certificate Included
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Pointer Material
Aluminum
Accuracy Grade
ASME B40.100 Grade 2A
Vibration Resistance
None
Includes Vent Plug
No
Compatible Process Media
Air, Fresh Water, Oil, Steam
Movement Material
Brass
Accuracy Scale
Full Scale
Dial Color
White
Sensor Type
Bourdon Tube
Secondary Scale Units
kPa
Removable Bezel
No
Dry Dampening Feature
None
Cleaned for Oxygen Service
No
Pointer Characteristics
Micrometer Adjustable
Field Fillable
No
Pressure Gauge Type
Industrial Pressure Gauge
Includes Calibration Certificate
No
Dial Face Material
Aluminum
Bezel Material
Stainless Steel
Includes Mounting Hardware
No
Case Finish
Polished
Process Temperature Range
-40 Degrees to 150 Degrees F
Case Construction
Welded Joint
Non-Sparking
No
Gauge Case Liquid
None
Pointer Color
Black
Sensor Material
Phosphor Bronze
Over-Pressure Limit
30%
Process Connection Gender
Male
Scale Type
Dual
Pressure Range Type
Pressure
Freeze Resistant Movement
No
Secondary Pressure Range
0 to 1,100
Operating Temperature Range
-40 Degrees to 150 Degrees F
NEMA Enclosure Rating
5
Case Liquid
None
Primary Scale Pressure Measurement - Maximum
160 psi
Secondary Scale Pressure Measurement - Maximum
1,100 kPa
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Compatible with Brand
Universal
IP Rating
IP52
Secondary Scale Pressure Measurement - Minimum
0 kPa
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
150 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 6 in, Accuracy +/-0.5 Percent, Gauge Case Material Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 160, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No
