Shop WINTERS

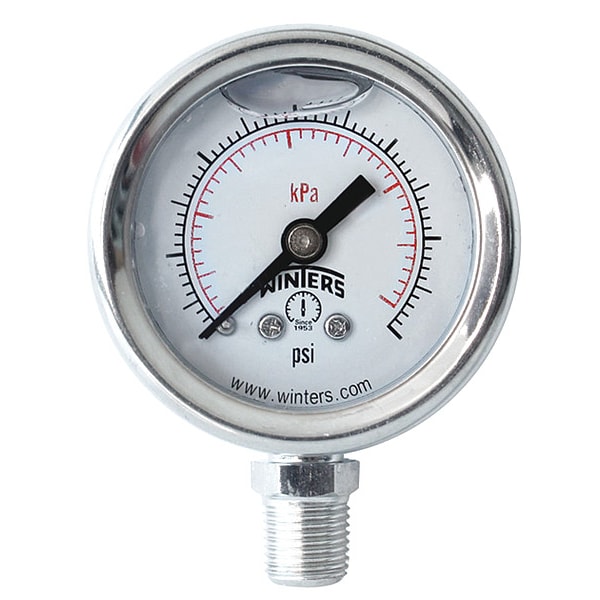

Industrial Pressure Gauge, 0 to 200 psi, 1 1/2 in Dial, 1/8 in NPT, Bottom Location

  • Mfr # PFQ1206

  • Zoro # G1937465

product price:
$
23.99
/ea

Key Features

Accuracy
+/-2.5%
Process Connection Location
Bottom
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
1 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PFQ1206
Zoro #
G1937465
UPC #
628311254143
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
1 1/2 in
Manufacturer Warranty Length
5 yr
Case Diameter
4.92 in
Nominal Dial Size
1 1/2 in
Case Depth
1.18 in
Nominal Dial Diameter
1 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Pneumatics
Gauge Case Material
304 Stainless Steel
Series
PFQ
Lens Material
Polycarbonate
Primary Pressure Range
0 to 200
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
For Use With
Media Compatible with 316L Stainless Steel
Gauge Filled With
Glycerin
Calibration Certificate Included
No
Gauge Secondary Range Values
0 to 1380
Features
Ring Terminal
Gauge Primary Range Smallest Graduation
10/100
Gauge Primary Range Numbered Graduations
50/200
Gauge Special Options
Heavy Duty
Case Color
Metallic
Smallest Graduation
2 psi/20 kPa
Case Material
304 Stainless Steel
Gauge Application
Corrosion-Resistant Case
Socket Material
316 Stainless Steel
Connection Type
MNPT
Standards
ASME, CRN
Includes Calibration Certificate
No
Movement Material
Stainless Steel
Includes Vent Plug
Yes
Case Construction
Welded Joint
Removable Bezel
Yes
Pointer Material
Aluminum
Vibration Resistance
Liquid-Filled
Accuracy Scale
Full Scale
Bezel Mounting Type
Crimped
Scale Type
Dual
Dry Dampening Feature
None
Dial Face Material
Aluminum
Includes Mounting Hardware
No
Sensor Type
Bourdon Tube
Field Fillable
No
Secondary Pressure Range
0 to 1,400 kPa
Bezel Material
304 Stainless Steel
Non-Sparking
No
Pointer Color
Black
Freeze Resistant Movement
No
Process Connection Gender
Male
Bezel Gasket Material
Silicone
Process Temperature Range
-4 Degrees to 150 Degrees F
Sensor Material
316L Stainless Steel
Over-Pressure Limit
25%
Pressure Range Type
Pressure
Ambient Operating Temperature Range
-4 Degrees to 150 Degrees F (-20 Degrees to 65 Degrees C)
Pressure Gauge Type
Industrial Pressure Gauge
Gauge Case Liquid
Glycerin
Dial Color
White
Compatible Process Media
Air, Water
Cleaned for Oxygen Service
No
Secondary Scale Units
kPa
Operating Temperature Range
-4 Degrees to 150 Degrees F
Secondary Scale Pressure Measurement - Maximum
1,400 kPa
IP Rating
IP65
Case Liquid
Glycerin
Operating Temperature - Minimum
-4 Degrees F
Operating Temperature - Maximum
150 Degrees F
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Maximum
200 psi
Secondary Scale Pressure Measurement - Minimum
0 kPa
Process Media Temperature - Maximum
150 Degrees F
NEMA Enclosure Rating
4
Process Media Temperature - Minimum
-4 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi

Description

Industrial Pressure Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-2.5 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP65, Primary Pressure Range 0 to 200, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
