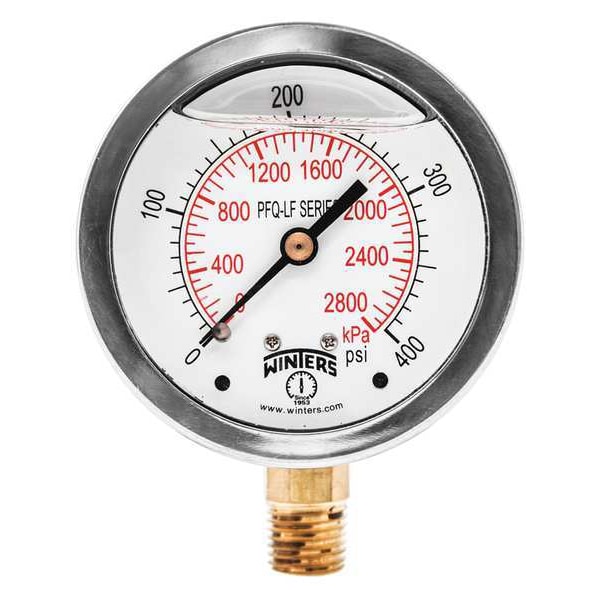

Lead-Free Pressure Gauge, 0 to 400 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PFQ817LF

  • Zoro # G9756327

product price:
$
25.19
/ea

Key Features

Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PFQ817LF
Zoro #
G9756327
UPC #
628311266153
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Case Diameter
67.1 mm
Nominal Dial Size
2 1/2 in
Manufacturer Warranty Length
5 yr
Case Depth
33 mm
Nominal Dial Diameter
2 1/2 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps
Gauge Case Material
304 Stainless Steel
Series
PFQ-LF
Lens Material
Plastic
Primary Pressure Range
0 to 400
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Case Color
Metallic
Gauge Special Options
Restricted Orifice
Required Gauge Adapter
No
Gauge Application
Ideal for Pumps, Compressors, Hydraulic Presses, Machinery, Pneumatic Equipment and Motors in Harsh Environments
For Use With
Ideal for Plumbing, Heating, Air Conditioning, Pumps, Compressors, Pneumatic Equipment
Characteristics
Crimp-On Bezel, CRN Registered, Pulsation Resistant, Restricted Orifice
Gauge Filled With
Glycerin
Case Material
304 Stainless Steel
Socket Material
Lead Free Brass
NSF Certified
Yes
Connection Type
MNPT
Standards
ASME, CRN
Wetted Materials
Brass / Bronze
Dial Face Material
Aluminum
Includes Mounting Hardware
No
Pressure Gauge Type
Lead-Free Pressure Gauge
Pointer Color
Black
Over-Pressure Limit
25%
Sensor Type
Bourdon Tube
Removable Bezel
Yes
Field Fillable
No
Process Temperature Range
-4 Degrees to 150 Degrees F
Bezel Material
304 Stainless Steel
Ambient Operating Temperature Range
-4 Degrees to 150 Degrees F (-20 Degrees to 65 Degrees C)
Pointer Material
Aluminum
Pressure Range Type
Pressure
Accuracy Scale
Full Scale
Scale Type
Dual
Includes Calibration Certificate
No
Dial Color
White
Includes Vent Plug
Yes
Secondary Scale Units
kPa
Bezel Mounting Type
Crimped
Case Construction
Welded Joint
Bezel Gasket Material
Silicone
Process Connection Gender
Male
Movement Material
Stainless Steel
Gauge Case Liquid
Glycerin
Dry Dampening Feature
None
Freeze Resistant Movement
No
Vibration Resistance
Liquid-Filled
Non-Sparking
No
Sensor Material
Phosphor Bronze
Cleaned for Oxygen Service
No
Compatible Process Media
Air, Water
Secondary Pressure Range
0 to 2,800
Maximum Pressure
400
Operating Temperature Range
-4 Degrees to 150 Degrees F
NEMA Enclosure Rating
4
Operating Temperature - Minimum
-4 Degrees F
Process Media Temperature - Maximum
150 Degrees F
Secondary Scale Pressure Measurement - Maximum
2,800 kPa
Operating Temperature - Maximum
150 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Minimum
0 psi
Compatible with Brand
Universal
Process Media Temperature - Minimum
-4 Degrees F
Case Liquid
Glycerin
Primary Scale Pressure Measurement - Maximum
400 psi
IP Rating
IP65

Description

Lead-Free Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-1.50 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP65, Primary Pressure Range 0 to 400, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Lead-Free Pressure Gauge
