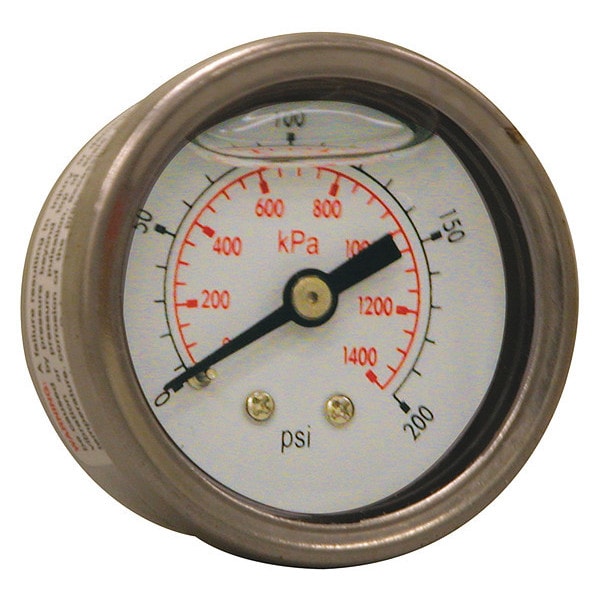

Industrial Pressure Gauge, 0 to 200 psi, 1 1/2 in Dial, 1/8 in NPT, Center Back Location

  • Mfr # PFQ1226

  • Zoro # G1604615

product price:
$
21.69
/ea

Key Features

Accuracy
+/-2.5%
Process Connection Location
Center Back
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
1 1/2 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PFQ1226
Zoro #
G1604615
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
1 1/2 in
Manufacturer Warranty Length
5 yr
Case Diameter
1.8 in
Nominal Dial Size
1 1/2 in
Case Depth
0.992 in
Nominal Dial Diameter
1 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2.5%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps
Gauge Case Material
304 Stainless Steel
Series
PFQ
Lens Material
Polycarbonate
Primary Pressure Range
0 to 200
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Material
304 Stainless Steel
Gauge Primary Range Smallest Graduation
10/100
Calibration Certificate Included
No
Smallest Graduation
2 psi/20 kPa
Case Color
Metallic
Gauge Special Options
Heavy Duty
Gauge Primary Range Numbered Graduations
50/200
For Use With
Media Compatible with 316L Stainless Steel
Features
Ring Terminal
Connection Type
MNPT
Gauge Secondary Range Values
0 to 1380
Standards
ASME, CRN
Gauge Filled With
Glycerin
Gauge Application
Corrosion-Resistant Case
Socket Material
316 Stainless Steel
Bezel Mounting Type
Crimped
Ambient Operating Temperature Range
-4 Degrees to 150 Degrees F (-20 Degrees to 65 Degrees C)
Case Construction
Welded Joint
Process Temperature Range
-4 Degrees to 150 Degrees F
Includes Calibration Certificate
No
Sensor Type
Bourdon Tube
Freeze Resistant Movement
No
Removable Bezel
Yes
Pointer Material
Aluminum
Sensor Material
316L Stainless Steel
Bezel Gasket Material
Silicone
Bezel Material
304 Stainless Steel
Movement Material
Stainless Steel
Accuracy Scale
Full Scale
Over-Pressure Limit
25%
Cleaned for Oxygen Service
No
Gauge Case Liquid
Glycerin
Vibration Resistance
Liquid-Filled
Pressure Range Type
Pressure
Includes Vent Plug
Yes
Compatible Process Media
Air, Water
Process Connection Gender
Male
Non-Sparking
No
Pressure Gauge Type
Industrial Pressure Gauge
Pointer Color
Black
Scale Type
Dual
Dial Color
White
Dry Dampening Feature
None
Secondary Scale Units
kPa
Secondary Pressure Range
0 to 1,400 kPa
Includes Mounting Hardware
No
Dial Face Material
Aluminum
Field Fillable
No
Operating Temperature Range
-4 Degrees to 150 Degrees F
Secondary Scale Pressure Measurement - Maximum
14,000 kPa
Process Media Temperature - Maximum
150 Degrees F
Operating Temperature - Maximum
150 Degrees F
Operating Temperature - Minimum
-4 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Primary Scale Pressure Measurement - Maximum
200 psi
Case Liquid
Glycerin
IP Rating
IP65
Secondary Scale Pressure Measurement - Minimum
0 kPa
NEMA Enclosure Rating
4
Compatible with Brand
Universal
Process Media Temperature - Minimum
-4 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-2.5 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating IP65, Primary Pressure Range 0 to 200, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
