  5. Industrial Pressure Gauge, 0 to 30 psi, 6 in Dial, 1/4 in NPT, Bottom Location

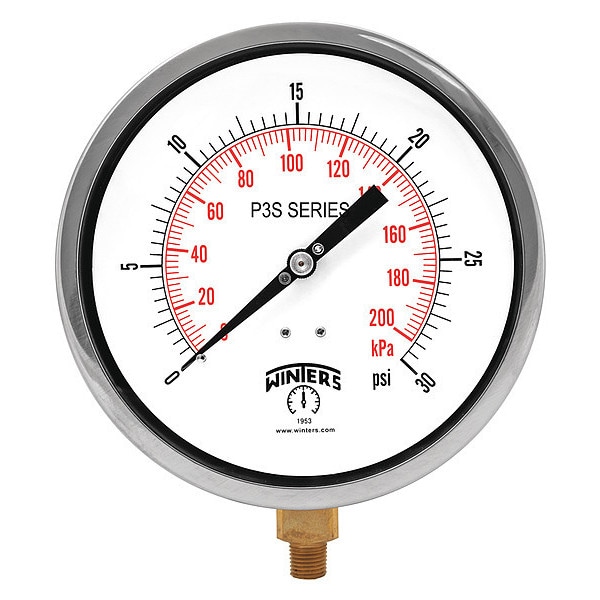

Winters Industrial Pressure Gauge, 0 to 30 psi, 6 in Dial, 1/4 in NPT, Bottom Location P3S6084 - main
Shop WINTERS

Industrial Pressure Gauge, 0 to 30 psi, 6 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # P3S6084

  • Zoro # G1936485

product price:  $75.25
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
6 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P3S6084
Zoro #
G1936485
UPC #
628311283105
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
6 in
Case Depth
2 in
Case Diameter
6.342 in
Nominal Dial Size
6 in
Manufacturer Warranty Length
5 yr
Nominal Dial Diameter
6 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Boilers
Gauge Case Material
Aluminum
Series
P3S 300
Lens Material
Glass
Primary Pressure Range
0 to 30
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
For Use With
Air, Brass, Fresh Water, Industrial Applications, Media Compatible with Copper Alloy, Oil, Steam
Calibration Certificate Included
No
Gauge Primary Range Numbered Graduations
5/20
Gauge Secondary Range Values
0 to 200
Gauge Primary Range Smallest Graduation
1/10
Case Color
Black
Smallest Graduation
0.2 psi/2 kPa
Gauge Special Options
Heavy Duty
Case Material
Aluminum
Socket Material
Brass
Standards
ANSI/ASME, ASME, CRN
Connection Type
MNPT
Secondary Pressure Range
0 to 200
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Includes Mounting Hardware
No
Dry Dampening Feature
None
Pressure Gauge Type
Industrial Pressure Gauge
Pressure Range Type
Pressure
Accuracy Grade
ASME B40.100 Grade 2A
Case Finish
Polished
Includes Calibration Certificate
No
Removable Bezel
No
Process Connection Gender
Male
Movement Material
Brass
Compatible Process Media
Air, Fresh Water, Oil, Steam
Field Fillable
No
Case Construction
Welded Joint
Sensor Type
Bourdon Tube
Cleaned for Oxygen Service
No
Pointer Color
Black
Includes Vent Plug
No
Accuracy Scale
Full Scale
Freeze Resistant Movement
No
Over-Pressure Limit
30%
Process Temperature Range
-40 Degrees to 150 Degrees F
Vibration Resistance
None
Non-Sparking
No
Pointer Characteristics
Micrometer Adjustable
Dial Color
White
Scale Type
Dual
Pointer Material
Aluminum
Sensor Material
Phosphor Bronze
Secondary Scale Units
kPa
Bezel Material
Stainless Steel
Dial Face Material
Aluminum
Gauge Case Liquid
None
Operating Temperature Range
-40 Degrees to 150 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Compatible with Brand
Universal
Operating Temperature - Minimum
-40 Degrees F
IP Rating
IP52
Secondary Scale Pressure Measurement - Minimum
0 kPa
Case Liquid
None
Process Media Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
200 kPa
Primary Scale Pressure Measurement - Maximum
30 psi
NEMA Enclosure Rating
5
Process Media Temperature - Maximum
150 Degrees F
Operating Temperature - Maximum
150 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 6 in, Accuracy +/-0.5 Percent, Gauge Case Material Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 30, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No
