  5. Industrial Pressure Gauge, 0 to 5,000 psi, 2 in Dial, 1/4 in NPT, Bottom Location

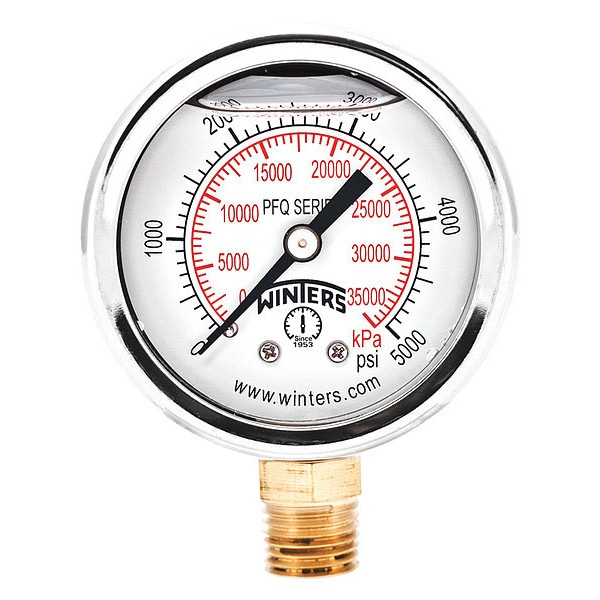

Winters Industrial Pressure Gauge, 0 to 5,000 psi, 2 in Dial, 1/4 in NPT, Bottom Location PFQ2473 - main

Industrial Pressure Gauge, 0 to 5,000 psi, 2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PFQ2473

  • Zoro # G1604791

product price:  $13.99
/ea

Key Features

Accuracy
+/-2.5%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PFQ2473
Zoro #
G1604791
UPC #
628311254938
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
Manufacturer Warranty Length
5 yr
Case Diameter
2.047 in
Case Depth
1.142 in
Nominal Dial Size
2 in
Nominal Dial Diameter
2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-2.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps
Gauge Case Material
304 Stainless Steel
Series
PFQ
Lens Material
Polycarbonate
Primary Pressure Range
0 to 5,000
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Material
304 Stainless Steel
Gauge Primary Range Smallest Graduation
500/5000
Gauge Application
Corrosion-Resistant Case
Socket Material
Brass OT58
Gauge Filled With
Glycerin
Standards
ASME, CRN
For Use With
Media Compatible with Bronze
Gauge Special Options
Heavy Duty
Gauge Primary Range Numbered Graduations
1000/10000
Case Color
Metallic
Calibration Certificate Included
No
Connection Type
MNPT
Features
Ring Terminal
Gauge Secondary Range Values
0 to 35,000
Smallest Graduation
100 psi/1000 kPa
Gauge Case Liquid
Glycerin
Pressure Range Type
Pressure
Dial Face Material
Aluminum
Secondary Scale Units
kPa
Process Temperature Range
-4 Degrees to 150 Degrees F
Dial Color
White
Over-Pressure Limit
25%
Sensor Material
Phosphor Bronze
Field Fillable
No
Bezel Gasket Material
Silicone
Sensor Type
Bourdon Tube
Movement Material
Brass OT59
Case Construction
Welded Joint
Process Connection Gender
Male
Scale Type
Dual
Compatible Process Media
Air, Water
Pressure Gauge Type
Industrial Pressure Gauge
Accuracy Scale
Full Scale
Bezel Material
304 Stainless Steel
Vibration Resistance
Liquid-Filled
Non-Sparking
No
Dry Dampening Feature
None
Secondary Pressure Range
0 to 35,000 kPa
Includes Calibration Certificate
No
Cleaned for Oxygen Service
No
Pointer Color
Black
Includes Vent Plug
Yes
Includes Mounting Hardware
No
Freeze Resistant Movement
No
Removable Bezel
Yes
Bezel Mounting Type
Crimped
Pointer Material
Aluminum
Ambient Operating Temperature Range
-4 Degrees to 150 Degrees F (-20 Degrees to 65 Degrees C)
Operating Temperature Range
-4 Degrees to 150 Degrees F
IP Rating
IP65
Operating Temperature - Maximum
150 Degrees F
Process Media Temperature - Minimum
-4 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Maximum
35,000 kPa
Process Media Temperature - Maximum
150 Degrees F
Compatible with Brand
Universal
Secondary Scale Pressure Measurement - Minimum
0 kPa
Case Liquid
Glycerin
Primary Scale Pressure Measurement - Maximum
5,000 psi
Operating Temperature - Minimum
-4 Degrees F
NEMA Enclosure Rating
4

Description

Industrial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-2.5 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP65, Primary Pressure Range 0 to 5,000, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
