  5. Industrial Pressure Gauge, 0 to 60 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

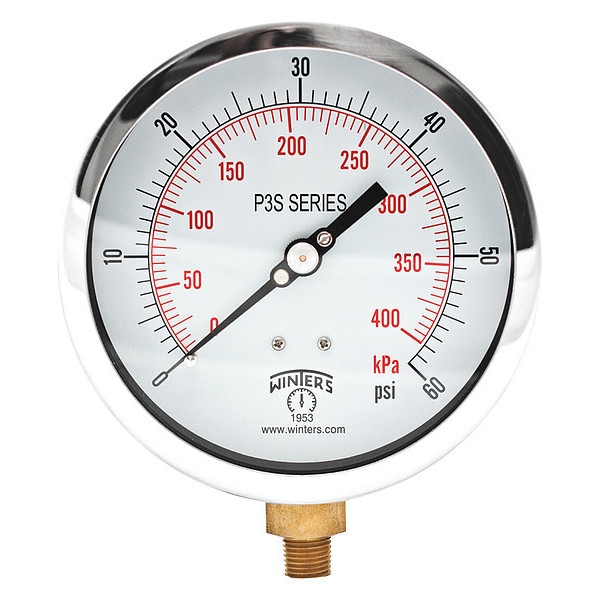

Winters Industrial Pressure Gauge, 0 to 60 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location P3S6010 - main
Shop WINTERS

Industrial Pressure Gauge, 0 to 60 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # P3S6010

  • Zoro # G1936512

product price:  $62.29
/ea

Key Features

Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P3S6010
Zoro #
G1936512
UPC #
628311282115
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Nominal Dial Size
4 1/2 in
Case Depth
2 in
Case Diameter
4.92 in
Manufacturer Warranty Length
5 yr
Nominal Dial Diameter
4 1/2 in

Details

Item
Industrial Pressure Gauge
Accuracy
+/-0.5%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Boilers
Gauge Case Material
Aluminum
Series
P3S 300
Lens Material
Glass
Primary Pressure Range
0 to 60
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Secondary Range Values
0 to 410
Gauge Special Options
Heavy Duty
Calibration Certificate Included
No
Gauge Primary Range Smallest Graduation
2/10
Gauge Primary Range Numbered Graduations
10/50
For Use With
Air, Brass, Fresh Water, Industrial Applications, Media Compatible with Copper Alloy, Oil, Steam
Case Color
Black
Smallest Graduation
1 psi/10 kPa
Socket Material
Brass
Case Material
Aluminum
Standards
ANSI/ASME, ASME, CRN
Connection Type
MNPT
Compatible Process Media
Air, Fresh Water, Oil, Steam
Removable Bezel
No
Secondary Pressure Range
0 to 410
Sensor Material
Phosphor Bronze
Case Construction
Welded Joint
Process Connection Gender
Male
Freeze Resistant Movement
No
Vibration Resistance
None
Case Finish
Polished
Process Temperature Range
-40 Degrees to 150 Degrees F
Includes Mounting Hardware
No
Accuracy Grade
ASME B40.100 Grade 2A
Pointer Color
Black
Accuracy Scale
Full Scale
Field Fillable
No
Pressure Range Type
Pressure
Dial Face Material
Aluminum
Dry Dampening Feature
None
Over-Pressure Limit
30%
Dial Color
White
Secondary Scale Units
kPa
Non-Sparking
No
Movement Material
Brass
Pointer Material
Aluminum
Gauge Case Liquid
None
Bezel Material
Stainless Steel
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Sensor Type
Bourdon Tube
Includes Calibration Certificate
No
Cleaned for Oxygen Service
No
Pressure Gauge Type
Industrial Pressure Gauge
Pointer Characteristics
Micrometer Adjustable
Scale Type
Dual
Includes Vent Plug
No
Operating Temperature Range
-40 Degrees to 150 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Maximum
410 kPa
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Maximum
150 Degrees F
NEMA Enclosure Rating
5
Compatible with Brand
Universal
Secondary Scale Pressure Measurement - Minimum
0 kPa
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Maximum
60 psi
Case Liquid
None
IP Rating
IP52
Operating Temperature - Maximum
150 Degrees F

Description

Industrial Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 60, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge, Liquid-Filled Case No
