Winters

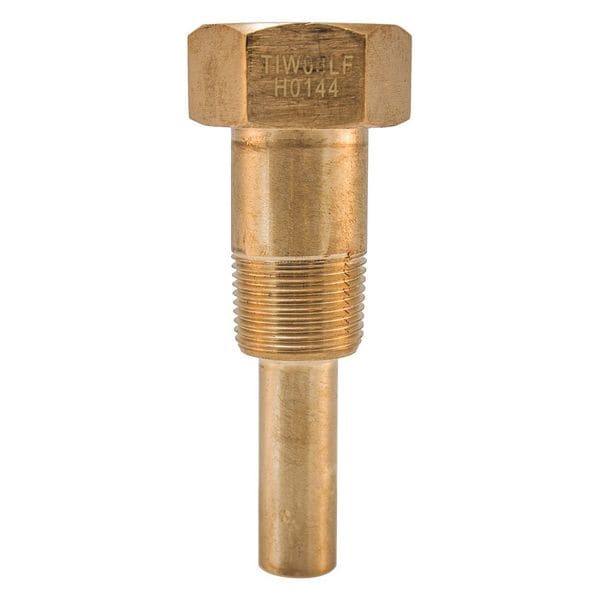

Industrial Thermowell, 3.5in. Stem, Brass

Winters Industrial Thermowell, 3.5in. Stem, Brass TIW03LF
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$34.83
  • Item: Threaded Thermowell
  • Internal Thread Size: 1 1/4"-18 UNF
  • Stem Length: 3.5 in
See full product details
Orders over $75 ship free.
Total: $34.83

Winters #TIW03LF Specifications

  • Item: Threaded Thermowell
  • Internal Thread Size: 1 1/4"-18 UNF
  • Stem Length: 3.5 in
  • Process Connection: 3/4 in MNPT
  • Insertion Length: 1.75 in
  • Material: Brass
  • Neck Extension: 4.25 in
  • Bore Dia.: 7/16 in Tapered
  • Shank Dia.: 0.63 in
  • NSF Certified: Yes
  • For Thermometer Thread Size: 1 1/4 in
  • For Stem Diameter: 7/16 in
  • Maximum Operating Temperature: 400 Degrees F/204 Degrees C
  • For Stem Length: 3 1/2 in
  • Shank Type: Stepped
  • Application: Chill Water Lines, Hot Water Lines, HVAC, Pipes, Potable Water Applications
  • For Thermometer Thread Type: UNEF
  • Thread Type: NPT
  • Food Safe: Yes
  • Includes Cap and Chain: No
  • Maximum Operating Pressure: 710 psi
  • Thread Gender: Male
  • Thread Size: 3/4 in
  • Includes Lagging: Yes
  • For Thermometer Thread Connection: 1 1/4 in UNEF
  • NSF Rated: Yes
  • Thermowell Type: Threaded
  • Country of Origin (subject to change): China
Feedback Help us improve our product information

Description

Industrial Thermowell, Internal Thread Size 1 1/4 In.-18 UNF, Stem Length 3.5 in, Process Connection 3/4 in NPT, Insertion Length 1 3/4 in, Material Lead Free Brass, Neck Extension 1 in, Bore Dia. 7/16 in Tapered, Shank Dia. 0.63 in, NSF Certified Yes

Restrictions and Compliance

  • This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
