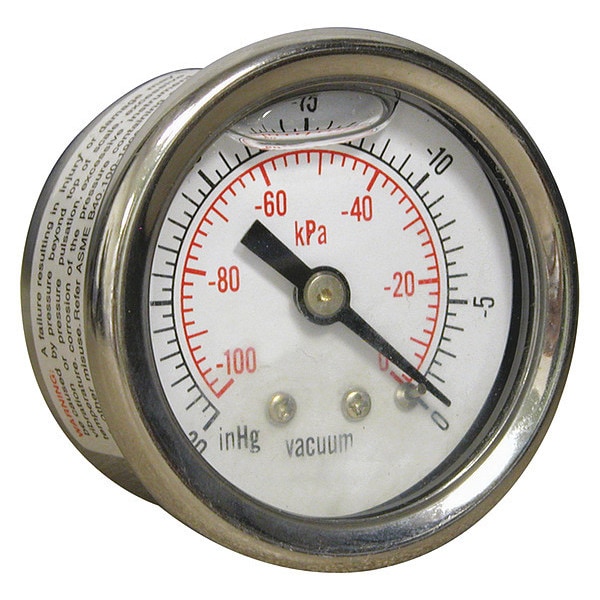

Winters Industrial Vacuum Gauge, 30 to 0 psi, 1 1/2 in Dial, 1/8 in NPT, Center Back Location PFQ1220 - main

Industrial Vacuum Gauge, 30 to 0 psi, 1 1/2 in Dial, 1/8 in NPT, Center Back Location

  • Mfr # PFQ1220

  • Zoro # G7558758

product price:  $26.29
/ea

Key Features

Accuracy
+/-2.5%
Process Connection Location
Center Back
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
1 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PFQ1220
Zoro #
G7558758
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
1 1/2 in
Case Diameter
1.8 in
Case Depth
0.992 in
Manufacturer Warranty Length
5 yr
Nominal Dial Size
1 1/2 in
Nominal Dial Diameter
1 1/2 in

Details

Item
Industrial Vacuum Gauge
Accuracy
+/-2.5%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps
Gauge Case Material
304 Stainless Steel
Series
PFQ
Lens Material
Polycarbonate
Primary Pressure Range
30 to 0
Primary Scale Units
in Hg
IP/NEMA Rating
IP65
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Case Material
304 Stainless Steel
Calibration Certificate Included
No
Case Color
Metallic
Gauge Application
Corrosion-Resistant Case
Gauge Secondary Range Values
-100 to 0
Smallest Graduation
0.5 in Hg/2 kPa
Connection Location
Center Back
Socket Material
316 Stainless Steel
Standards
ASME, CRN
Connection Type
MNPT
Includes Calibration Certificate
No
Pointer Color
Black
Gauge Case Liquid
Glycerin
Includes Mounting Hardware
No
Sensor Material
Stainless Steel
Dial Color
White
Accuracy Scale
Full Scale
Non-Sparking
No
Bezel Material
304 Stainless Steel
Vibration Resistance
Liquid-Filled
Pressure Gauge Type
Industrial Pressure Gauge
Compatible Process Media
Air, Water
Over-Pressure Limit
25%
Cleaned for Oxygen Service
No
Sensor Type
Bourdon Tube
Pressure Range Type
Vacuum
Process Connection Gender
Male
Secondary Scale Units
kPa
Includes Vent Plug
Yes
Scale Type
Dual
Movement Material
Stainless Steel
Dry Dampening Feature
None
Bezel Gasket Material
Silicone
Process Temperature Range
-40 Degrees to 150 Degrees F
Pointer Material
Aluminum
Removable Bezel
Yes
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Field Fillable
No
Freeze Resistant Movement
No
Bezel Mounting Type
Crimped
Dial Face Material
Aluminum
Secondary Pressure Range
-101 to 0 kPa
Case Construction
Welded Joint
Secondary Scale Vacuum Measurement - Maximum
0 kPa
Secondary Scale Pressure Measurement - Maximum
-100 kPa
Process Media Temperature - Minimum
-40 Degrees F
Compatible with Brand
Universal
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Secondary Scale Vacuum Measurement - Minimum
-101 kPa
Process Media Temperature - Maximum
150 Degrees F
NEMA Enclosure Rating
4
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Minimum
0 in Hg
IP Rating
IP65
Case Liquid
Glycerin
Operating Temperature - Maximum
150 Degrees F
Primary Scale Vacuum Measurement - Maximum
30 in Hg
Primary Scale Pressure Measurement - Maximum
-30 in Hg
Operating Temperature - Minimum
-40 Degrees F

Description

Industrial Vacuum Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-2.5 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating IP65, Primary Pressure Range 30 to 0, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White
