  5. Lead-Free Pressure Gauge, 0 to 15 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

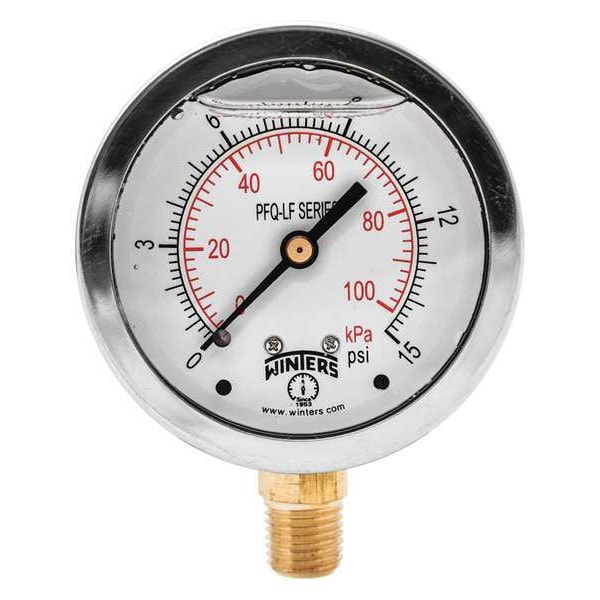

Winters Lead-Free Pressure Gauge, 0 to 15 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location PFQ800LF - main

Lead-Free Pressure Gauge, 0 to 15 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PFQ800LF

  • Zoro # G9756372

product price:  $22.89
/ea

Key Features

Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PFQ800LF
Zoro #
G9756372
UPC #
628311266085
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Case Diameter
67.1 mm
Case Depth
33 mm
Manufacturer Warranty Length
5 yr
Nominal Dial Size
2 1/2 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps
Gauge Case Material
304 Stainless Steel
Series
PFQ-LF
Lens Material
Plastic
Primary Pressure Range
0 to 15
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Gauge Filled With
Glycerin
For Use With
Ideal for Plumbing, Heating, Air Conditioning, Pumps, Compressors, Pneumatic Equipment
Gauge Application
Ideal for Pumps, Compressors, Hydraulic Presses, Machinery, Pneumatic Equipment and Motors in Harsh Environments
Required Gauge Adapter
No
Characteristics
Crimp-On Bezel, CRN Registered, Pulsation Resistant, Restricted Orifice
Gauge Special Options
Restricted Orifice
Case Color
Metallic
Socket Material
Lead Free Brass
Case Material
304 Stainless Steel
NSF Certified
Yes
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Standards
ASME, CRN
Accuracy Scale
Full Scale
Pointer Color
Black
Bezel Material
304 Stainless Steel
Case Construction
Welded Joint
Pressure Gauge Type
Lead-Free Pressure Gauge
Field Fillable
No
Sensor Type
Bourdon Tube
Non-Sparking
No
Process Temperature Range
-4 Degrees to 150 Degrees F
Dial Face Material
Aluminum
Bezel Gasket Material
Silicone
Dial Color
White
Gauge Case Liquid
Glycerin
Compatible Process Media
Air, Water
Sensor Material
Phosphor Bronze
Includes Mounting Hardware
No
Scale Type
Dual
Movement Material
Stainless Steel
Dry Dampening Feature
None
Cleaned for Oxygen Service
No
Secondary Pressure Range
0 to 100
Pressure Range Type
Pressure
Ambient Operating Temperature Range
-4 Degrees to 150 Degrees F (-20 Degrees to 65 Degrees C)
Includes Calibration Certificate
No
Secondary Scale Units
kPa
Pointer Material
Aluminum
Removable Bezel
Yes
Process Connection Gender
Male
Vibration Resistance
Liquid-Filled
Over-Pressure Limit
25%
Includes Vent Plug
Yes
Bezel Mounting Type
Crimped
Freeze Resistant Movement
No
Maximum Pressure
15
Operating Temperature Range
-4 Degrees to 150 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Secondary Scale Pressure Measurement - Maximum
100 kPa
Compatible with Brand
Universal
IP Rating
IP65
Operating Temperature - Minimum
-4 Degrees F
Process Media Temperature - Maximum
150 Degrees F
Case Liquid
Glycerin
Operating Temperature - Maximum
150 Degrees F
NEMA Enclosure Rating
4
Process Media Temperature - Minimum
-4 Degrees F
Primary Scale Pressure Measurement - Maximum
15 psi
Primary Scale Pressure Measurement - Minimum
0 psi

Description

Lead-Free Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-1.50 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP65, Primary Pressure Range 0 to 15, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Lead-Free Pressure Gauge
