  5. Lead-Free Pressure Gauge, 0 to 15 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

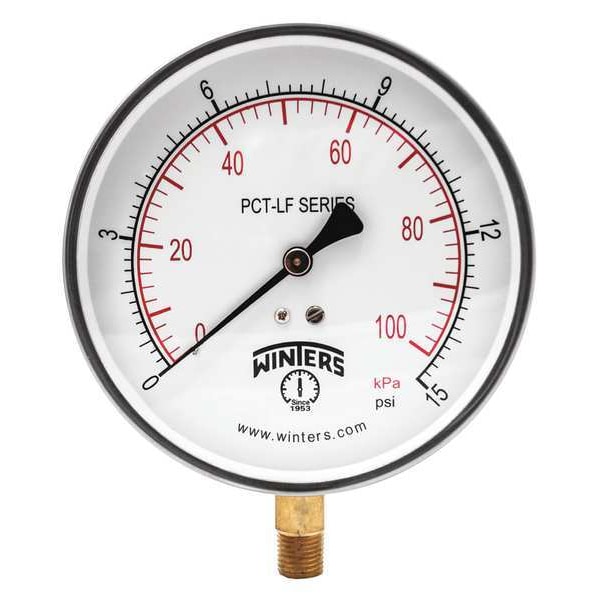

Winters Lead-Free Pressure Gauge, 0 to 15 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location PCT319LF - main

Lead-Free Pressure Gauge, 0 to 15 psi, 4 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PCT319LF

  • Zoro # G9757097

product price:  $26.55
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PCT319LF
Zoro #
G9757097
UPC #
628311250077
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 1/2 in
Case Depth
0.747 in
Manufacturer Warranty Length
5 yr
Case Diameter
4 23/25 in
Nominal Dial Size
4 1/2 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Commercial
Gauge Case Material
304 Stainless Steel
Series
PCT-LF
Lens Material
Plastic
Primary Pressure Range
0 to 15
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
For Use With
Most Commercial Air, Steam Services, Water
Case Color
Metallic
Gauge Special Options
Zero Adjustment Screw
Required Gauge Adapter
No
Gauge Application
Most Commercial Air, Water and Steam Services (with Syphon)
Calibration Certificate Included
No
Characteristics
CRN Registered, Zero Adjustment Screw
Socket Material
Lead Free Brass
Case Material
304 Stainless Steel
NSF Certified
Yes
Wetted Materials
Brass / Bronze
Connection Type
MNPT
Standards
ASME, CRN
Pointer Material
Aluminum
Dry Dampening Feature
None
Scale Type
Single
Dial Face Material
Aluminum
Cleaned for Oxygen Service
No
Sensor Material
Phosphor Bronze
Secondary Scale Units
kPa
Bezel Material
304 Stainless Steel
Vibration Resistance
None
Pressure Gauge Type
Lead-Free Pressure Gauge
Includes Vent Plug
No
Compatible Process Media
Air, Potable Water, Steam, Water
Removable Bezel
No
Includes Mounting Hardware
No
Includes Calibration Certificate
No
Sensor Type
Bourdon Tube
Case Construction
Welded Joint
Pointer Color
Black
Accuracy Scale
Full Scale
Process Temperature Range
-40 Degrees to 200 Degrees F
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F (-40 Degrees to 93 Degrees C)
Pressure Range Type
Pressure
Process Connection Gender
Male
Accuracy Grade
Grade 1A
Field Fillable
No
Over-Pressure Limit
25%
Freeze Resistant Movement
No
Non-Sparking
No
Movement Material
Lead Free Brass
Dial Color
White
Gauge Case Liquid
None
Maximum Pressure
15
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Lead-Free Pressure Gauge, Accuracy +/-1.00 Percent, Gauge Case Material 304 Stainless Steel, Nominal Dial Size 4 1/2 in, Lens Material Plastic, IP/NEMA Rating IP52, Hazardous Location Rating Not Rated, Compatible Process Media Air, Potable Water, Steam, Water, Sensor Material Phosphor Bronze, Socket Material Lead Free Brass, Sensor Type Bourdon Tube, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Bottom, Process Connection Size 1/4 in, Panel-Mountable No
