  5. Lead-Free Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/8 in NPT, Bottom Location, Steel Case Material

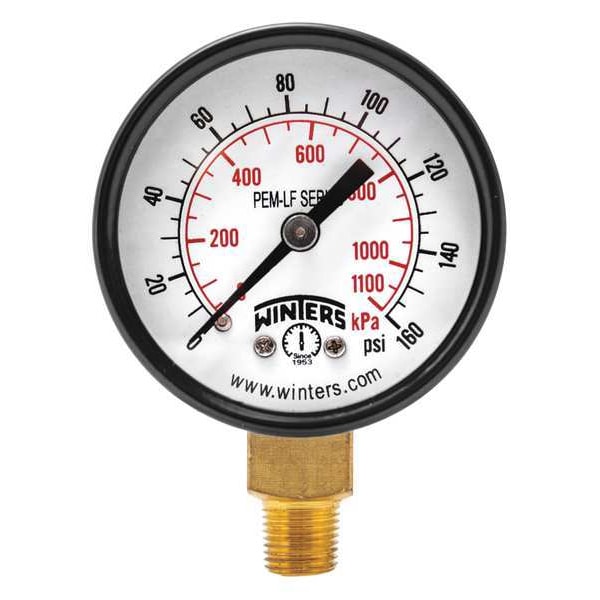

Winters Lead-Free Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/8 in NPT, Bottom Location, Steel Case Material PEM197LF - main

Lead-Free Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/8 in NPT, Bottom Location, Steel Case Material

  • Mfr # PEM197LF

  • Zoro # G9756607

product price:  $11.19
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PEM197LF
Zoro #
G9756607
UPC #
628311202298
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
2 in
Length
2.992"
Nominal Dial Size
2 in
Case Diameter
2.19 in
Manufacturer Warranty Length
5 yr
Case Depth
1.161 in
Nominal Dial Diameter
2 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Gauge Case Material
Steel
Series
PEM-LF
Lens Material
Plastic
Primary Pressure Range
0 to 160
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Characteristics
Friction Bezel Ring
Calibration Certificate Included
No
Gauge Application
General Purpose Gauge for Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tanks, Air Compressors, OEM
For Use With
Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
Required Gauge Adapter
No
Case Color
Black
Case Material
Steel
Socket Material
Lead Free Brass
NSF Certified
Yes
Standards
ANSI/ASME, CRN, NSF
Connection Type
MNPT
Wetted Materials
Brass / Bronze
Process Connection Gender
Male
Vibration Resistance
None
Includes Calibration Certificate
No
Secondary Pressure Range
0 to 1,100
Gauge Case Liquid
None
Includes Vent Plug
No
Pointer Color
Black
Pressure Range Type
Pressure
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Secondary Scale Units
kPa
Sensor Type
Bourdon Tube
Sensor Material
Phosphor Bronze
Movement Material
Stainless Steel
Dry Dampening Feature
None
Case Construction
Welded Joint
Scale Type
Dual
Pointer Material
Aluminum
Cleaned for Oxygen Service
No
Removable Bezel
No
Over-Pressure Limit
25% of Full Scale
Pressure Gauge Type
Lead-Free Pressure Gauge
Dial Face Material
Aluminum
Freeze Resistant Movement
No
Non-Sparking
No
Includes Mounting Hardware
No
Process Temperature Range
-40 Degrees to 150 Degrees F
Case Finish
Painted
Accuracy Scale
Mid-Scale
Field Fillable
No
Dial Color
White
Bezel Material
Steel
Compatible Process Media
Non-Clogging, Non-Corroding, Potable Water
Accuracy Grade
Grade B
Maximum Pressure
160 psi
Operating Temperature Range
-40 Degrees to 150 Degrees F
Process Media Temperature - Maximum
150 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Compatible with Brand
Universal
NEMA Enclosure Rating
5
Secondary Scale Pressure Measurement - Maximum
1,100 kPa
Operating Temperature - Minimum
-40 Degrees F
Case Liquid
None
IP Rating
IP52
Operating Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Maximum
160 psi
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Minimum
0 psi

Description

Lead-Free Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 160, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Lead-Free Pressure Gauge, Liquid-Filled Case No
