  5. Lead-Free Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/8 in NPT, Center Back Location
Winters Lead-Free Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/8 in NPT, Center Back Location PEM1408LF - main

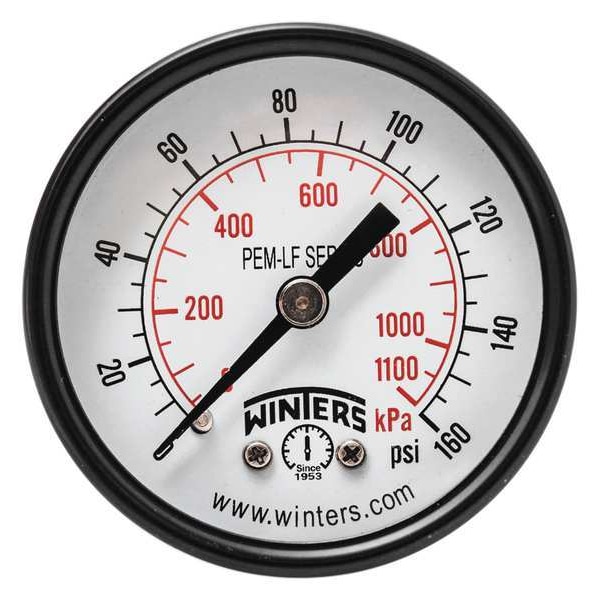

Lead-Free Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/8 in NPT, Center Back Location

  • Mfr # PEM1408LF

  • Zoro # G9756844

product price:  $8.75
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PEM1408LF
Zoro #
G9756844
UPC #
628311202212
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
2 in
Length
1.850"
Manufacturer Warranty Length
5 yr
Case Diameter
2 7/100 in
Nominal Dial Size
2 in
Case Depth
1.079 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Gauge Case Material
Steel
Series
PEM-LF
Lens Material
Plastic
Primary Pressure Range
0 to 160
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
For Use With
Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
Case Color
Black
Characteristics
Friction Bezel Ring
Required Gauge Adapter
No
Gauge Application
General Purpose Gauge for Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tanks, Air Compressors, OEM
Case Material
Steel
Socket Material
Lead Free Brass
NSF Certified
Yes
Wetted Materials
Brass / Bronze
Standards
ANSI/ASME, CRN, NSF
Connection Type
MNPT
Bezel Material
Steel
Freeze Resistant Movement
No
Non-Sparking
No
Includes Vent Plug
No
Sensor Type
Bourdon Tube
Movement Material
Stainless Steel
Dry Dampening Feature
None
Accuracy Grade
Grade B
Over-Pressure Limit
25% of Full Scale
Scale Type
Dual
Removable Bezel
No
Pointer Color
Black
Case Finish
Painted
Cleaned for Oxygen Service
No
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Process Connection Gender
Male
Sensor Material
Phosphor Bronze
Dial Face Material
Aluminum
Process Temperature Range
-40 Degrees to 150 Degrees F
Includes Mounting Hardware
No
Secondary Pressure Range
0 to 1,100
Vibration Resistance
None
Pointer Material
Aluminum
Compatible Process Media
Non-Clogging, Non-Corroding, Potable Water
Pressure Range Type
Pressure
Gauge Case Liquid
None
Case Construction
Welded Joint
Accuracy Scale
Mid-Scale
Pressure Gauge Type
Lead-Free Pressure Gauge
Field Fillable
No
Dial Color
White
Secondary Scale Units
kPa
Includes Calibration Certificate
No
Maximum Pressure
160 psi
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Lead-Free Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Nominal Dial Size 2 in, Lens Material Plastic, IP/NEMA Rating IP52, Hazardous Location Rating Not Rated, Compatible Process Media Non-Clogging, Non-Corroding, Potable Water, Sensor Material Phosphor Bronze, Socket Material Lead Free Brass, Sensor Type Bourdon Tube, Process Connection Type NPT, Process Connection Gender Male, Process Connection Location Center Back, Process Connection Size 1/8 in, Panel-Mountable No
