  5. Lead-Free Pressure Gauge, 0 to 300 psi, 4 in Dial, 1/4 in NPT, Bottom Location

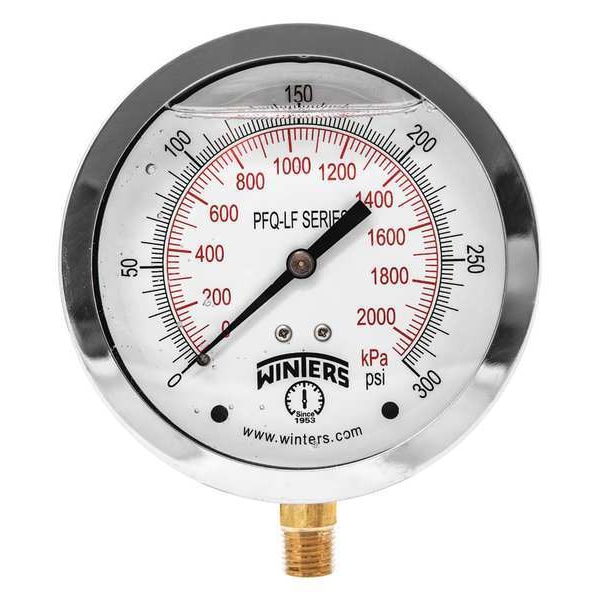

Winters Lead-Free Pressure Gauge, 0 to 300 psi, 4 in Dial, 1/4 in NPT, Bottom Location PFQ714LF - main

Lead-Free Pressure Gauge, 0 to 300 psi, 4 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PFQ714LF

  • Zoro # G9756415

product price:  $54.99
/ea

Key Features

Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PFQ714LF
Zoro #
G9756415
UPC #
628311266641
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 in
Case Depth
1.173 in
Nominal Dial Size
4 in
Manufacturer Warranty Length
5 yr
Case Diameter
3.917 in
Nominal Dial Diameter
4 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps
Gauge Case Material
304 Stainless Steel
Series
PFQ-LF
Lens Material
Plastic
Primary Pressure Range
0 to 300
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Gauge Filled With
Glycerin
Characteristics
Crimp-On Bezel, CRN Registered, Pulsation Resistant, Restricted Orifice
For Use With
Ideal for Plumbing, Heating, Air Conditioning, Pumps, Compressors, Pneumatic Equipment
Gauge Application
Ideal for Pumps, Compressors, Hydraulic Presses, Machinery, Pneumatic Equipment and Motors in Harsh Environments
Gauge Special Options
Restricted Orifice
Required Gauge Adapter
No
Case Color
Metallic
Calibration Certificate Included
No
Case Material
304 Stainless Steel
Socket Material
Lead Free Brass
NSF Certified
Yes
Standards
ASME, CRN
Wetted Materials
Brass / Bronze
Connection Type
MNPT
Includes Vent Plug
Yes
Sensor Material
Phosphor Bronze
Removable Bezel
Yes
Process Connection Gender
Male
Gauge Case Liquid
Glycerin
Pointer Color
Black
Secondary Pressure Range
0 to 2,100
Bezel Gasket Material
Silicone
Freeze Resistant Movement
No
Case Construction
Welded Joint
Vibration Resistance
Liquid-Filled
Bezel Mounting Type
Crimped
Secondary Scale Units
kPa
Bezel Material
304 Stainless Steel
Includes Calibration Certificate
No
Over-Pressure Limit
25%
Field Fillable
No
Non-Sparking
No
Pressure Gauge Type
Lead-Free Pressure Gauge
Movement Material
Lead Free Brass
Ambient Operating Temperature Range
-4 Degrees to 150 Degrees F (-20 Degrees to 65 Degrees C)
Sensor Type
Bourdon Tube
Pointer Material
Aluminum
Dial Face Material
Aluminum
Dry Dampening Feature
None
Pressure Range Type
Pressure
Process Temperature Range
-4 Degrees to 150 Degrees F
Dial Color
White
Cleaned for Oxygen Service
No
Scale Type
Dual
Includes Mounting Hardware
No
Accuracy Scale
Full Scale
Maximum Pressure
300
Operating Temperature Range
-4 Degrees to 150 Degrees F
Operating Temperature - Minimum
-4 Degrees F
Primary Scale Pressure Measurement - Maximum
300 psi
Secondary Scale Pressure Measurement - Maximum
2,100 kPa
NEMA Enclosure Rating
4
IP Rating
IP65
Secondary Scale Pressure Measurement - Minimum
0 kPa
Case Liquid
Glycerin
Operating Temperature - Maximum
150 Degrees F
Process Media Temperature - Maximum
150 Degrees F
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Minimum
-4 Degrees F

Description

Lead-Free Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-1.50 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP65, Primary Pressure Range 0 to 300, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Lead-Free Pressure Gauge
