  5. Lead-Free Pressure Gauge, 0 to 600 psi, 4 in Dial, 1/4 in NPT, Bottom Location

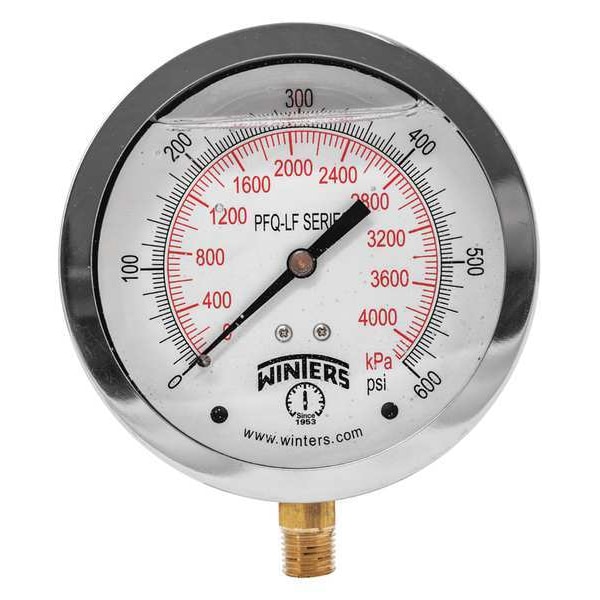

Winters Lead-Free Pressure Gauge, 0 to 600 psi, 4 in Dial, 1/4 in NPT, Bottom Location PFQ716LF - main

Lead-Free Pressure Gauge, 0 to 600 psi, 4 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PFQ716LF

  • Zoro # G9756397

product price:  $54.99
/ea

Key Features

Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PFQ716LF
Zoro #
G9756397
UPC #
628311266665
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
4 in
Case Depth
1.173 in
Manufacturer Warranty Length
5 yr
Nominal Dial Size
4 in
Case Diameter
3.917 in
Nominal Dial Diameter
4 in

Details

Item
Lead-Free Pressure Gauge
Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps
Gauge Case Material
304 Stainless Steel
Series
PFQ-LF
Lens Material
Plastic
Primary Pressure Range
0 to 600
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
Required Gauge Adapter
No
Gauge Application
Ideal for Pumps, Compressors, Hydraulic Presses, Machinery, Pneumatic Equipment and Motors in Harsh Environments
Characteristics
Crimp-On Bezel, CRN Registered, Pulsation Resistant, Restricted Orifice
For Use With
Ideal for Plumbing, Heating, Air Conditioning, Pumps, Compressors, Pneumatic Equipment
Gauge Special Options
Restricted Orifice
Case Color
Metallic
Gauge Filled With
Glycerin
Socket Material
Lead Free Brass
Case Material
304 Stainless Steel
NSF Certified
Yes
Connection Type
MNPT
Standards
ASME, CRN
Wetted Materials
Brass / Bronze
Vibration Resistance
Liquid-Filled
Includes Vent Plug
Yes
Pressure Range Type
Pressure
Cleaned for Oxygen Service
No
Dial Color
White
Ambient Operating Temperature Range
-4 Degrees to 150 Degrees F (-20 Degrees to 65 Degrees C)
Secondary Pressure Range
0 to 4140
Scale Type
Dual
Sensor Material
Phosphor Bronze
Process Connection Gender
Male
Dry Dampening Feature
None
Case Construction
Welded Joint
Bezel Gasket Material
Silicone
Secondary Scale Units
kPa
Process Temperature Range
-4 Degrees to 150 Degrees F
Sensor Type
Bourdon Tube
Accuracy Scale
Full Scale
Gauge Case Liquid
Glycerin
Includes Calibration Certificate
No
Dial Face Material
Aluminum
Removable Bezel
Yes
Movement Material
Lead Free Brass
Bezel Material
304 Stainless Steel
Pointer Material
Aluminum
Includes Mounting Hardware
No
Over-Pressure Limit
25%
Non-Sparking
No
Pressure Gauge Type
Lead-Free Pressure Gauge
Freeze Resistant Movement
No
Pointer Color
Black
Bezel Mounting Type
Crimped
Field Fillable
No
Maximum Pressure
600
Operating Temperature Range
-4 Degrees to 150 Degrees F
Process Media Temperature - Minimum
-4 Degrees F
Secondary Scale Pressure Measurement - Maximum
4,140 kPa
Operating Temperature - Minimum
-4 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
NEMA Enclosure Rating
4
Compatible with Brand
Universal
Operating Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Maximum
600 psi
Case Liquid
Glycerin
Process Media Temperature - Maximum
150 Degrees F
IP Rating
IP65
Secondary Scale Pressure Measurement - Minimum
0 kPa

Description

Lead-Free Pressure Gauge, Nominal Dial Size 4 in, Accuracy +/-1.50 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP65, Primary Pressure Range 0 to 600, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Lead-Free Pressure Gauge
