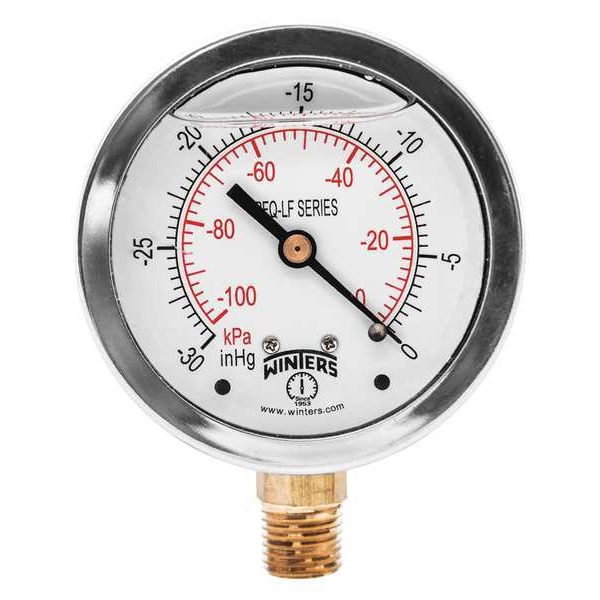

Winters Lead-Free Vacuum Gauge, 30 to 0 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location PFQ801LF - main

Lead-Free Vacuum Gauge, 30 to 0 psi, 2 1/2 in Dial, 1/4 in NPT, Bottom Location

  • Mfr # PFQ801LF

  • Zoro # G9756363

product price:  $26.19
/ea

Key Features

Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PFQ801LF
Zoro #
G9756363
UPC #
628311266009
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 1/2 in
Case Depth
33 mm
Manufacturer Warranty Length
5 yr
Nominal Dial Size
2 1/2 in
Case Diameter
67.1 mm
Nominal Dial Diameter
2 1/2 in

Details

Item
Lead-Free Vacuum Gauge
Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Type
NPT
Application
Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps
Gauge Case Material
304 Stainless Steel
Series
PFQ-LF
Lens Material
Plastic
Primary Pressure Range
30 to 0
Primary Scale Units
in Hg
IP/NEMA Rating
IP65
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Panel-Mountable
No
Blowout Safety Back
No
Calibration Certificate Included
No
For Use With
Ideal for Plumbing, Heating, Air Conditioning, Pumps, Compressors, Pneumatic Equipment
Characteristics
Crimp-On Bezel, CRN Registered, Pulsation Resistant, Restricted Orifice
Gauge Special Options
Restricted Orifice
Gauge Application
Ideal for Pumps, Compressors, Hydraulic Presses, Machinery, Pneumatic Equipment and Motors in Harsh Environments
Case Color
Metallic
Required Gauge Adapter
No
Gauge Filled With
Glycerin
Socket Material
Lead Free Brass
Case Material
304 Stainless Steel
NSF Certified
Yes
Connection Type
MNPT
Standards
ASME, CRN
Wetted Materials
Brass / Bronze
Bezel Material
304 Stainless Steel
Pointer Color
Black
Cleaned for Oxygen Service
No
Vibration Resistance
Liquid-Filled
Removable Bezel
Yes
Sensor Type
Bourdon Tube
Pressure Range Type
Vacuum
Compatible Process Media
Air, Water
Dial Face Material
Aluminum
Over-Pressure Limit
25%
Includes Vent Plug
Yes
Field Fillable
No
Dry Dampening Feature
None
Movement Material
Stainless Steel
Dial Color
White
Bezel Mounting Type
Crimped
Pressure Gauge Type
Lead-Free Pressure Gauge
Freeze Resistant Movement
No
Case Construction
Welded Joint
Secondary Pressure Range
-101 to 0
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Accuracy Scale
Full Scale
Process Temperature Range
-40 Degrees to 150 Degrees F
Sensor Material
Bronze
Pointer Material
Aluminum
Includes Mounting Hardware
No
Bezel Gasket Material
Silicone
Gauge Case Liquid
Glycerin
Scale Type
Dual
Includes Calibration Certificate
No
Process Connection Gender
Male
Non-Sparking
No
Secondary Scale Units
kPa
Operating Temperature Range
-4 Degrees to 150 Degrees F
Primary Scale Pressure Measurement - Minimum
0 in Hg
Primary Scale Vacuum Measurement - Maximum
30 in Hg
Primary Scale Pressure Measurement - Maximum
30 in Hg
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Case Liquid
Glycerin
Operating Temperature - Maximum
150 Degrees F
Secondary Scale Vacuum Measurement - Minimum
-101 kPa
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Vacuum Measurement - Minimum
0 in Hg
Secondary Scale Vacuum Measurement - Maximum
0 kPa
Secondary Scale Pressure Measurement - Maximum
-100 kPa
Process Media Temperature - Maximum
150 Degrees F
Compatible with Brand
Universal
NEMA Enclosure Rating
4
IP Rating
IP65

Description

Lead-Free Vacuum Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-1.50 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP65, Primary Pressure Range 30 to 0, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Lead-Free Pressure Gauge
