  5. Panel-Mount Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/8 in NPT, Center Back Location

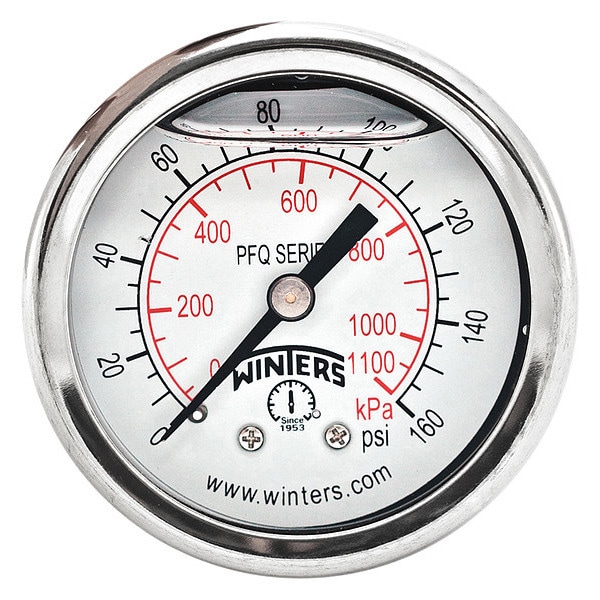

Winters Panel-Mount Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/8 in NPT, Center Back Location PFQ2438-DRY-2FF - main

Panel-Mount Pressure Gauge, 0 to 160 psi, 2 in Dial, 1/8 in NPT, Center Back Location

  • Mfr # PFQ2438-DRY-2FF

  • Zoro # G1605211

product price:  $13.19
/ea

Key Features

Accuracy
+/-2.5%
Process Connection Location
Center Back
Process Connection Size
1/8 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PFQ2438-DRY-2FF
Zoro #
G1605211
UPC #
-
Country of Origin
China

Dimensions

Process Connection Size
1/8 in
Dial Size (In.)
2 in
Manufacturer Warranty Length
5 yr
Nominal Dial Size
2 in
Case Diameter
2.035 in
Flange Diameter
2 in
Case Depth
0.92 in
Nominal Dial Diameter
2 in

Details

Item
Panel-Mount Pressure Gauge
Accuracy
+/-2.5%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps
Gauge Case Material
304 Stainless Steel
Series
PFQ
Lens Material
Polycarbonate
Primary Pressure Range
0 to 160
Primary Scale Units
psi
IP/NEMA Rating
IP65
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
Socket Material
Brass
Gauge Primary Range Smallest Graduation
10/100
Smallest Graduation
2 psi/20 kPa
Gauge Special Options
Heavy Duty
Case Color
Metallic
For Use With
Media Compatible with Bronze
Gauge Secondary Range Values
0 to 1100
Features
Ring Terminal
Standards
ASME, CRN
Connection Type
MNPT
Calibration Certificate Included
No
Gauge Primary Range Numbered Graduations
20/200
Case Material
304 Stainless Steel
Process Connection Gender
Male
Dial Color
White
Bezel Mounting Type
Crimped
Sensor Material
Phosphor Bronze
Includes Calibration Certificate
No
Movement Material
Brass OT59
Compatible Process Media
Air, Water
Dial Face Material
Aluminum
Pointer Color
Black
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F (-40 Degrees to 93 Degrees C)
Cleaned for Oxygen Service
No
Accuracy Scale
Full Scale
Non-Sparking
No
Freeze Resistant Movement
No
Bezel Material
304 Stainless Steel
Dry Dampening Feature
None
Vibration Resistance
Field-Fillable
Includes Vent Plug
Yes
Pointer Material
Aluminum
Secondary Scale Units
kPa
Gauge Case Liquid
None
Over-Pressure Limit
25%
Removable Bezel
Yes
Includes Mounting Hardware
No
Secondary Pressure Range
0 to 1,100
Process Temperature Range
-40 Degrees to 200 Degrees F
Case Construction
Welded Joint
Scale Type
Dual
Pressure Gauge Type
Industrial Pressure Gauge
Bezel Gasket Material
Silicone
Sensor Type
Bourdon Tube
Field Fillable
Yes
Pressure Range Type
Pressure
Operating Temperature Range
-40 Degrees to 200 Degrees F
Process Media Temperature - Maximum
200 Degrees F
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Maximum
160 psi
Case Liquid
None
IP Rating
IP65
Secondary Scale Pressure Measurement - Minimum
0 kPa
Process Media Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
4
Operating Temperature - Minimum
-40 Degrees F
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Maximum
1,100 kPa
Operating Temperature - Maximum
200 Degrees F

Description

Panel-Mount Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-2.5 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/8 in, Field Fillable Yes, Process Connection Location Center Back, Case Color Metallic, IP/NEMA Rating IP65, Primary Pressure Range 0 to 160, Dry Dampening Feature None, Vibration Resistance Field-Fillable, Dial Color White
