  5. Panel-Mount Pressure Gauge, 0 to 200 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location

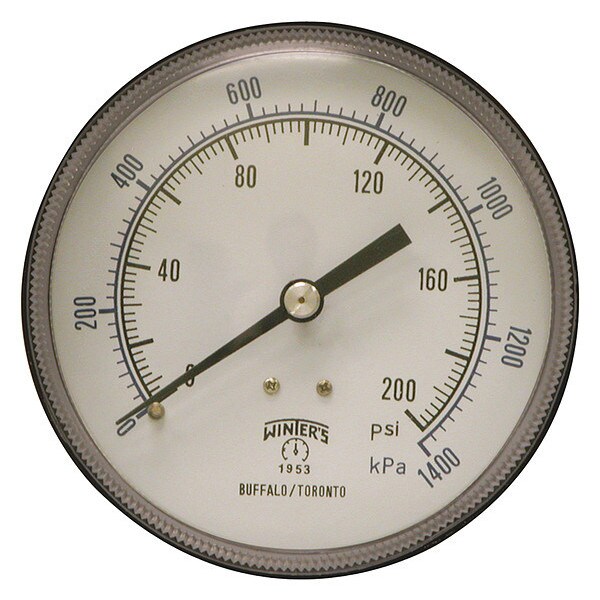

Winters Panel-Mount Pressure Gauge, 0 to 200 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location P1S566 - main

Panel-Mount Pressure Gauge, 0 to 200 psi, 3 1/2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # P1S566

  • Zoro # G1605561

product price:  $31.19
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
3 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
P1S566
Zoro #
G1605561
UPC #
628311255270
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
3 1/2 in
Bolt Circle Diameter
4.1 in
Manufacturer Warranty Length
5 yr
Case Diameter
4.03 in
Nominal Dial Size
3 1/2 in
Case Depth
1.5 in
Flange Diameter
4.8 in
Nominal Dial Diameter
3 1/2 in

Details

Item
Panel-Mount Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Commercial, Refrigeration, HVAC/R, Plumbing
Gauge Case Material
Steel
Series
P1S 100
Lens Material
Glass
Primary Pressure Range
0 to 200
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
Gauge Primary Range Numbered Graduations
50/200
Connection Type
MNPT
Case Color
Black
Gauge Special Options
Heavy Duty
Socket Material
Brass
Case Material
Steel
Standards
ANSI/ASME, CRN
For Use With
Media Compatible with Bronze
Gauge Primary Range Smallest Graduation
10/100
Smallest Graduation
2 psi/20 kPa
Gauge Secondary Range Values
0 to 1380
Calibration Certificate Included
No
Movement Material
Brass
Process Connection Gender
Male
Panel Mount Characteristics
3 0.200 in Dia Holes on 4.10 in Dia Bolt Circle
Secondary Scale Units
kPa
Secondary Pressure Range
0 to 1,400
Accuracy Scale
Full Scale
Bezel Material
Brass
Gauge Case Liquid
None
Sensor Material
Phosphor Bronze
Case Construction
Welded Joint
Dry Dampening Feature
None
Ambient Operating Temperature Range
-40 Degrees to 200 Degrees F (-40 Degrees to 93 Degrees C)
Pointer Color
Black
Includes Calibration Certificate
No
Dial Face Material
Aluminum
Freeze Resistant Movement
No
Field Fillable
No
Scale Type
Dual
Removable Bezel
No
Vibration Resistance
None
Case Finish
Polished
Includes Mounting Hardware
Yes
Pressure Gauge Type
Industrial Pressure Gauge
Pressure Range Type
Pressure
Over-Pressure Limit
25% of Full Scale
Non-Sparking
No
Accuracy Grade
ASME B40.100 Grade 1A
Process Temperature Range
-40 Degrees to 200 Degrees F
Dial Color
White
Mounting Hardware Included
Yes
Includes Vent Plug
No
Cleaned for Oxygen Service
No
Sensor Type
Bourdon Tube
Pointer Material
Aluminum
Operating Temperature Range
-40 Degrees to 200 Degrees F
Process Media Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Operating Temperature - Minimum
-40 Degrees F
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Maximum
1,400 kPa
Process Media Temperature - Maximum
200 Degrees F
Primary Scale Pressure Measurement - Maximum
200 psi
NEMA Enclosure Rating
5
Operating Temperature - Maximum
200 Degrees F
IP Rating
IP52
Case Liquid
None

Description

Panel-Mount Pressure Gauge, Nominal Dial Size 3 1/2 in, Accuracy +/-1.0 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 200, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Industrial Pressure Gauge
