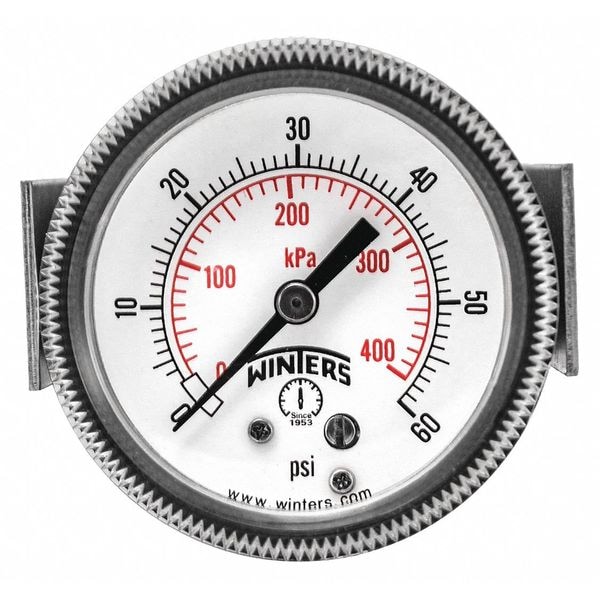

Winters Panel-Mount Pressure Gauge, 0 to 60 psi, 2 in Dial, 1/4 in NPT, Center Back Location P9U901405UC - main

Panel-Mount Pressure Gauge, 0 to 60 psi, 2 in Dial, 1/4 in NPT, Center Back Location

  • Mfr # P9U901405UC

  • Zoro # G7558715

product price:  $11.69
/ea

Key Features

Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Size
1/4 in
Process Connection Type
NPT
Dial Size (In.)
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
P9U901405UC
Zoro #
G7558715
UPC #
628311209235
Country of Origin
China

Dimensions

Process Connection Size
1/4 in
Dial Size (In.)
2 in
For Panel Cut-Out Size
2.11 in
Manufacturer Warranty Length
5 yr
Nominal Dial Size
2 in
Case Diameter
2.271 in
Case Depth
1.145 in
Nominal Dial Diameter
2 in

Details

Item
Panel-Mount Pressure Gauge
Accuracy
+/-2-1-2%
Process Connection Location
Center Back
Process Connection Type
NPT
Application
Compressors, Panels, Water Pressure Testing, Severe Ambient Conditions
Gauge Case Material
Steel
Series
P9U 90
Lens Material
Acrylic
Primary Pressure Range
0 to 60
Primary Scale Units
psi
IP/NEMA Rating
IP52
Liquid-Filled Case
No
Hazardous Location Rating
Not Rated
Panel-Mountable
Yes
Blowout Safety Back
No
Gauge Secondary Range Values
0 to 410
Connection Location
Center Back
Gauge Application
U-Clamp
Case Material
Steel
Socket Material
Brass
Calibration Certificate Included
No
Case Color
Black
Standards
ANSI/ASME, ASME, CRN
Connection Type
MNPT
Accuracy Scale
Mid-Scale
Field Fillable
No
Vibration Resistance
Dry Case Vibration-Dampened
Dry Dampening Feature
Flutterless Pointer with Dampened Movement
Pointer Material
Aluminum
Freeze Resistant Movement
No
Movement Material
Brass
Non-Sparking
No
Mounting Hardware Included
Yes
Pressure Gauge Type
Process Pressure Gauge
Cleaned for Oxygen Service
No
Over-Pressure Limit
25% of Full Scale
Pointer Color
Black
Removable Bezel
No
Dial Color
White
Accuracy Grade
ASME B40.100 Grade A
Scale Type
Dual
Gauge Case Liquid
None
Sensor Material
Phosphor Bronze
Sensor Type
Bourdon Tube
Case Construction
Welded Joint
Dial Face Material
Aluminum
Process Temperature Range
-40 Degrees to 150 Degrees F
Pressure Range Type
Pressure
Secondary Pressure Range
0 to 410
Includes Vent Plug
No
Process Connection Gender
Male
Includes Calibration Certificate
No
Compatible Process Media
Non-Clogging, Non-Corroding
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C
Includes Mounting Hardware
Yes
Case Finish
Painted
Secondary Scale Units
kPa
Operating Temperature - Minimum
-40 Degrees F
IP Rating
IP52
Process Media Temperature - Minimum
-40 Degrees F
Compatible with Brand
Universal
Primary Scale Pressure Measurement - Minimum
0 psi
Process Media Temperature - Maximum
150 Degrees F
NEMA Enclosure Rating
5
Case Liquid
None
Secondary Scale Pressure Measurement - Maximum
410 kPa
Operating Temperature - Maximum
150 Degrees F
Primary Scale Pressure Measurement - Maximum
60 psi
Secondary Scale Pressure Measurement - Minimum
0 kPa

Description

Panel-Mount Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-2-1-2 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Acrylic, Process Connection Size 1/4 in, Field Fillable No, For Panel Cut-Out Size 2.11 in, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 60, Dry Dampening Feature Flutterless Pointer with Dampened Movement, Vibration Resistance Dry Case Vibration-Dampened
