  5. Pressure Gauge, 0 to 100 psi, 4 1/2 in Dial, 1/4 in NPT Bottom Location

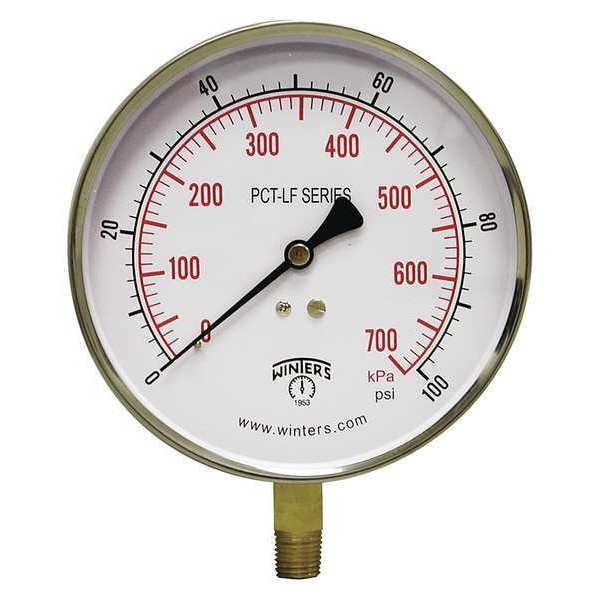

Winters Pressure Gauge, 0 to 100 psi, 4 1/2 in Dial, 1/4 in NPT Bottom Location PCT323LF - main

Pressure Gauge, 0 to 100 psi, 4 1/2 in Dial, 1/4 in NPT Bottom Location

  • Mfr # PCT323LF

  • Zoro # G6077197

product price:  $30.19
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in NPT
Dial Size (In.)
4 1/2 in
Gauge Case Material
304 Stainless Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PCT323LF
Zoro #
G6077197
UPC #
628311250053
Country of Origin
China

Dimensions

Process Connection Size
1/4 in NPT
Dial Size (In.)
4 1/2 in
Nominal Dial Size
4 1/2 in
Case Diameter
5.9 in
Manufacturer Warranty Length
5 yr

Details

Item
Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Gauge Case Material
304 Stainless Steel
Series
PCT-LF
Lens Material
Acrylic
Primary Pressure Range
0 to 100
Primary Scale Units
psi
Liquid-Filled Case
No
Panel-Mountable
No
Gauge Special Options
Zero Adjustment Screw
Calibration Certificate Included
No
Characteristics
CRN Registered, Zero Adjustment Screw
Gauge Application
Most Commercial Air, Water and Steam Services (with Syphon)
Case Color
Silver
For Use With
Most Commercial Air, Water, and Steam Services That Require A 1% Full-Scale Accuracy
Socket Material
Brass
Pressure Range
0 to 100 psi/kPa
Case Material
304 Stainless Steel
NSF Certified
Yes
Wetted Materials
Brass / Bronze
Connection Type
MNPT
Standards
CRN Registered
Maximum Pressure
100 psi
Pressure Range Type
Pressure Gauge
Sensor Material
Bronze
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Pressure Gauge, Accuracy +/-1.0 Percent, Gauge Case Material 304 Stainless Steel, Lens Material Acrylic, Socket Material Brass
