  5. Pressure Gauge, 0 to 160 psi, 1 1/2 in Dial, 1/8 in NPT Center Back Location, Steel Case Material

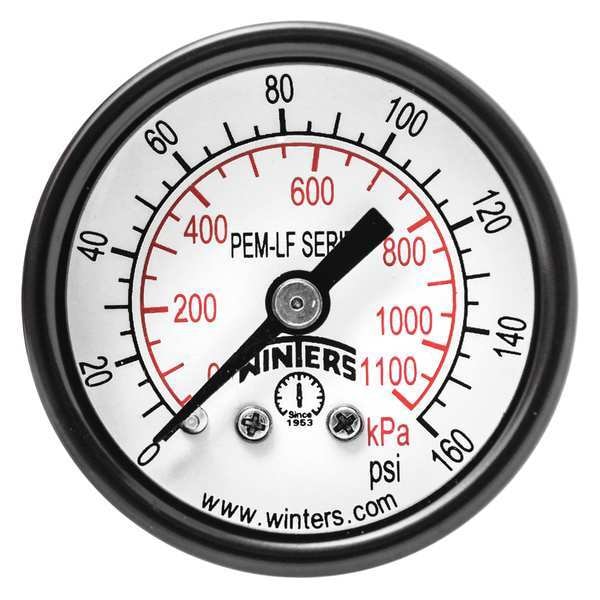

Winters Pressure Gauge, 0 to 160 psi, 1 1/2 in Dial, 1/8 in NPT Center Back Location, Steel Case Material PEM1421LF - main

Pressure Gauge, 0 to 160 psi, 1 1/2 in Dial, 1/8 in NPT Center Back Location, Steel Case Material

  • Mfr # PEM1421LF

  • Zoro # G9756792

product price:  $14.29
/ea

Key Features

Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Process Connection Size
1/8 in NPT
Dial Size (In.)
1 1/2 in
Gauge Case Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PEM1421LF
Zoro #
G9756792
UPC #
628311202052
Country of Origin
China

Dimensions

Process Connection Size
1/8 in NPT
Dial Size (In.)
1 1/2 in
Length
1.515"
Case Diameter
1.660 in
Nominal Dial Size
1 1/2 in
Manufacturer Warranty Length
5 yr

Details

Item
Pressure Gauge
Accuracy
+/-3-2-3%
Process Connection Location
Center Back
Gauge Case Material
Steel
Series
PEM-LF
Lens Material
Polycarbonate
Primary Pressure Range
0 to 160
Primary Scale Units
psi
Liquid-Filled Case
No
Panel-Mountable
No
Gauge Application
General Purpose Gauge for Plumbing, Heating, Air Conditioning, Pneumatic, Hydraulic, Water Tanks, Air Compressors, OEM
For Use With
Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
Case Color
Black
Characteristics
Friction Bezel Ring
Required Gauge Adapter
No
Calibration Certificate Included
No
Socket Material
Brass
Pressure Range
0 to 160 psi/kPa
Case Material
Steel
NSF Certified
Yes
Wetted Materials
Brass / Bronze
Standards
CRN Registered
Connection Type
MNPT
Sensor Material
Bronze
Maximum Pressure
160 psi
Pressure Range Type
Pressure Gauge
Operating Temperature Range
-40 Degrees to 150 Degrees F

Description

Pressure Gauge, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Lens Material Polycarbonate, Socket Material Brass
