Shop WINTERS

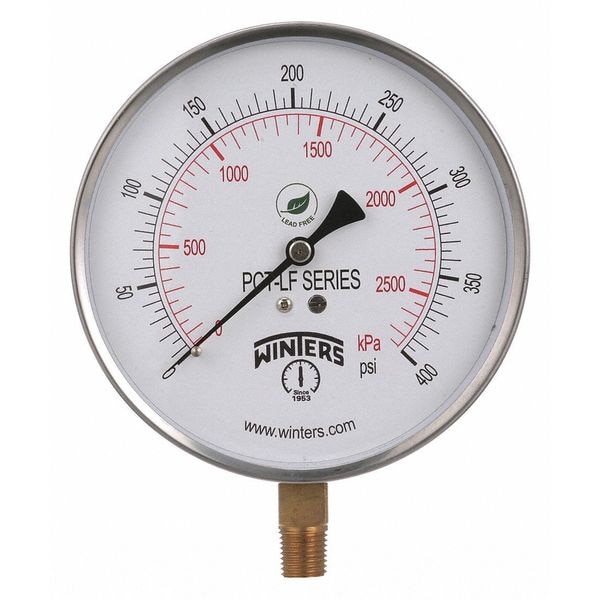

Pressure Gauge, 0 to 400 psi, 4 1/2 in Dial, 1/4 in NPT Bottom Location

  • Mfr # PCT327LF

  • Zoro # G9757063

product price:
$
31.79
/ea

Key Features

Accuracy
+/-1.0%
Process Connection Location
Bottom
Process Connection Size
1/4 in NPT
Dial Size (In.)
4 1/2 in
Gauge Case Material
304 Stainless Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PCT327LF
Zoro #
G9757063
UPC #
628311250145
Country of Origin
China

Dimensions

Process Connection Size
1/4 in NPT
Dial Size (In.)
4 1/2 in
Nominal Dial Size
4 1/2 in
Case Diameter
5.9 in
Manufacturer Warranty Length
5 yr

Details

Item
Pressure Gauge
Accuracy
+/-1.0%
Process Connection Location
Bottom
Gauge Case Material
304 Stainless Steel
Series
PCT-LF
Lens Material
Acrylic
Primary Pressure Range
0 to 400
Primary Scale Units
psi
Liquid-Filled Case
No
Panel-Mountable
No
For Use With
Most Commercial Air, Steam Services, Water
Characteristics
CRN Registered, Zero Adjustment Screw
Gauge Application
Most Commercial Air, Water and Steam Services (with Syphon)
Gauge Special Options
Zero Adjustment Screw
Case Color
Silver
Calibration Certificate Included
No
Required Gauge Adapter
No
Case Material
304 Stainless Steel
Socket Material
Brass
Pressure Range
0 to 400 psi/kPa
NSF Certified
Yes
Connection Type
MNPT
Standards
CRN Registered
Wetted Materials
Brass / Bronze
Maximum Pressure
400
Pressure Range Type
Pressure Gauge
Sensor Material
Bronze
Operating Temperature Range
-40 Degrees to 200 Degrees F

Description

Pressure Gauge, Accuracy +/-1.0 Percent, Gauge Case Material 304 Stainless Steel, Lens Material Acrylic, Socket Material Brass
