  5. Pressure Gauge, 0 to 60 psi, 2 1/2 in Dial, 1 1/2 in Tri-Clamp, Bottom Location

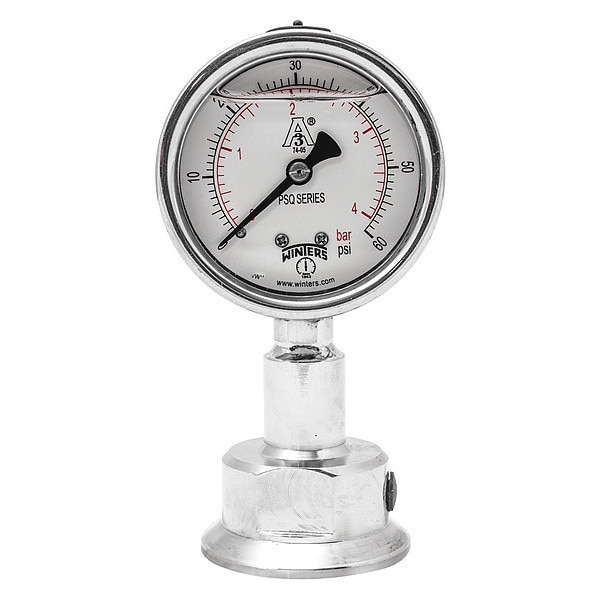

Winters Pressure Gauge, 0 to 60 psi, 2 1/2 in Dial, 1 1/2 in Tri-Clamp, Bottom Location PSQ15803 - main

Pressure Gauge, 0 to 60 psi, 2 1/2 in Dial, 1 1/2 in Tri-Clamp, Bottom Location

  • Mfr # PSQ15803

  • Zoro # G1605543

product price:  $126.99
/ea
Free Shipping & Returns

Key Features

Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Size
1 1/2 in
Process Connection Type
Tri-Clamp
Dial Size (In.)
2 1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PSQ15803
Zoro #
G1605543
UPC #
628311263077
Country of Origin
China

Dimensions

Process Connection Size
1 1/2 in
Dial Size (In.)
2 1/2 in
Nominal Dial Size
2 1/2 in
Case Diameter
63.6 mm
Case Depth
32.4 mm
Manufacturer Warranty Length
5 yr
Nominal Dial Diameter
2 1/2 in

Details

Item
Pressure Gauge
Accuracy
+/-1.50%
Process Connection Location
Bottom
Process Connection Type
Tri-Clamp
Application
Beverage
Gauge Case Material
304 Stainless Steel
Series
PSQ
Lens Material
Polycarbonate
Primary Pressure Range
0 to 60
Primary Scale Units
psi
IP/NEMA Rating
IP65, NEMA 4X
Liquid-Filled Case
Yes
Hazardous Location Rating
Not Rated
Blowout Safety Back
No
Gauge Secondary Range Values
0 to 4
Gauge Primary Range Numbered Graduations
10/100
Socket Material
316 Stainless Steel
Calibration Certificate Included
No
Case Material
304 Stainless Steel
Gauge Primary Range Smallest Graduation
5/50
Smallest Graduation
1 psi/10 kPa
Gauge Filled With
Glycerin
For Use With
Media Compatible with 316L Stainless Steel
Gauge Special Options
Heavy Duty
Standards
3A 74-06 Certified, CRN Registered, RoHS
Connection Type
Triclamp
Features
3-A Dairy Approved Materials, Electro Polished Finish
Case Color
Metallic
Field Fillable
Yes
Over-Pressure Limit
25%
Removable Bezel
No
Pressure Range Type
Pressure
Includes Vent Plug
No
Gauge Case Liquid
Glycerin
Secondary Pressure Range
0 to 4
Compatible Process Media
Air, Beverage, Dairy, Food, Gas, Liquid, Pasty or Powdery Media
Cleaned for Oxygen Service
No
Sensor Material
316L Stainless Steel
Vibration Resistance
Liquid-Filled
Includes Calibration Certificate
No
Ambient Operating Temperature Range
40 Degrees to 150 Degrees F
Secondary Pressure Scale Color
Red
Process Temperature Range
0 Degrees to 250 Degrees F
Bezel Material
304 Stainless Steel
Primary Scale Minor Graduations
5, 50
Movement Material
304 Stainless Steel
Primary Scale Numeric Increments
10, 100
Secondary Scale Units
bar
Dial Face Material
Aluminum
Case Finish
Polished
Dry Dampening Feature
None
Dial Color
White
Pointer Characteristics
Adjustable Micrometer Pointer
Adjustable Pointer
Adjustable Micrometer Pointer
Freeze Resistant Movement
No
Pressure Gauge Type
Sanitary Pressure Gauge
Sensor Type
Bourdon Tube
Operating Temperature Range
40 Degrees to 150 Degrees F
Process Media Temperature - Maximum
250 Degrees F
Secondary Scale Pressure Measurement - Maximum
4 bar
Secondary Scale Pressure Measurement - Minimum
0 bar
Primary Scale Pressure Measurement - Minimum
0 psi
NEMA Enclosure Rating
4X
Primary Scale Vacuum Measurement - Maximum
60 psi
Primary Scale Pressure Measurement - Maximum
60 psi
Secondary Scale Color
Red
Case Liquid
Glycerin
Operating Temperature - Maximum
150 Degrees F
Primary Scale Vacuum Measurement - Minimum
0 psi
IP Rating
IP65
Resistance Properties
Corrosion Resistant, Dust Resistant, Water Resistant
Process Media Temperature - Minimum
0 Degrees F
Operating Temperature - Minimum
40 Degrees F

Description

Pressure Gauge,2-1/2" Dial Size,Silver
