  9. Vacuum Gauge, 1-1/2in, 30in. Hg Vac to 0

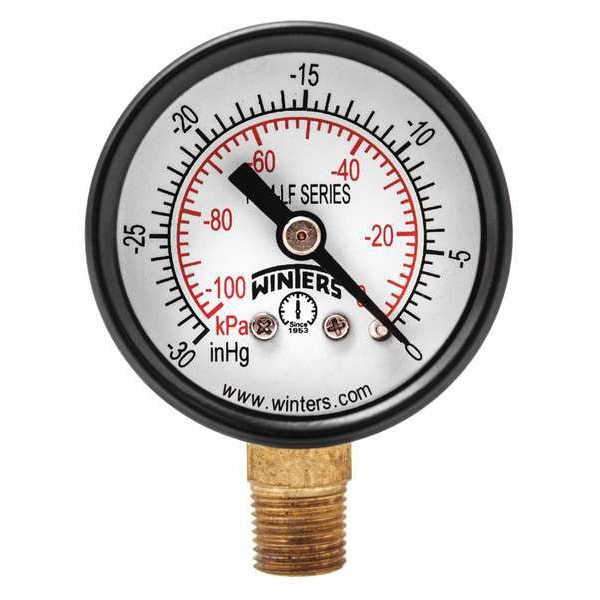

Winters Vacuum Gauge, 1-1/2in, 30in. Hg Vac to 0 PEM1297LF - main

Vacuum Gauge, 1-1/2in, 30in. Hg Vac to 0

  • Mfr # PEM1297LF

  • Zoro # G9757045

product price: $14.99
/ea

Key Features

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
Lead Free
Liquid Filled
No
Gauge Nominal Dial Size
1 1/2 in
Basic Gauge Case Material
Steel
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PEM1297LF
Zoro #
G9757045
UPC #
628311202083
Country of Origin
China

Dimensions

Gauge Nominal Dial Size
1 1/2 in
Gauge Connection Size
1/8 in
Connection Size
1/8 in NPT
Manufacturers Warranty Length
5 yr
Case Depth
1 in
Case Diameter
1.653 in
Manufacturer Warranty Length
5 yr
Process Connection Size
1/8 in
Nominal Dial Size
1 1/2 in
Nominal Dial Diameter
1 1/2 in

Details

Pressure and Vacuum Gauge Type
Vacuum Gauge
Gauge Application
Lead Free
Liquid Filled
No
Basic Gauge Case Material
Steel
Basic Gauge Wetted Parts
Brass / Bronze
Gauge Connection Type
MNPT
Gauge Connection Location
Bottom
Gauge Primary Range Units
in Hg
Gauge Primary Range Values
-30 to 0
Gauge Lens Material
Polycarbonate
Calibration Certificate Included
No
Basic Gauge Lens Material
Plastic
Gauge Case Color
Black
Connection Location
Bottom
Required Gauge Adapter
No
Gauge Socket Material
Brass
For Use With
Air Compressors, Air Conditioning, Heating, Plumbing, Pneumatic, Water Tanks
Range
30 in Hg Vac to 0
Case Color
Black
Item
Lead-Free Vacuum Gauge
Gauge Accuracy
+/-3-2-3%
Series
PEM-LF
Basic Gauge Sensor Material
Bronze
Gauge Case Material
Steel
Gauge Panel Mountable
No
Operating Temp. Range
-40 Degrees to 150 Degrees F
Basic Gauge Socket Material
Brass
Characteristics
Friction Bezel Ring
Gauge Sensor Material
Lead Free Phosphor Bronze
NSF Certified
Yes
Removable Bezel
No
Case Material
Steel
Hazardous Location Rating
Not Rated
Includes Vent Plug
No
Sensor Material
Bronze
Bezel Material
Steel
Cleaned for Oxygen Service
No
Vibration Resistance
None
Pressure Range Type
Vacuum
Process Connection Location
Bottom
Ambient Operating Temperature Range
-40 Degrees to 150 Degrees F
Field Fillable
No
Includes Calibration Certificate
No
Panel-Mountable
No
Dial Color
White
Pressure Gauge Type
Lead-Free Pressure Gauge
Gauge Case Liquid
None
Sensor Type
Bourdon Tube
Application
Air Compressors, HVAC/R, Hydraulics, OEM Applications, Plumbing, Pneumatics, Water Pressure Testing
Process Connection Type
NPT
Process Temperature Range
-40 Degrees to 150 Degrees F
Compatible Process Media
Non-Clogging, Non-Corroding, Potable Water
IP/NEMA Rating
IP52
Accuracy
+/-3-2-3%
Includes Mounting Hardware
No
Pointer Material
Aluminum
Movement Material
Stainless Steel
Secondary Pressure Range
-101 to 0
Pointer Color
Black
Socket Material
Lead Free Brass
Dry Dampening Feature
None
Lens Material
Plastic
Scale Type
Dual
Over-Pressure Limit
25%
Blowout Safety Back
No
Accuracy Scale
Mid-Scale
Accuracy Grade
Grade B
Case Finish
Painted
Dial Face Material
Aluminum
Standards
ANSI/ASME, CRN, NSF
Non-Sparking
No
Primary Pressure Range
30 to 0
Process Connection Gender
Male
Primary Scale Units
in Hg
Freeze Resistant Movement
No
Case Construction
Welded Joint
Secondary Scale Units
kPa
Liquid-Filled Case
No
Process Media Temperature - Maximum
150 Degrees F
Secondary Scale Vacuum Measurement - Maximum
0 kPa
Primary Scale Pressure Measurement - Maximum
30 in Hg
Primary Scale Vacuum Measurement - Maximum
30 in Hg
Secondary Scale Vacuum Measurement - Minimum
-101 kPa
NEMA Enclosure Rating
5
Secondary Scale Pressure Measurement - Maximum
-100 kPa
Primary Scale Pressure Measurement - Minimum
0 in Hg
Process Media Temperature - Minimum
-40 Degrees F
Operating Temperature - Minimum
-40 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Operating Temperature - Maximum
150 Degrees F
Case Liquid
None
IP Rating
IP52
Compatible with Brand
Universal
Primary Scale Vacuum Measurement - Minimum
0 in Hg

Description

Lead-Free Vacuum Gauge, Nominal Dial Size 1 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Plastic, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 30 to 0, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Lead-Free Pressure Gauge, Liquid-Filled Case No
