  9. Water Test Gauge, 2.5 in., 0 to 300 psi

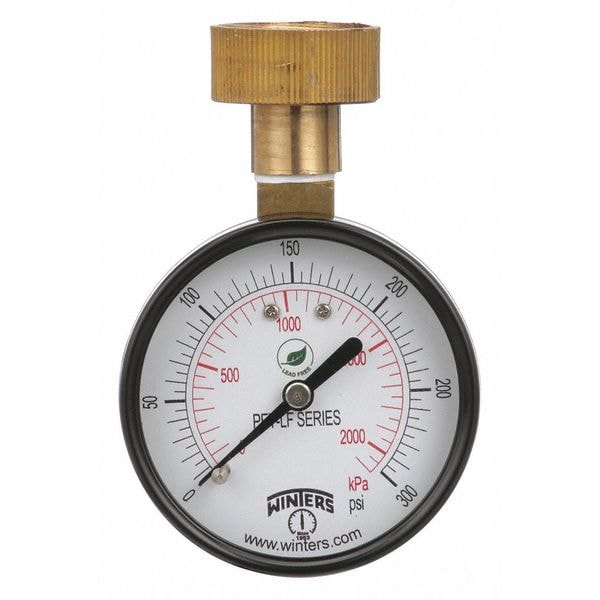

Winters Water Test Gauge, 2.5 in., 0 to 300 psi PETW217LF - main

Water Test Gauge, 2.5 in., 0 to 300 psi

  • Mfr # PETW217LF

  • Zoro # G6166772

product price: $15.99
/ea

Key Features

Standards
ASME, CRN
Range
0 to 300 psi
Manufacturers Warranty Length
5 yr
Gauge Connection Size
3/4 in
Gauge Connection Type
FGHT
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PETW217LF
Zoro #
G6166772
UPC #
628311901016
Country of Origin
China

Dimensions

Manufacturers Warranty Length
5 yr
Gauge Connection Size
3/4 in
Gauge Nominal Dial Size
2 1/2 in
Connection Size
3/4 in Female Swivel Hose Adaptor
Nominal Dial Size
2 1/2 in
Case Depth
0.97 in
Process Connection Size
3/4 in
Manufacturer Warranty Length
5 yr
Case Diameter
2.447 in
Nominal Dial Diameter
2 1/2 in

Details

Item
Lead-Free Pressure Gauge
Standards
ASME, CRN
Range
0 to 300 psi
Gauge Connection Type
FGHT
Pressure and Vacuum Gauge Type
Pressure Gauge
Calibration Certificate Included
No
Gauge Primary Range Units
psi
Gauge Application
Home Water Pressure Testing
Liquid Filled
No
Gauge Case Material
Steel
Gauge Primary Range Values
0 to 300
Basic Gauge Case Material
Steel
Gauge Panel Mountable
No
Gauge Connection Location
Top
NSF Certified
Yes
Dial Color
White
Case Finish
Painted
Secondary Scale Units
kPa
Pressure Gauge Type
Test Pressure Gauge
Movement Material
Lead Free Brass
Dry Dampening Feature
None
Secondary Pressure Range
0 to 2,100
Sensor Type
Bourdon Tube
Liquid-Filled Case
No
Series
PET-LF
Accuracy
+/-3-2-3%
Freeze Resistant Movement
No
Scale Type
Dual
Application
Commercial, Residential
Accuracy Scale
Mid-Scale
Process Temperature Range
-40 Degrees to 150 Degrees F
Sensor Material
Phosphor Bronze
Pressure Range Type
Pressure
Pointer Material
Aluminum
Primary Scale Units
psi
Lens Material
Acrylic
Primary Pressure Range
0 to 300
Field Fillable
No
Accuracy Grade
ASME B40.100 Grade B
Hazardous Location Rating
Not Rated
Dial Face Material
Aluminum
Includes Calibration Certificate
No
Removable Bezel
No
Case Color
Black
Includes Mounting Hardware
No
Socket Material
Lead Free Brass
Includes Vent Plug
No
Vibration Resistance
None
Process Connection Gender
Female
Ambient Operating Temperature Range
32 Degrees to 150 Degrees F (0 Degrees to 65 Degrees C)
Cleaned for Oxygen Service
No
Compatible Process Media
Air, Natural Gas, Potable Water, Water
Process Connection Type
FGHT
IP/NEMA Rating
IP52
Gauge Case Liquid
None
Process Connection Location
Top
Process Media Temperature - Minimum
-40 Degrees F
NEMA Enclosure Rating
5
Case Material
Steel
Operating Temperature - Maximum
150 Degrees F
Case Liquid
None
Primary Scale Pressure Measurement - Maximum
300 psi
Operating Temperature - Minimum
32 Degrees F
Compatible with Brand
Universal
Process Media Temperature - Maximum
150 Degrees F
Secondary Scale Pressure Measurement - Minimum
0 kPa
Primary Scale Pressure Measurement - Minimum
0 psi
Secondary Scale Pressure Measurement - Maximum
2,100 kPa
Pointer Color
Black
IP Rating
IP52

Description

Lead-Free Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material Steel, Process Connection Type FGHT, Process Connection Gender Female, Lens Material Acrylic, Process Connection Size 3/4 in, Field Fillable No, Process Connection Location Top, Case Color Black, IP/NEMA Rating IP52, Primary Pressure Range 0 to 300, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Test Pressure Gauge, Liquid-Filled Case No
