  11. Radiused Flat Elbow Fitting, Ivory, Steel
Shop All Raceway Fittings
Wiremold

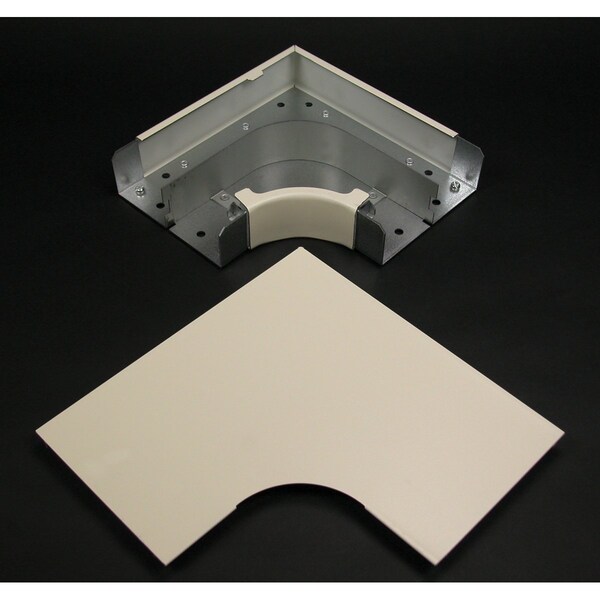

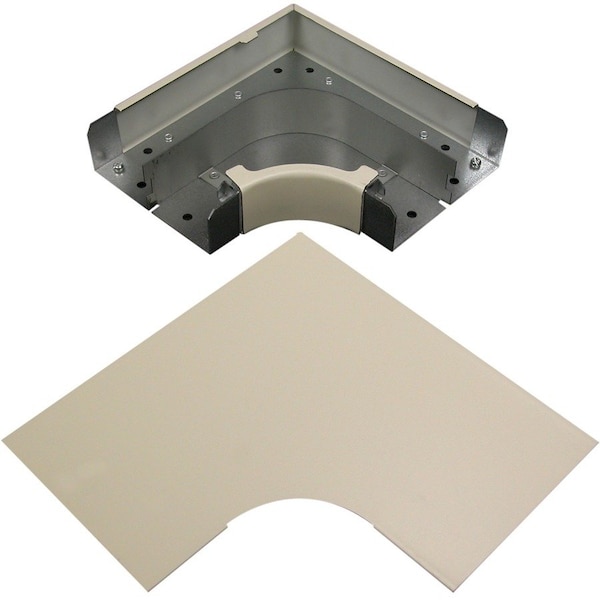

Radiused Flat Elbow Fitting, Ivory, Steel

product price: $52.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Raceway
  • Raceway Type Steel
  • Color Ivory
  • For Use With 4000 Raceways
  • Material Steel
See all product information

Product Information

Dimensions

Bend Radius (In.) 2 in
Bend Radius 2 in
Depth 1.25 in
Width 1 3/4 in
Length 8 3/4 in
Height 8.75 in
Overall Width 1 3/4 in
Overall Length 8 3/4 in
For Raceway Width x Height 4 3/4 in x 1 3/4 in
Product Depth US 1.25 in
Product Height US 8.75 in
Product Width US 8.75 in

Details

Item Radiused Flat Elbow Fitting
Type Raceway
Raceway Type Steel
Color Ivory
For Use With 4000 Raceways
Material Steel
Material of Construction Steel
Number of Channels Multiple
Standards ADA Compliant, cULus Listed, UL Listed, UL5
Features Full Capacity 90 Degrees Flat Corner Used in Divided or Undivided Applications, Ideal for New Installation When the Cable is Lay-in or Pull-Through, Provides 2 in (51mm) Bend Radius Control for UTP, STP and Fiber Optic Installations
Voltage 600.0 V
Series 4000
Compatible with Product Type 4000 Raceways
Basic Material Steel
Standard cULus Listed Surface Metal Raceway: File E41751: Guide RJPR/RJPR7
Application Sector Commercial
Special Features Large Capacity, Complete line of fittings, Wide range of Datacom connectivity options, UL5 and ADA compliant, UL and cUL Listed
Product Volume US 95.7 cu in
Product Environmental Profile Yes
cULus Listed Yes
Product Line Wiremold

Description

Radiused Flat Elbow Fitting, Series 4000, For Raceway Width x Height 4 3/4 in x 1 3/4 in, Material Steel, Color Ivory, Number of Channels Multiple, Bend Radius 2 in, Compatible with Product Type 4000 Raceways, Features Full Capacity 90 Degrees Flat Corner Used in Divided or Undivided Applications, Ideal for New Installation When the Cable is Lay-in or Pull-Through, Provides 2 in (51mm) Bend Radius Control for UTP, STP and Fiber Optic Installations, Overall Length 8 3/4 in, Overall Width 1 3/4 in
