Shop WOODFORD MANUFACTURING

Anti-Siphon Sillcock, 1/2 In.

  • Mfr # 24P1/2

  • Zoro # G3465122

product price:  $75.79
/ea

Key Features

Body Material
Brass/Copper
Inlet Type
FNPT
Max. Pressure
125 psi
Thru-Wall Length
0 in
Handle Type
Handwheel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
24P1/2
Zoro #
G3465122
UPC #
671090074716
Country of Origin
United States

Dimensions

Thru-Wall Length
0 in
Inlet Size
1/2 in
Pipe Size
1/2"
Inlet Connection Size
1/2 in
Outlet Connection Size
3/4 in
Overall Height
4 in
Overall Length
4 in
Wire Rope Length
4 in

Details

Body Material
Brass/Copper
Item
Angle Sillcock
Inlet Type
FNPT
Max. Pressure
125 psi
Handle Type
Handwheel
Max. Temp.
120 Degrees F
Standards
ASSE, CSA, IAPMO
Includes
Anti-Siphon
Handle Material
Plastic
Inlet Connection Gender
Female
Temperature - Maximum
120 Degrees F
Pressure - Maximum
125 psi
Inlet Connection Type
NPT
Finish
Chrome
Frost Resistance
Not Frost-Resistant
Number of Faucets
1
Outlet Configuration
Standard
Outlet Connection Type
GHT
Product Type
Sillcock
Material
Brass, Copper
Flow Rate - Maximum
18 gpm

Description

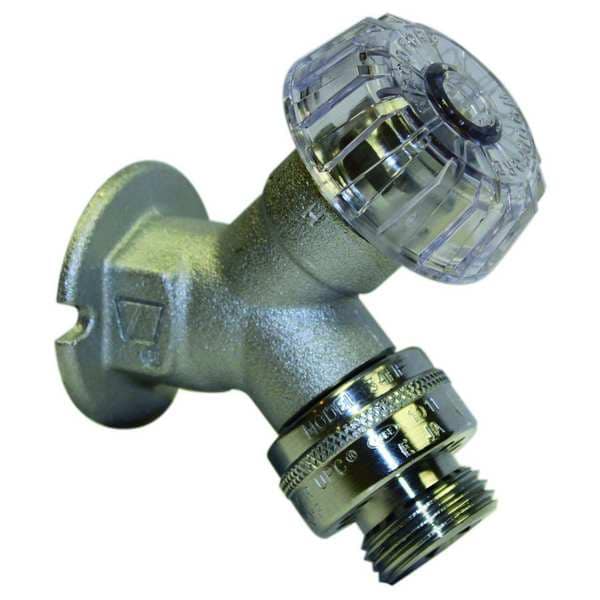

The Woodford Model 24 is an anti-siphon, vacuum breaker protected sillcock designed for use in. mild climates. Designed to blend with modern architectures for installation on or in. homes, service stations, churches, motels, drive-in restaurants, etc. Repair parts readily available. Woodford, The Choice of Professionals.


  • • P inlet 1/2 in. female pipe thread
  • • Anti-siphon 34HF-CH vacuum breaker
  • • Valve seat - standard O in size washer
  • • EPDM packing to prevent leaking
  • • Adjustable brass nut with deep stem guard
  • • Approved under ASSE Standard 1011, Canadian Standards Association, listed by IAPMO
  • • Nidel Model 34 with male hose thread
  • • Mild Climate
  • • Not intended for continuous use. Outdoor watering and shall not be subjected to more than (12) hours of continuous water pressure.
  • • Made In the USA

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
