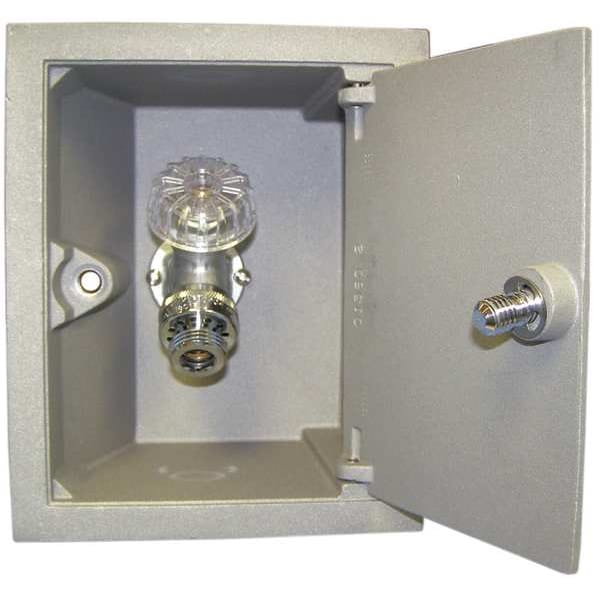

Woodford Manufacturing Enclosed Wall Faucet, 3-3/4 In. B24-1/2 - main

Enclosed Wall Faucet, 3-3/4 In.

  • Mfr # B24-1/2

  • Zoro # G1987203

product price: $605.99
/ea
Free Shipping & Returns

Key Features

Handle Type
Handwheel
Outlet Size
3/4 in Hose
Wall Thickness
3 3/4 in
Max. Temp.
120 Degrees F
Max. Pressure
125 psi
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
B24-1/2
Zoro #
G1987203
UPC #
671090000029
Country of Origin
United States

Dimensions

Outlet Size
3/4 in Hose
Wall Thickness
3 3/4 in
Inlet Size
1/2 in FNPT
Pipe Size
3/4"
Overall Length
3 3/4 in
For Wall Opening Height
6 1/8 in
Box Depth
3 3/4 in
Outlet Connection Size
3/4 in
Inlet Connection Size
1/2 in
For Wall Opening Width
7 3/4 in
For Wall Thickness - Maximum
3 3/4 in

Details

Item
Wall Hydrant
Handle Type
Handwheel
Max. Temp.
120 Degrees F
Max. Pressure
125 psi
Standards
ASSE, CSA, IAPMO
Includes
Vacuum Breaker
Recommended Wall Opening
6-1/8 in x 7-3/4 in
Casing Material
Chrome
Product Type
Wall Hydrant
Face Shape
Rectangle
Inlet Connection Type
NPT
Finish
Chrome
Face Material
Brass
Pressure - Maximum
125 psi
Outlet Connection Gender
Male
Face Type
Fully Enclosed
Inlet Connection Gender
Female
Number of Outlets
1
Frost Resistance
Freeze-Resistant
Temperature - Maximum
120 Degrees F
Outlet Connection Type
GHT

Description

The Woodford Model 24 in a modular box is an anti-siphon, vacuum breaker protected sillcock designed for use in. mild climates. Designed to blend with modern architectures for installation on or in. homes, service stations, churches, motels, drive-in restaurants, etc. Repair parts readily available. Woodford, The Choice of Professionals.


  • • P inlet 1/2 in. female pipe thread
  • • Anti-siphon 34HF-CH vacuum breaker
  • • Valve seat - standard O in size washer
  • • EPDM packing to prevent leaking
  • • Adjustable brass nut with deep stem guard
  • • Approved under ASSE Standard 1011, Canadian Standards Association, listed by IAPMO
  • • Nidel Model 34 with male hose thread
  • • Mild Climate
  • • Not intended for continuous use. Outdoor watering and shall not be subjected to more than (12) hours of continuous water pressure.

Restrictions

WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
