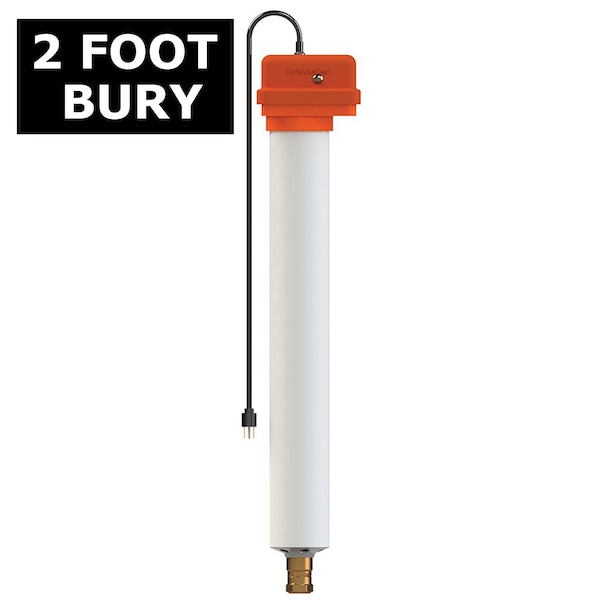

Water Connector, 3/4" NPTx2 ft. Brass

The Thermaline is a compact unit especially designed to provide water service to mobile homes. It is ideal wherever a freezeless sanitary tight line installation is needed, such as, waterers for livestock. The Thermaline is protected from freezing by a bonded polyurethane foam insulation permanently molded in a high strength plastic casing, and a portable insert heater, which costs about a penny a day to operate even at 50° below zero. The heater can be inserted and removed from the Thermaline without interrupting the water service. Galvanized steel riser pipe with coal-tar coating on lower end, brass fittings, structural foam protective surface cover, and extra large cushion valve all combine to make the Thermaline water connector virtually maintenance free. When not in use, wheel handle at surface level shuts off water below the frost line. Water above the frost line can be removed completely with forced air or suction pump. Repair parts readily available. Woodford, The Choice of Professionals.

• • 3/4 in. NPT inlet
• • Heater - 15 Watt (110 - 120 Volt) portable insert heater with
• • Cover - Pressure molded polypropylene rigid structural foam
• • Riser Pipe - 1 in. galvanized steel pipe
• • Operating Pipe - 1/4 in. galvanized steel pipe
• • Insulation - Molded polyurethane foam
• • Casing - 3 1/4 in. OD plastic tubing
• • Valve – Permanent type brass valve body with hemispherical seating surface 3/4 in. NPT inlet
• • Parts readily available
• • Woodford, The Choice of Professionals
