  9. Cse M8 M8 4P Ac Fe Str Wsor Ma Str 3M
Woodhead Cse M8 M8 4P Ac Fe Str Wsor Ma Str 3M 444030B41M030 - main

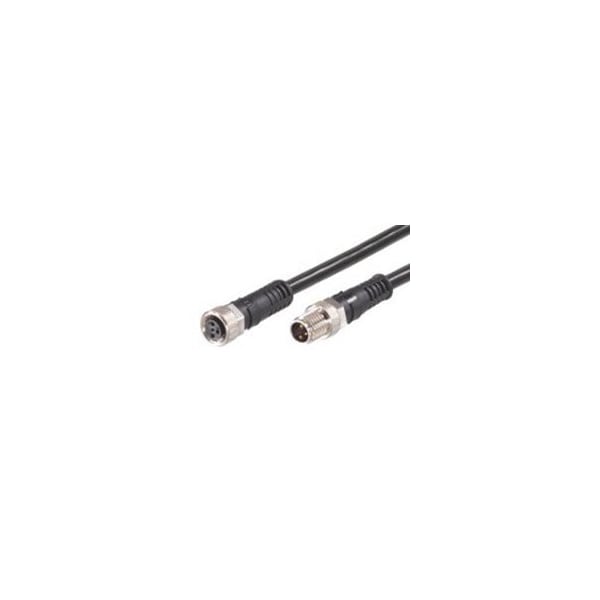

Cse M8 M8 4P Ac Fe Str Wsor Ma Str 3M

  • Mfr # 444030B41M030

  • Zoro # G605964391

product price: $39.15
/ea
Sold in multiples of 24 for $939.60

Key Features

Type
Female-Male
Color
Black
Insulation Material
Thermoplastic Polyurethane
Maximum Voltage
30 V
Current
3 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
444030B41M030
Zoro #
G605964391
UPC #
-
Country of Origin
Poland

Dimensions

Length
9.84 ft
Cable Diameter
4.80mm (.189")
Cable Length
3.0m (9.84')
Wire Size (AWG)
24

Details

Item
Nano-Change (M8)
Type
Female-Male
Color
Black
Insulation Material
Thermoplastic Polyurethane
Maximum Voltage
30 V
Current
3 A
Maximum Operating Temperature
85 Degrees C
Material
Thermoplastic Polyurethane
Series
120087
IP Rating
IP67
Connector Type
Female-Male
Contact Finish
Gold Plated
Max. Voltage
30V
Wire Range
24 AWG
Current Rating
3 A
Max. Temp.
85°C
Voltage - Maximum
60V AC / 75V DC
Material - O-Ring
Fluoro-elastomer
Keyway
A-coded
Product Name
Nano-Change (M8)
Coupling Style
Knurled Hexnut, Threaded
Material - Contact
Brass
Poles
4
Material - Cable Jacket
TPU
Connector End B
Nano-Change (M8)
Temperature Range - Operating
-25° to +85°C
Material - Connector Body
TPU
LED Indicator
No
Material - Plating Mating
Gold
Current - Maximum per Contact
3.0A
Connector End A
Nano-Change (M8)
Material - Coupling Nut
Nickel-plated Brass
Wire/Cable Type
UL 21215
Orientation
Straight to Straight
