  11. Mc 3P Fp 12 16/3 Soo

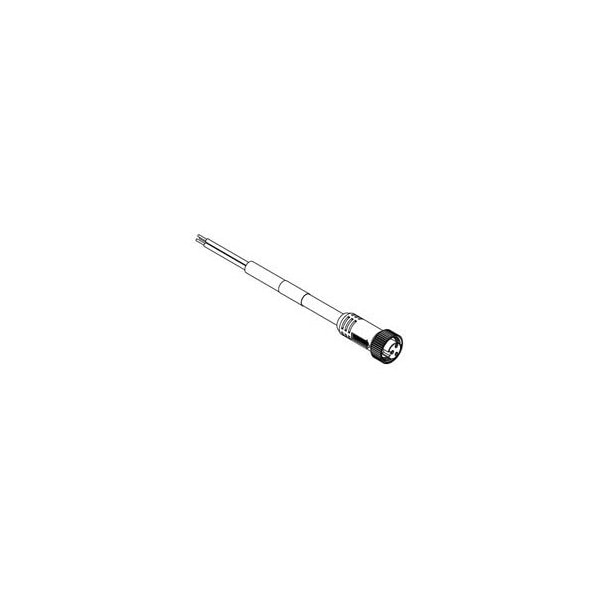

Woodhead Mc 3P Fp 12 16/3 Soo 103000C01F120 - main

Mc 3P Fp 12 16/3 Soo

  • Mfr # 103000C01F120

  • Zoro # G305902518

product price: $66.29
/ea
Sold in multiples of 2 for $132.58

Key Features

Cable Length
3.66 m
IP Rating
IP67
Keyway
Single
Type
Single Ended
Series
130006
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
103000C01F120
Zoro #
G305902518
UPC #
-
Country of Origin
Mexico

Dimensions

Cable Length
3.66 m
Cable Diameter
10.67mm (.420")
Wire Size
16 AWG

Details

IP Rating
IP67
Keyway
Single
Type
Single Ended
Series
130006
Orientation
Straight to Pigtail
CSA
LR6837
Temperature Range - Operating
-20°C to +90°C
Coupling Style
Threaded
Material - Connector Body
PVC
Voltage - Maximum
600V
Material - Plating Mating
Gold
Gender
Female-Pigtail
Wire/Cable Type
SOO
LED Indicator
No
Current - Maximum per Contact
13.0A
Poles
3
Material - Coupling Nut
Black Epoxy Coated Zinc
Connector End A
Mini-Change
Material - Contact
Copper Alloy
Connector End B
Pigtail
Product Name
Mini-Change
Item
Cordset
Cable Jacket Color
Yellow
Cable Jacket Material
Rubber
