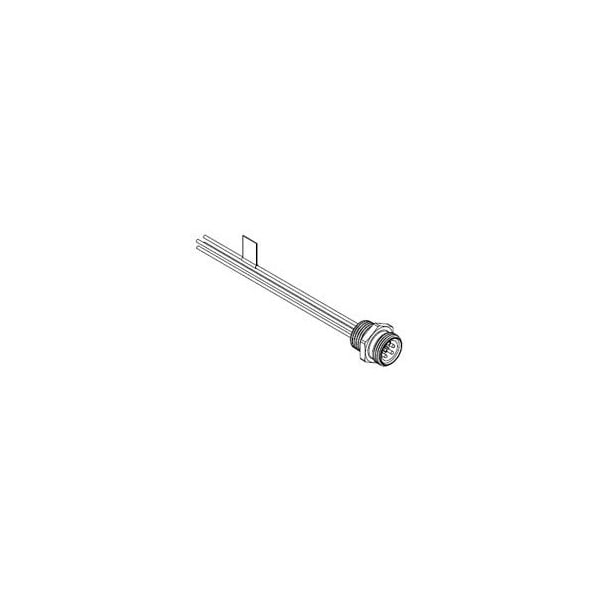

Mc 4P Mr 5M No 16/1 Pvc Dc
Mfr # 1R4006A39M050
Zoro # G105927391
product price:Â $55.49
/ea
Sold in multiples of 2 for $110.98
Key Features
Type
Single Ended (pigtail)
IP Rating
IP67
Voltage - Maximum
600V AC/DC
Panel Mount
Front
Keyway
Single
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 1R4006A39M050
- Zoro #
- G105927391
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Length
- 5.0m
- Wire Size (AWG)
- 16
- Mounting Thread Size
- 1/2" - 14 NPT
Details
- Type
- Single Ended (pigtail)
- IP Rating
- IP67
- Voltage - Maximum
- 600V AC/DC
- Panel Mount
- Front
- Keyway
- Single
- CSA
- LR6837
- Series
- 130013
- Orientation
- Straight
- UL
- E152210
- NEMA Rating
- NEMA 6
- Material - Component
- Zinc Die-Cast with Black Epoxy
- Product Name
- Mini-Change
- Gender
- Male
- Poles
- 4
- Current - Maximum per Contact
- 8.0A
- Temperature Range - Operating
- -20° to +105°C
- Wire/Cable Type
- UL 1015
- Coupling Type
- External Thread
