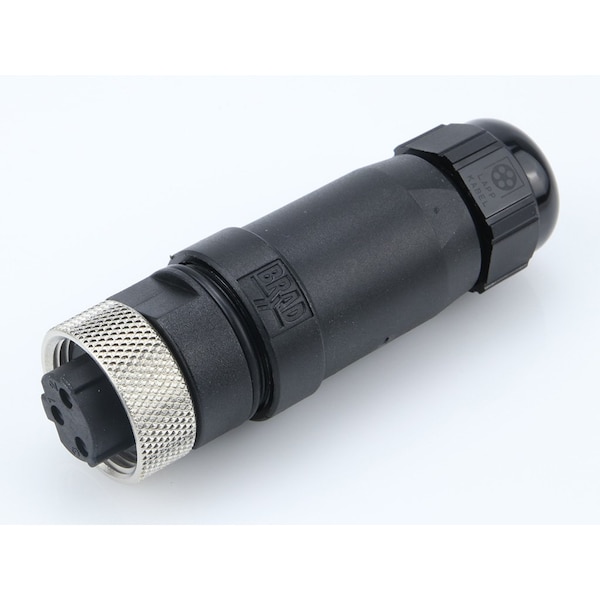

Mini-Change Field Attachable, Female Connector, 3 Pole
Mfr # 1300170063
Zoro # G605786153
product price: $49.45
/eaSold in multiples of 7 for $346.15
Key Features
Maximum Wire Size
14 AWG
Insulation Material
Nylon
Maximum Voltage
600 V
Current
15 A
Minimum Operating Temperature
-20 Degrees C
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1300170063
Zoro #
G605786153
UPC #
-
Country of Origin
Unknown
Dimensions
Maximum Wire Size
14 AWG
Cable Diameter
6.00-12.00mm
Details
Item
Wire Connector
Insulation Material
Nylon
Maximum Voltage
600 V
Current
15 A
Minimum Operating Temperature
-20 Degrees C
Maximum Operating Temperature
80 Degrees C
Series
130017
Standards
cULus Listed
IP Rating
IP67
Material - Plating Mating
Gold
Gender
Female
Poles
3
Material - Connector Body
Nylon
Coupling Type
Internal Thread
Material - Coupling Nut
Nickel-plated Brass
Orientation
Straight
Approvals
cULus Listed
Material - Contact
Brass
Keyway
Tri-Key
Diagnostics / LEDs
No
