  11. Sensor Cables / Actuator Cables Mic 5P M/Mfe 18M No 18/5 Tpe

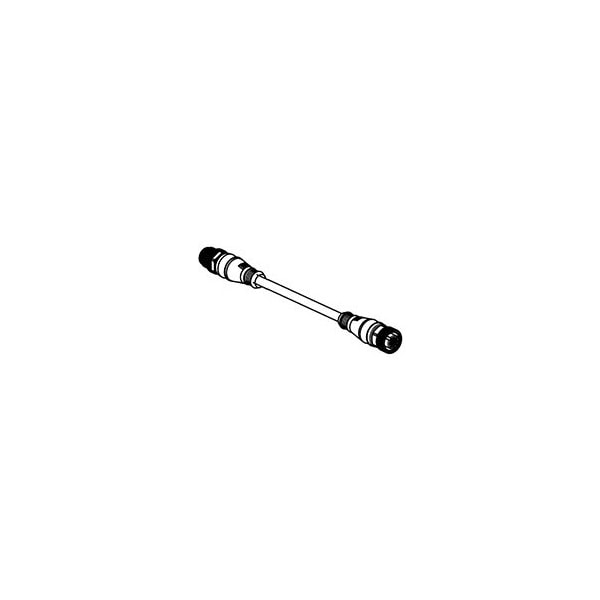

Woodhead Sensor Cables / Actuator Cables Mic 5P M/Mfe 18M No 18/5 Tpe 1200661686 - main

Sensor Cables / Actuator Cables Mic 5P M/Mfe 18M No 18/5 Tpe

  • Mfr # 1200661686

  • Zoro # G705782260

product price: $195.99
/ea
Free Shipping & Returns

Key Features

Type
Double Ended
Insulation Material
TPE
Maximum Voltage
250 V
Current
4 A
Color
Yellow
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1200661686
Zoro #
G705782260
UPC #
-
Country of Origin
Unknown

Dimensions

Wire Size (AWG)
18
Cable Length
18.0m (59.05')
Cable Diameter
6.86mm (.270")

Details

Item
Micro-Change (M12)
Type
Double Ended
Insulation Material
TPE
Maximum Voltage
250 V
Current
4 A
Color
Yellow
Minimum Operating Temperature
-20 Degrees F
Maximum Operating Temperature
105 Degrees F
Series
120066
Standards
CSA LR6837
IP Rating
IP67
Material - Coupling Nut
Nickel-plated Brass
Poles
5
LED Indicator
No
Connector End B
Micro-Change (M12)
CSA
LR6837
UL
E152210
Material - O-Ring
Fluoro-elastomer
Connector End A
Micro-Change (M12)
Product Name
Micro-Change (M12)
Gender
Female-Male
Material - Contact
Brass
Material - Cable Jacket
TPE
Orientation
Straight to Straight
Temperature Range - Operating
-20° to +105°C
Material - Plating Mating
Gold
Color - Cable Jacket
Yellow
Coupling Style
Threaded
Current - Maximum per Contact
4.0A
Material - Connector Body
TPE
Voltage - Maximum
250V AC/DC
Keyway
Single
Wire/Cable Type
PLTC/ITC
