Shop SCHNEIDER ELECTRIC

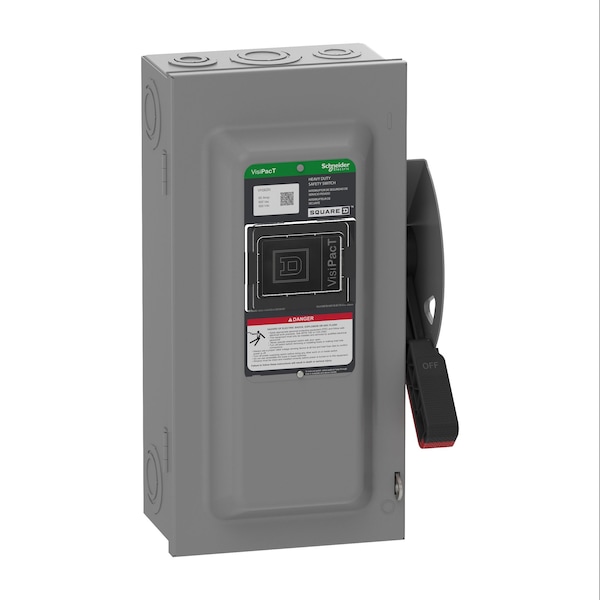

Safety Switch, Fusible, 3PST, Three Phase, NEMA 1, Indoor, Steel

  • Mfr # VH362N

  • Zoro # G109691373

product price:
$
484.58
/ea
Free Shipping & Returns

Key Features

Protection Method
Fusible
Contact Form
3PST
Current Rating
60 A
Phase
Three
For Fuse Class
Class H, Class K
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
VH362N
Zoro #
G109691373
UPC #
3606485893938
Country of Origin
Korea, Republic of

Dimensions

Width
8 7/8 in
Height
18 1/8 in
Depth
7 in
Maximum Enclosure Depth
7.04 in

Details

Item
Safety Switch
Protection Method
Fusible
Contact Form
3PST
Current Rating
60 A
Phase
Three
For Fuse Class
Class H, Class K
Environment
Indoor
Enclosure Type
NEMA 1
HP
50 HP
Voltage
600 V
Handle Color
Black/Red
Housing Material
Steel
Standards
EU RoHS, UL Listed file E2875
Duty
Heavy Duty
Number of Poles
3
Includes
Dual Cover Interlock
Neutral Assembly Included
Yes
Number of Wires
4
Amps
60 A
IP Rating
IP20
Number of Mounting Holes
5
Mounting Style
Surface Mount
Horsepower @ 600V AC
50 hp
Number of Locks
2
Includes Interlocked Receptacle
Yes
Series
F
NEMA Enclosure Rating
1
Features
Quick Make/Break Operating Mechanism, Viewing Window
Horsepower @ 480V AC
30 hp
Fuse Kit (Class R)
Mfr. No. RFK03H
Horsepower @ 240V AC
5 hp
Compatible with Manufacturer Model Number
RFK03H
Compatible Manufacturer Part Number
RFK03H
Compatible Manufacturer Model Number
RFK03H
For Use With Mfr. Model Number
RFK03H
Condition Of Use
suitable service entrancefor USA || suitable service entrancefor Mexico
Electrical Connection
lugs
Product Certifications
UL listed file E2875
Disconnector Device Type
fusible disconnect
Wiring Configuration
4-wire (3PH + N)
Device Composition
neutral (factory installed)
Tightening Torque
50-50 lbf.in (AWG 3) || 45-45 lbf.in (AWG 6...AWG 4) || 40-40 lbf.in 8.367-8.367 mm² (AWG 8) || 50-50 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
Device Mounting
surface
Series Name
heavy duty
Device Application
heavy application
Short-Circuit Current
10 kA for H, K, J or R without fuse rejection clips || 200 kA for R with fuse rejection clips || 200 kA for J
Product Or Component Type
Single Throw Safety Switch
Compatible with Manufacturer Model No.
RFK03H
Compatible with Mfr. Model No.
RFK03H
For Use with Mfr Model Number
RFK03H
Compatible Pump Manufacturer Part Number
RFK03H
Compatible Mfr. Model Number
RFK03H
For Manufacturer Part Number
RFK03H
Compatible with Mfr. Model Number
RFK03H

Description

Safety Switch, Compatible with Manufacturer Model Number RFK03H, Contact Form 3PST, Current Rating 60 A, Depth 7 in, Duty Heavy Duty, Enclosure Type Enclosed, Environment Indoor, Features Quick Make/Break Operating Mechanism, Viewing Window, For Fuse Class Class H, Class K, Fuse Kit (Class R) Mfr. No. RFK03H, Handle Color Black/Red, Height 18 1/8 in, Horsepower @ 240V AC 5 hp, Horsepower @ 480V AC 30 hp, Horsepower @ 600V AC 50 hp, Housing Material Steel, Includes Dual Cover Interlock
