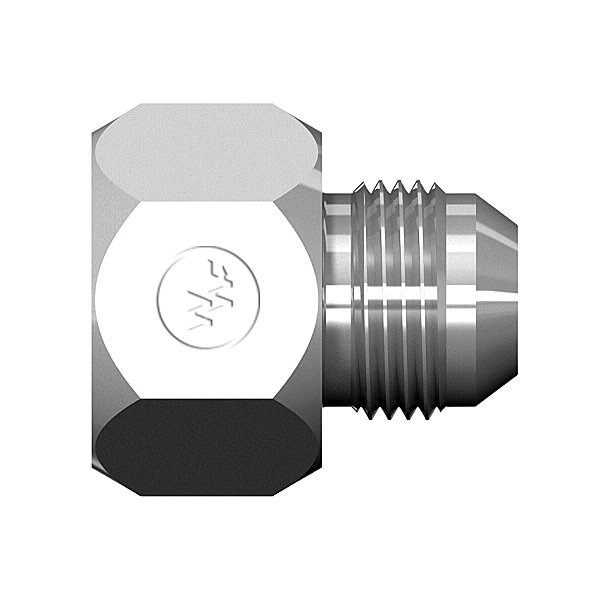

Female JIC to Male JIC Tube End Reducer
Mfr # 5015X08X04
Zoro # G103655074
product price:Â
$
3.39
/ea
Sold in multiples of 3 for $10.17
Key Features
Fitting Thread Size 2
7/16-20
Hex Size
0.875
Fitting Thread Size 1
3/4-16
Overall Length
1.3
Standards
Steel 37 Flare (JIC) Fittings meet SAE J514, SAE 1926 and MS\n(Military Specifications).
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5015X08X04
- Zoro #
- G103655074
- UPC #
- -
- Country of Origin
- China
Dimensions
- Fitting Thread Size 2
- 7/16-20
- Hex Size
- 0.875
- Fitting Thread Size 1
- 3/4-16
- Overall Length
- 1.3
- Overall Length (mm)
- 33.02
- Hex Size (mm)
- 22.225
Details
- Standards
- Steel 37 Flare (JIC) Fittings meet SAE J514, SAE 1926 and MS\n(Military Specifications).
- Fitting Thread Type 1
- JIC 37 Degrees Flare
- Fitting Thread Type 2
- JIC 37 Degrees Flare
- Material
- Steel
- Weight
- 0.09
- Body Material
- Steel
- End 1 Connection Type
- Female
- Adapter Type
- Elbow and Straights
- End 2 Connection Type
- Male
