  5. 1 HP 2" Auto Explosion Proof Sewage Pump 230V Vertical

This item is Discontinued.

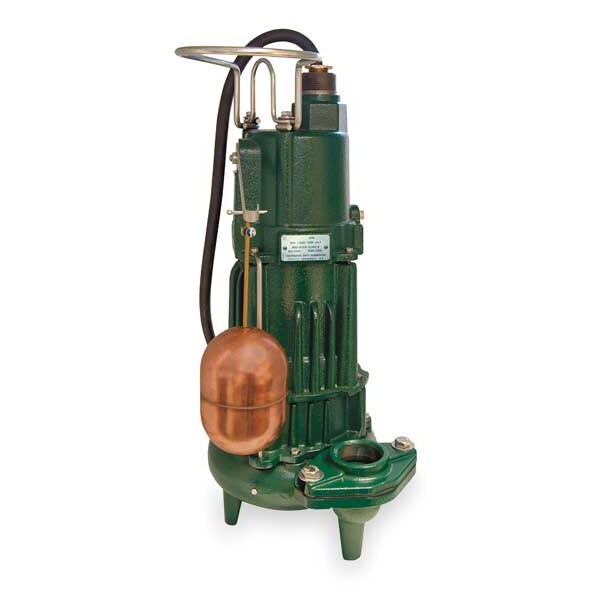

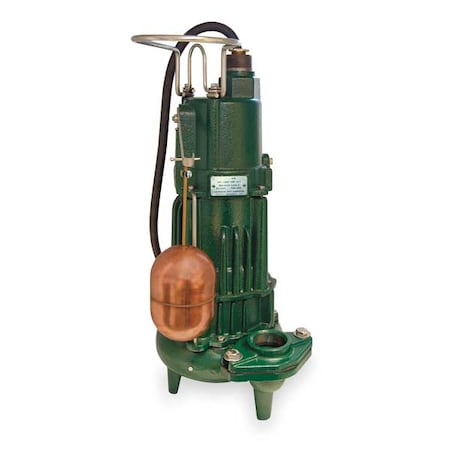

Zoeller 1 HP 2" Auto Explosion Proof Sewage Pump 230V Vertical DX284

1 HP 2" Auto Explosion Proof Sewage Pump 230V Vertical (Discontinued)

  • Mfr # DX284
  • Zoro # G2039877
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
DX284
Zoro #
G2039877
UPC #
053514246280
Country of Origin
United States

Dimensions

Max. Diameter Solids
2 in
Width
13-9/16"
Min. Sump Pit Dia.
24 in
Diameter
13-5/16"
Cord Length
20 ft
Cord Length - Pumps
20 ft.
Length
13-9/16"
Manufacturers Warranty Length
1 yr
Height
25-3/16"
Max. Dia. Solids
2"
Overall Height
25 3/16 in
Discharge Dia.
2 in
Width at Widest Point
13 9/16 in
Body Dia.
13 5/16 in

Details

HP
1
Switch Actuation
Vertical Float
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
157 gpm
Max. Head
35 ft
Impeller Material
Cast Iron
GPM of Water @ 20 Ft. of Head
106
Duty
Continuous
GPM of Water @ 5 Ft. of Head
179
Pump Body Material
Cast Iron
Hz
60 Hz
Max. Head - Pumps
35 ft.
Impeller Material - Pumps
Cast Iron
GPM of Water @ 15 Ft. of Head
133
GPM of Water @ 10 Ft. of Head
157
Pump HP
1
Motor Type
Oil Filled
Housing Material
Cast iron
Thermal Protection
Yes
Item
Sewage Ejector Pump
Pump RPM
1750
Motor RPM
1750
Item - Sewage Pumps
Explosion Proof Submersible Sewage Pump
Switch Type - Pumps
Vertical
Shaft Seal Material - Pumps
Carbon, Ceramic
GPM of Water @ 30 Ft. of Head
42
Discharge NPT
2"
Shaft Seal
Carbon/Ceramic
Voltage - Pumps
240VAC
Voltage
230
Max. Liquid Temp.
104 Degrees F
Pump Type
Automatic
Amps
8.90 A
Agency Compliance
FM Approved
Amps - Pumps
8.90
GPM of Water @ 25 Ft. of Head
73
Handle
yes
Bearing Type
Ball
Discharge
2 in FNPT
Duty Cycle
Continuous
On Point
19 1/2 in
RPM
1,750 RPM
Rated Voltage
230V AC
Flow Rate @ 20 Ft. of Head
106 gpm
Switch Electrical Connection
Integral
Flow Rate @ 15 Ft. of Head
133 gpm
Discharge Standard
NPT
Discharge Gender
Female
Off Point
9 3/4 in

Description

Sewage Ejector Pump, HP 1, Rated Voltage 230V AC, Hz 60 Hz, Amps 8.90 A, Motor Type Oil Filled, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation Vertical Float, Switch Electrical Connection Integral, On Point 19 1/2 in, Off Point 9 3/4 in, Flow Rate @ 10 Ft. of Head 157 gpm, Flow Rate @ 15 Ft. of Head 133 gpm, Flow Rate @ 20 Ft. of Head 106 gpm, Max. Diameter Solids 2 in, Min. Sump Pit Dia. 24 in, Body Dia. 13 5/16 in
