  5. 1/2 HP 1-1/2" F Submersible Sump Pump 115 Mechanical

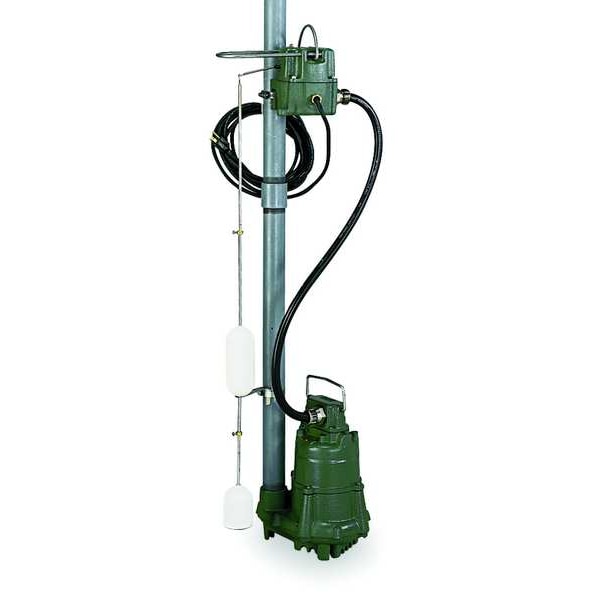

Zoeller 1/2 HP 1-1/2" F Submersible Sump Pump 115 Mechanical 3098-0001 - main

1/2 HP 1-1/2" F Submersible Sump Pump 115 Mechanical

  • Mfr # 3098-0001

  • Zoro # G0724141

product price:  $1,184.99
/ea
Free Shipping & Returns

Key Features

Cord Length
15 ft
Discharge NPT
1-1/2" F
Housing Material
Cast iron
HP
1/2
Hz
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3098-0001
Zoro #
G0724141
UPC #
053514036188
Country of Origin
United States

Dimensions

Cord Length
15 ft
Cord Length - Pumps
15 ft.
Max. Diameter Solids
1/2 in
Diameter
11"
Max. Dia. Solids
1/2"
Manufacturers Warranty Length
1 yr
Height
13-1/2"
Min. Sump Pit Dia.
18 in
Body Dia.
11 in
Discharge Dia.
1 1/2 in
Overall Height
13 1/2 in
Sump Pit Diameter - Minimum
18 in
Body Diameter
11 in
Width at Widest Point
10 1/8 in
Solids Diameter - Maximum
1/2 in
Discharge Diameter
1 1/2 in

Details

Discharge NPT
1-1/2" F
Housing Material
Cast iron
HP
1/2
Hz
60 Hz
Impeller Material
Cast Iron
Includes
Check valve
Max. Head
21 ft
Max. Temp.
200 Degrees F
Motor RPM
1725/3450
Motor Type
PSC
Shaft Seal
Viton(R)
Voltage
115
Phase
Single
Pump HP
1/2
On Point
7 1/4 in
Item
Submersible Sump Pump
Impeller Material - Pumps
Cast Iron
Max. Liquid Temp.
200 Degrees F
Amps
9.4 A
GPM of Water @ 15 Ft. of Head
41
Mechanical Seal
Viton(R)
Switch Type - Pumps
Float
Off Point
3 in
Thermal Protection
Auto
Base Material
Cast Iron
Features
High Temperature Liquid-Tight Conduit Used with High Temperature Cable, High Temperature Motor Windings, All Models Have Stainless Steel Screws, Guards, Handles and Control Arm and Seal Assemblies
GPM of Water @ 5 Ft. of Head
66
Alarm Included
No
Pump Body Material
Cast Iron
Alarm
No
GPM of Water @ 10 Ft. of Head
56
Switch Type
Mechanical
GPM of Water @ 20 Ft. of Head
23
Voltage - Pumps
120VAC
Gauge/Conductor
16/4
Amps - Pumps
9.40
Item - Sump Pumps
Submersible Sump Pump
Shaft Seal Material - Pumps
Viton
NEC Cord Designation
SOW
Max. Head - Pumps
21 ft.
Switch Actuation
Vertical Float
Duty Cycle
Continuous
Discharge Standard
NPT
Discharge Gender
Female
Discharge
1-1/2 in FNPT
Body Material
Cast Iron
Flow Rate @ 10 Ft. of Head
56 gpm
Flow Rate @ 20 Ft. of Head
23.0 gpm
Flow Rate @ 15 Ft. of Head
41.0 gpm
Flow Rate @ 5 Ft. of Head
66.0 gpm
Rated Voltage
115V AC
Switch Electrical Connection
Integral
Standards
SSPMA
Rotation Speed - Maximum
1,725 RPM
Shaft Seal Type
Single Mechanical
Liquid Temperature - Maximum
200 Degrees F
Flow Rate @ 10 ft of Head
56 gpm
Hazardous Location Class
Not Rated
Feet of Head - Maximum
21 ft
Current
9.4 A
Series
Model 3098
Requires Control Panel
No Control Panel Required
Volute Material
Cast Iron
Includes Alarm
No Alarm Included
Horsepower
1/2 hp
Installation
Submersible
Flow Rate @ 30 ft of Head
0 gpm
For Industry
Commercial, Residential
Operation
Automatic
For Media Type
Clear Water
Motor Housing Material
Cast Iron
Power Source
Corded Electric
Frequency
60 Hz
Shaft Seal Material
Viton
Impeller Design
Vortex
Controls Included
No Controls Included

Description

Submersible Sump Pump, HP 1/2, Rated Voltage 115V AC, Hz 60 Hz, Amps 9.4 A, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Off Point 3 in, On Point 7 1/4 in, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Viton, Flow Rate @ 5 Ft. of Head 66.0 gpm, Flow Rate @ 10 Ft. of Head 56 gpm, Flow Rate @ 15 Ft. of Head 41.0 gpm, Flow Rate @ 20 Ft. of Head 23.0 gpm, Max. Head 21 ft, Min. Sump Pit Dia. 18 in, Body Dia. 11 in
