  9. 1/2 HP 2" Auto Explosion Proof Sewage Pump 115V Vertical

This item is Discontinued.

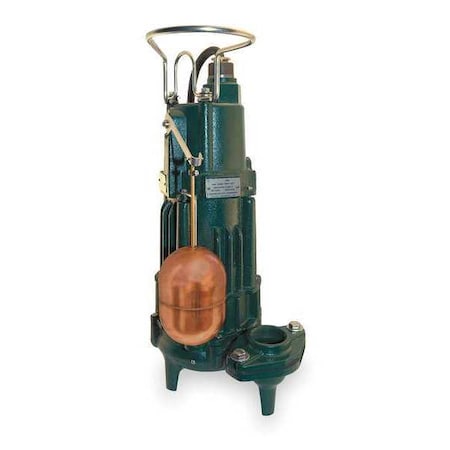

Zoeller 1/2 HP 2" Auto Explosion Proof Sewage Pump 115V Vertical MX292

1/2 HP 2" Auto Explosion Proof Sewage Pump 115V Vertical (Discontinued)

  • Mfr # MX292
  • Zoro # G1013153
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MX292
Zoro #
G1013153
UPC #
053514246327
Country of Origin
United States

Dimensions

Max. Diameter Solids
2 in
Manufacturers Warranty Length
1 yr
Width
13-1/8"
Cord Length
20 ft
Diameter
13-5/16"
Length
13-5/16"
Max. Dia. Solids
2"
Min. Sump Pit Dia.
24 in
Height
24-15/16
Cord Length - Pumps
20 ft.
Discharge Dia.
2 in
Width at Widest Point
13 1/8 in
Overall Height
25 in
Body Dia.
13 5/16 in
Discharge Diameter
2 in
Sump Pit Diameter - Minimum
24 in
Solids Diameter - Maximum
2 in
Body Diameter
13 3/8 in

Details

HP
1/2
Switch Actuation
Vertical Float
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
120 gpm
Max. Head
40 ft
Impeller Material
Cast Iron
Item
Sewage Ejector Pump
GPM of Water @ 20 Ft. of Head
91
Pump HP
1/2
Shaft Seal
Carbon/Ceramic
Pump Body Material
Cast Iron
Agency Compliance
FM Approved
GPM of Water @ 5 Ft. of Head
140
Impeller Material - Pumps
Cast Iron
Duty
Continuous
GPM of Water @ 35 Ft. of Head
30
Motor RPM
3450
Voltage
115
Handle
yes
Pump Type
Automatic
Amps - Pumps
15.00
Amps
15.00 A
Max. Head - Pumps
42 ft.
GPM of Water @ 30 Ft. of Head
56
GPM of Water @ 25 Ft. of Head
75
GPM of Water @ 40 Ft. of Head
10
Bearing Type
Ball
Item - Sewage Pumps
Explosion Proof Submersible Sewage Pump
Shaft Seal Material - Pumps
Carbon, Ceramic
Max. Liquid Temp.
104 Degrees F
Voltage - Pumps
120VAC
GPM of Water @ 15 Ft. of Head
108
Housing Material
Cast iron
Pump RPM
3450
Discharge NPT
2"
Switch Type - Pumps
Vertical
Hz
60 Hz
Motor Type
Oil Filled
Thermal Protection
Yes
GPM of Water @ 10 Ft. of Head
124
Rated Voltage
115V AC
Off Point
9 3/4 in
On Point
19 1/2 in
Discharge Standard
NPT
Flow Rate @ 20 Ft. of Head
87 gpm
Switch Electrical Connection
Integral
Duty Cycle
Continuous
Flow Rate @ 40 Ft. of Head
10 gpm
RPM
3,450 RPM
Flow Rate @ 15 Ft. of Head
104 gpm
Discharge
2 in FNPT
Discharge Gender
Female
Rotation Speed - Maximum
3,450 RPM
Horsepower
1/2 hp
Shaft Seal Material
Carbon/Ceramic
Frequency
60 Hz
Current
15.00 A
Feet of Head - Maximum
40 ft
Liquid Temperature - Maximum
104 Degrees F
Standards
FM Approved
Flow Rate @ 10 ft of Head
120 gpm

Description

Sewage Ejector Pump, HP 1/2, Rated Voltage 115V AC, Hz 60 Hz, Amps 15.00 A, Motor Type Oil Filled, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation Vertical Float, Switch Electrical Connection Integral, On Point 19 1/2 in, Off Point 9 3/4 in, Flow Rate @ 10 Ft. of Head 120 gpm, Flow Rate @ 15 Ft. of Head 104 gpm, Flow Rate @ 20 Ft. of Head 87 gpm, Flow Rate @ 40 Ft. of Head 10 gpm, Max. Diameter Solids 2 in
