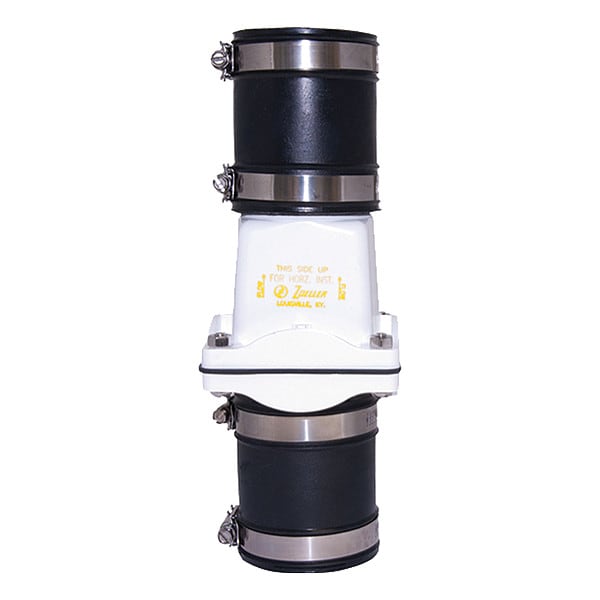

2" Slip PVC Full Flow Check Valve

  • Mfr # 30-0021
  • Zoro # G3150472
product price:
$
45.99
/ea

Key Features

Pipe Size
2"
Connection Type
Slip x Slip
Connection
Slip x Slip
Body Material
PVC
Standards
BOCA (P.604.2)
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
30-0021
Zoro #
G3150472
UPC #
053514029562
Country of Origin
United States

Dimensions

Pipe Size
2"
Size
2"
Pipe or Tube Size - Check Valves
2 in
Pipe or Tube Size
2 in
Connection Size - Side 1
2 in
Nominal Valve Size
2 in

Details

Connection Type
Slip x Slip
Connection
Slip x Slip
Body Material
PVC
Item
Full Flow Check Valve
Standards
BOCA (P.604.2)
Flow Design
Single
Full Flow - Valves
Yes
Max. Pressure
25 psi
Seal Material - Check Valves
Neoprene
Material of Construction
PVC
Mounting Position
Vertical or Horizontal
Connection Type - Check Valves
Clamp x Clamp
Flow
Not Rated
Seat Material - Check Valves
PVC
Max. Temp. - Valves
130 Degrees F
Application - Valves
Pumps
Max. Steam Pressure - Valves
Not Rated
Max. Water Pressure
4.3 psi @ 130 Degrees F
Mounting Orientation - Check Valves
Horizontal, Vertical
Sub-Category
PVC
Mechanism and Body Design
Inline Swing
Item - Check Valves
Check Valve
Max. Water Pressure - Valves
4.30 psi @ 130 Degrees F
Body Material - Valves
PVC
Cracking Pressure
1 psi
Seal Material
Neoprene
Seat Material
PVC
Mounting Orientation
Horizontal, Vertical
Type
Full Flow
Connection Type - Side 1
Clamp
Coefficient of Volume (Cv)
Not Rated
Connection Gender - Side 2
Female
Operating Temperature - Maximum
130 Degrees F
Connection Gender - Side 1
Female
Connection Type - Side 2
Clamp
Check Mechanism
Swing
Includes Counterweight
No Counterweight
Maximum Pressure - Operating
4.3 psi
Maximum Pressure - Steam
Not Rated
Check Mechanism Material
PVC
For Media
Pumps
Operating Temperature - Minimum
75 Degrees F
Valve Body Style
Inline
Silent Check
Standard
3-A Standard Compliance
Not Rated
NSF Certifications for Food and Drinking Water
Not Rated

Description

ZOELLER 30-0021 is a 2 in. PVC check valve with an inline swing design for use in pump piping systems requiring one-way flow control. The inline body and slip x slip connections support installation in horizontal or vertical orientations.

Key Features:

  • Valve type: Check valve with single-flow, swing check mechanism.
  • Construction: PVC body, PVC check mechanism, and PVC seat with a neoprene seal.
  • Size: 2 in. nominal valve size with 2 in. connections on both sides.
  • Connections: Slip x slip female connections.
  • Pressure and temperature: 1 psi cracking pressure, 25 psi maximum pressure, 4.3 psi maximum water pressure at 130 degrees F, and 130 degrees F maximum operating temperature.
  • Mounting: Horizontal or vertical.
  • Standard: BOCA (P.604.2).
  • Application: Pump piping systems.
