  9. 24" x 24" Sewage System, 1/2HP, Vertical Switch, 115V

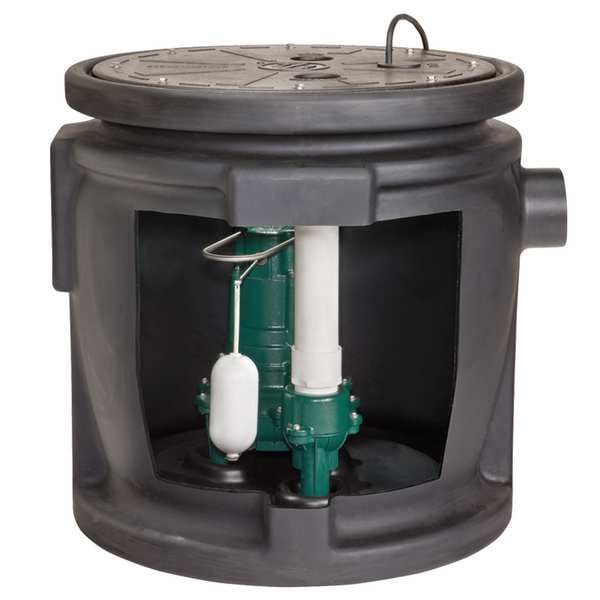

Zoeller 24" x 24" Sewage System, 1/2HP, Vertical Switch, 115V 912-1116 - main

24" x 24" Sewage System, 1/2HP, Vertical Switch, 115V

  • Mfr # 912-1116

  • Zoro # G0512732

product price: $919.79
/ea
Item requires special delivery charges. A $185.00 per item surcharge will be applied.

Key Features

Amps - Pumps
10.40
Voltage - Pumps
120VAC
Outlet
2
GPM of Water @ 20 Ft. of Head
10
Max. Diameter Solids
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
912-1116
Zoro #
G0512732
UPC #
053514289911
Country of Origin
United States

Dimensions

Max. Diameter Solids
2 in
Cord Length
10 ft
Basin Height
25 5/8 in
Basin Dia.
24 in
Manufacturers Warranty Length
3 yr
Max. Dia. Solids
2"
Cord Length - Pumps
10 ft.
Vent Size
2 in
Pump Discharge Diameter
2 in
Inlet Dia.
4 in
Solids Diameter - Maximum
2 in
Basin Diameter
24 in
For Vent Pipe Diameter
2 in
Inlet Diameter
4 in
Discharge Diameter
2 in

Details

Amps - Pumps
10.40
Voltage - Pumps
120VAC
Outlet
2
GPM of Water @ 20 Ft. of Head
10
Amps
10.4
Hz
60 Hz
Item - Sump/Sewage Pump Systems
Simplex Sewage System
Includes
Indoor High Water Alarm, Internal 2 in PVC Discharge Pipe
Pump HP
1/2
Item
Sewage Ejector System
Voltage
115V
Max. Head - Pumps
21 ft.
HP
1/2
Basin Capacity
41 gal
Phase
Single
Input Phase AC
1
GPM of Water @ 15 Ft. of Head
50
Switch Type - Pumps
Vertical
Max. Liquid Temp.
130 Degrees F
Motor RPM
1725
Features
Fully Assembled with Thermal Overload Protection, Non-Clogging Vortex Impeller, Anti-Floatation Device Helps to Eliminate Basin From Floating
Basin Material
Polyethylene
Inlet
4 in
Cover Material
Thermoplastic
GPM of Water @ 10 Ft. of Head
89
Discharge NPT
2" F
Vent
2
GPM of Water @ 5 Ft. of Head
128
Application
Waste Removal
Max. Head
21 ft
Pump Body Material
Cast Iron
RPM
1,725 RPM
Phase - Pumps
1
Number of Pumps
1
Duty Cycle
Continuous
Switch Electrical Connection
Integral
Rated Voltage
120V AC
Flow Rate @ 15 Ft. of Head
32 gpm
Switch Actuation
Vertical Float
Inlet Gender
Female
Alarm Included
Yes
Inlet Standard
NPT
Flow Rate @ 5 Ft. of Head
128 gpm
Flow Rate @ 20 Ft. of Head
10 gpm
Flow Rate @ 10 Ft. of Head
53 gpm
Alarm Application
Indoor
Discharge Location
Top
Installation
Submersible
Includes Alarm
Alarm Included
Power Source
Corded Electric
Discharge Standard
NPT
Series
Model 912
Pump Volute Material
Cast Iron
Feet of Head - Maximum
21 ft
Liquid Temperature - Maximum
130 Degrees F
For Media Type
Sewage Water
Horsepower
1/2 hp
Frequency
60 Hz
Impeller Design
Vortex
Discharge Gender
Female
Flow Rate @ 10 ft of Head
53 gpm
Rotation Speed - Maximum
1,725 RPM
Pump Motor Housing Material
Cast Iron

Description

Sewage Ejector System, HP 1/2, Number of Pumps 1, Rated Voltage 120V AC, Hz 60 Hz, Phase - Pumps 1, Switch Actuation Vertical Float, Switch Electrical Connection Integral, Pump Body Material Cast Iron, Basin Material Polyethylene, Flow Rate @ 5 Ft. of Head 128 gpm, Flow Rate @ 10 Ft. of Head 53 gpm, Flow Rate @ 15 Ft. of Head 32 gpm, Flow Rate @ 20 Ft. of Head 10 gpm, Max. Diameter Solids 2 in, Cord Length 10 ft, Max. Liquid Temp. 130 Degrees F, Max. Head 21 ft, RPM 1,725 RPM

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
