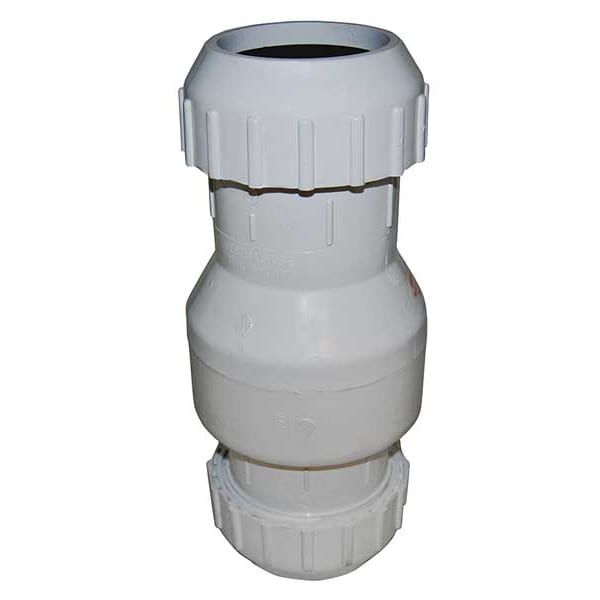

3" Compression PVC Full Flow Check Valve

  • Mfr # 30-0030

  • Zoro # G3092311

product price:
$
332.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
3"
Connection Type
Compression x Compression
Connection
Compression
Body Material
PVC
Size
3"
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
30-0030
Zoro #
G3092311
UPC #
053514264468
Country of Origin
United States

Dimensions

Pipe Size
3"
Size
3"
Pipe or Tube Size - Check Valves
3 in
Width
7 in
Overall Height
18 in
Length
14 in
Overall Length
14 in
Pipe or Tube Size
3 in
Connection Size - Side 1
3 in
Connection Size - Side 2
3 in
Nominal Valve Size
3 in
Wire Rope Length
14 in

Details

Connection Type
Compression x Compression
Connection
Compression
Body Material
PVC
Connection Type - Check Valves
Compression x Compression
Max. Water Pressure - Valves
125 psi @ 75 Degrees F
Max. Steam Pressure - Valves
Not Rated
Seal Material
Buna-N
Max. Temp.
130 Degrees F
Max. Temp. - Valves
130 Degrees F
Sub-Category
PVC
Mounting Orientation - Check Valves
Horizontal, Vertical
Body Material - Valves
PVC
Max. Pressure
125 psi @ 75 Degrees F
Flow
Not Rated
Seat Material - Check Valves
PVC
Item
Full Flow Check Valve
Mechanism and Body Design
Inline Swing
Material of Construction
PVC
Full Flow - Valves
Yes
Seal Material - Check Valves
Buna-N
Flow Design
Single
Application - Valves
Pumps
Item - Check Valves
Check Valve
Mounting Position
Vertical or Horizontal
Cracking Pressure
1 psi
Seat Material
PVC
Mounting Orientation
Horizontal, Vertical
Seal
Buna-N
Type
Compression
Silent Check
Standard
Vacuum Service Rating
Not Rated
Maximum Pressure - Steam
Not Rated
Check Mechanism
Swing
Connection Type - Side 2
Compression
3-A Standard Compliance
Not Rated
Includes Counterweight
No Counterweight
Check Mechanism Material
PVC
Maximum Pressure - Operating
125 psi
For Media
Water
Valve Body Style
Inline
Connection Gender - Side 2
Female
Connection Type - Side 1
Compression
Operating Temperature - Minimum
75 Degrees F
Connection Gender - Side 1
Female
NSF Certifications for Food and Drinking Water
Not Rated
Coefficient of Volume (Cv)
Not Rated
Operating Temperature - Maximum
130 Degrees F

Description

ZOELLER 30-0030 is a 3 in full-flow check valve with an inline swing design for one-way water flow in pump piping systems. Its PVC body and internal PVC check mechanism have a full-flow passage for pump piping applications and are intended to reduce backflow. The valve uses 3 in compression x compression female connections and can be mounted horizontally or vertically.

Key Features:

  • Full-flow check valve with a full-flow valve path and one-way flow design.
  • Inline swing check mechanism with inline body style.
  • PVC body, PVC seat, PVC check mechanism, and Buna-N seal.
  • 3 in compression x compression connections, female on both sides.
  • For water service in pump applications.
  • 1 psi cracking pressure.
  • 125 psi maximum water pressure at 75 degrees F; 125 psi maximum operating pressure.
  • 130 degrees F maximum operating temperature.
  • Horizontal or vertical mounting orientation.
  • Dimensions: 14 in overall length, 18 in overall height, 7 in width.
