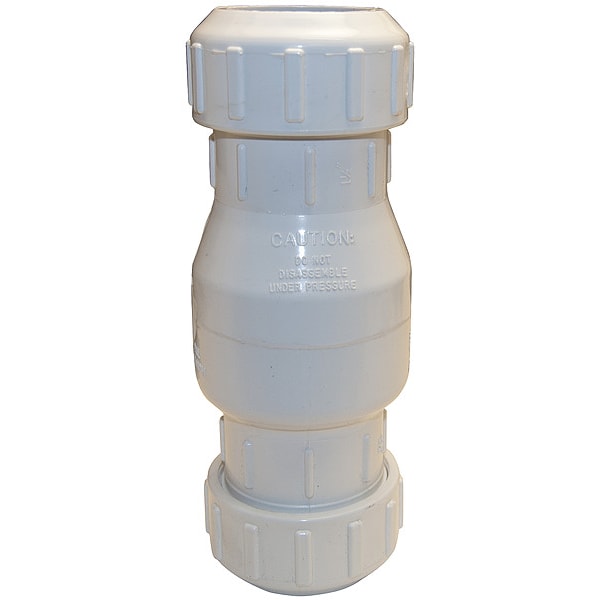

Zoeller Check Valve, 7.5 in Overall L 30-0254 - main

Check Valve, 7.5 in Overall L

  • Mfr # 30-0254

  • Zoro # G300488079

product price: $68.89
/ea

Key Features

Connection Type
Compression x Compression
Body Material
PVC
Flow Design
Single
Application - Valves
Backwater, Corrosives
Standards
CE, CSA, NSF, UL
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
30-0254
Zoro #
G300488079
UPC #
-
Country of Origin
United States

Dimensions

Length
7 1/2 in
Overall Length
7.5 in
Pipe or Tube Size - Check Valves
1 1/2 in
Pipe or Tube Size
1 1/2 in
Connection Size - Side 2
1 1/2 in
Nominal Valve Size
1 1/2 in
Connection Size - Side 1
1 1/2 in

Details

Connection Type
Compression x Compression
Body Material
PVC
Flow Design
Single
Application - Valves
Backwater, Corrosives
Standards
CE, CSA, NSF, UL
Seal Material - Check Valves
Buna-N
Item
Check Valve
Seal Material
Buna-N
Mechanism and Body Design
Union Check Valve
Item - Check Valves
Check Valve
Max. Temp. - Valves
130 Degrees F
Seat Material
PVC
Mounting Orientation - Check Valves
Horizontal, Vertical
Cracking Pressure
1 psi
Body Material - Valves
PVC
Full Flow - Valves
Yes
Flow
Not Rated
Max. Water Pressure - Valves
125 psi
Connection Type - Check Valves
Compression x Compression
Min. Temp. - Valves
75 Degrees F
Mounting Orientation
Horizontal, Vertical
Check Mechanism
Swing
Operating Temperature - Maximum
130 Degrees F
Maximum Pressure - Operating
125 psi
Connection Type - Side 2
Compression
Connection Gender - Side 1
Female
Connection Type - Side 1
Compression
Connection Gender - Side 2
Female
Vacuum Service Rating
Not Rated
Includes Counterweight
No Counterweight
For Media
Water
Check Mechanism Material
PVC
Operating Temperature - Minimum
75 Degrees F
Coefficient of Volume (Cv)
Not Rated
3-A Standard Compliance
Not Rated
Valve Body Style
Inline
Maximum Pressure - Steam
Not Rated
Silent Check
Standard
NSF Certifications for Food and Drinking Water
Not Rated
Manufacturer Warranty
1 yr

Description

Item - Check Valves Check Valve, Flow Design Single, Mechanism and Body Design Union Check Valve, Body Material - Valves PVC, Pipe or Tube Size 1 1/2 in, Connection Type Compression x Compression, Mounting Orientation Horizontal, Vertical, Seal Material Buna-N, Max. Temp. - Valves 130 Degrees F, Min. Temp. - Valves 75 Degrees F, Max. Water Pressure - Valves 125 psi, Full Flow - Valves Yes, Application - Valves Backwater, Corrosives, Length 7 1/2 in, Hex Size Not Applicable
