  9. Effluent Pump, 1/2hp, 15.5A

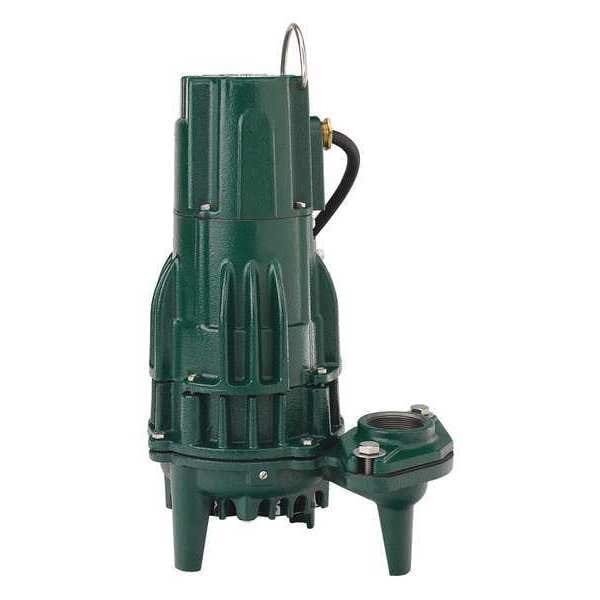

Zoeller Effluent Pump, 1/2hp, 15.5A 161-0002 - main

Effluent Pump, 1/2hp, 15.5A

  • Mfr # 161-0002

  • Zoro # G0423543

product price: $1,169.99
/ea
Free Shipping & Returns

Key Features

Phase - Pumps
1
Cord Length
20 ft
HP
1/2
Impeller Material
Bronze
Amps
15.5 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
161-0002
Zoro #
G0423543
UPC #
053514093358
Country of Origin
United States

Dimensions

Cord Length
20 ft
Height
19-5/16"
Cord Length - Pumps
20 ft.
Length
12-3/4"
Max. Diameter Solids
3/4 in
Width
8"
Min. Sump Pit Dia.
24 in
Manufacturers Warranty Length
1 yr
Max. Dia. Solids
3/4"
Diameter
12-3/4"
Discharge Dia.
1 1/2 in
Width at Widest Point
8 in
Body Dia.
12 3/4 in
Minimum Water Depth
24 in
Overall Height
19 3/8 in
Solids Diameter - Maximum
3/4 in
Water Depth - Minimum
24 in
Sump Pit Diameter - Minimum
24 in
Discharge Diameter
1 1/2 in
Body Diameter
12 3/4 in

Details

Item
Effluent Pump
Phase - Pumps
1
HP
1/2
Impeller Material
Bronze
Amps
15.5 A
Body Material
Cast Iron
Max. Head
56 ft
Switch Actuation
No Switch Included
Voltage - Pumps
120VAC
Max. Liquid Temp.
130 Degrees F
Thermal Protection
Manual
Bearing Type
Ball
Shaft Seal Material - Pumps
Carbon, Ceramic
Motor RPM
3450
GPM of Water @ 45 Ft. of Head
32
GPM of Water @ 10 Ft. of Head
93
Discharge NPT
1-1/2"
Handle
yes
GPM of Water @ 15 Ft. of Head
85
Amps - Pumps
15.50
GPM of Water @ 40 Ft. of Head
45
Switch Type - Pumps
No Switch Included
Voltage
115V
GPM of Water @ 30 Ft. of Head
61
Switch Type
None
Hz
60 Hz
Shaft Seal
Carbon/Ceramic
Base Material
Cast Iron
Impeller Material - Pumps
Bronze
GPM of Water @ 5 Ft. of Head
100
GPM of Water @ 20 Ft. of Head
78
Input Phase AC
1
Motor Type
PSC
GPM of Water @ 55 Ft. of Head
2
GPM of Water @ 25 Ft. of Head
70
Pump HP
1/2
Top Material
Cast Iron
Item - Effluent Pumps
Submersible Effluent Pump
Pump RPM
3450
Pump Body Material
Cast Iron
Housing Material
Cast iron
Agency Compliance
CSA C22.2 108, UL 778
GPM of Water @ 35 Ft. of Head
52
Phase
Single
Duty
Intermittent
Max. Head - Pumps
56 ft.
GPM of Water @ 50 Ft. of Head
20
Alarm Included
No
Discharge Gender
Female
Flow Rate @ 10 Ft. of Head
93 gpm
Rated Voltage
115V AC
Duty Cycle
Intermittent
Switch Electrical Connection
No Switch Included
RPM
3,450 RPM
Discharge
1 1/2 in FNPT
Discharge Standard
NPT
Flow Rate @ 15 Ft. of Head
85 gpm
Flow Rate @ 20 Ft. of Head
78 gpm
Flow Rate @ 40 Ft. of Head
45 gpm
Standards
CSA C22.2 108, UL Listed
NEC Cord Designation
SOOW
Power Source
Corded Electric
Hazardous Location Class
Not Rated
Flow Rate @ 10 ft of Head
93 gpm
Includes Alarm
No Alarm Included
Frequency
60 Hz
Shaft Seal Material
Carbon/Ceramic
Motor Housing Material
Cast Iron
Requires Control Panel
Control Panel Required
Flow Rate @ 20 ft of Head
78 gpm
Rotation Speed - Maximum
3,450 RPM
Shaft Seal Type
Single Mechanical
Volute Material
Cast Iron
Liquid Temperature - Maximum
130 Degrees F
Current
15.5 A
For Media Type
Effluent Water
Feet of Head - Maximum
56 ft
Horsepower
1/2 hp
Flow Rate @ 40 ft of Head
45 gpm
Impeller Design
Vortex

Description

Effluent Pump, HP 1/2, Rated Voltage 115V AC, Hz 60 Hz, Phase - Pumps 1, Amps 15.5 A, Body Material Cast Iron, Impeller Material Bronze, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Flow Rate @ 10 Ft. of Head 93 gpm, Flow Rate @ 15 Ft. of Head 85 gpm, Flow Rate @ 20 Ft. of Head 78 gpm, Flow Rate @ 40 Ft. of Head 45 gpm, Max. Head 56 ft, Min. Sump Pit Dia. 24 in, Minimum Water Depth 24 in, Body Dia. 12 3/4 in
