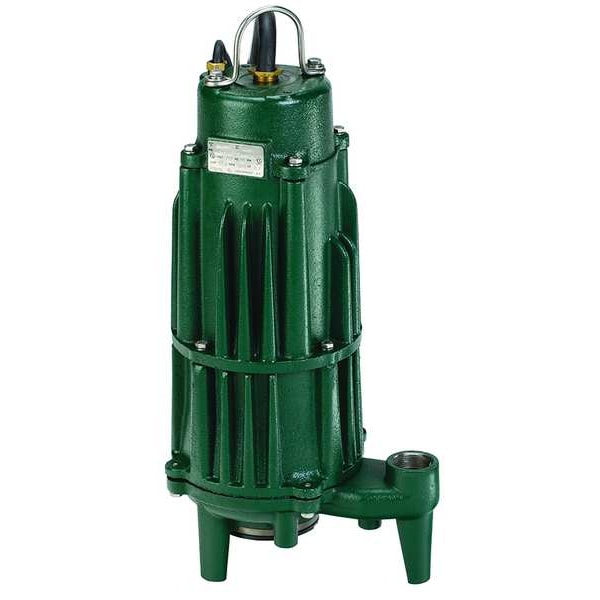

Zoeller Grinder Pump, Auto Reversing, 2 HP, 230V 840-0004 - main

Grinder Pump, Auto Reversing, 2 HP, 230V

  • Mfr # 840-0004

  • Zoro # G0325087

product price: $3,248.99
/ea
Item requires special delivery charges. A $160.00 per item surcharge will be applied.

Key Features

HP
2 hp
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
840-0004
Zoro #
G0325087
UPC #
053514246105
Country of Origin
United States

Dimensions

Min. Sump Pit Dia.
24 in
Diameter
11-21/32"
Cord Length - Pumps
20 ft.
Length
11-21/32" FNPT
Height
23-3/4"
Manufacturers Warranty Length
1 yr
Cord Length
20 ft
Discharge Dia.
1 1/4 in
Overall Length
11 5/8 in
Overall Height
23 3/4 in
Body Dia.
11 21/32 in
Sump Pit Diameter - Minimum
24 in
Discharge Diameter
1 1/4 in
Body Diameter
11 5/8 in

Details

HP
2 hp
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
45 gpm
Max. Head
104 ft
Impeller Material
Ductile Iron
GPM of Water @ 35 Ft. of Head
43
GPM of Water @ 10 Ft. of Head
45
GPM of Water @ 80 Ft. of Head
16
Phase
Single
GPM of Water @ 90 Ft. of Head
10
Max. Head - Pumps
104 ft.
GPM of Water @ 40 Ft. of Head
42
Input Phase AC
1
GPM of Water @ 30 Ft. of Head
44
GPM of Water @ 70 Ft. of Head
23
GPM of Water @ 15 Ft. of Head
45
Amps
17.2 A
Item - Grinder Pumps
Grinder Pump
GPM of Water @ 45 Ft. of Head
40
GPM of Water @ 20 Ft. of Head
45
Shaft Seal Material - Pumps
Carbon, Ceramic
GPM of Water @ 25 Ft. of Head
45
Voltage
230
GPM of Water @ 5 Ft. of Head
45
Agency Compliance
cCSAus, UL
Hz
60
GPM of Water @ 60 Ft. of Head
30
Voltage - Pumps
240VAC
Switch Type
No Switch Included
Thermal Protection
Yes
Impeller Material - Pumps
Ductile Iron
GPM of Water @ 100 Ft. of Head
11
Pump Body Material
Cast Iron
Motor Type
CSCR
Shaft Seal
Carbon/Ceramic
GPM of Water @ 50 Ft. of Head
36
Pump RPM
3450
Item
Grinder Pump
Switch Type - Pumps
No Switch Included
Housing Material
Cast iron
Duty
Intermittent
GPM of Water @ 55 Ft. of Head
32
Bearing Type
Ball
Discharge NPT
1-1/4" F
Max. Liquid Temp.
130 Degrees F
Handle
Yes
Motor RPM
3450
Discharge Standard
NPT
Switch Electrical Connection
No Switch Included
RPM
3,450 RPM
Flow Rate @ 60 Ft. of Head
30 gpm
Flow Rate @ 40 Ft. of Head
42 gpm
Discharge
1 1/4 in FNPT
Rated Voltage
230V AC
Discharge Gender
Female
Flow Rate @ 15 Ft. of Head
45 gpm
Flow Rate @ 20 Ft. of Head
45 gpm
Duty Cycle
Intermittent
Discharge Orientation
Vertical
Horsepower
2 hp
Feet of Head - Maximum
104 ft
Motor Housing Material
Cast Iron
Flow Rate @ 10 ft of Head
45 gpm
Standards
cCSAus, UL
Rotation Speed - Maximum
3,450 RPM
Requires Control Panel
Control Panel Required
Current
17.2 A
Volute Material
Cast Iron
Liquid Temperature - Maximum
130 Degrees F
Power Source
Corded Electric
Frequency
60 Hz
For Media Type
Sewage Water
Shaft Seal Type
Single Mechanical
Hazardous Location Class
Not Rated
Shaft Seal Material
Carbon/Ceramic
Cord Termination
Bare Wire Leads

Description

Grinder Pump, HP 2 hp, Rated Voltage 230V AC, Hz 60, Phase - Pumps 1, Amps 17.2 A, Motor Type CSCR, Body Material Cast Iron, Impeller Material Ductile Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, Flow Rate @ 10 Ft. of Head 45 gpm, Flow Rate @ 15 Ft. of Head 45 gpm, Flow Rate @ 20 Ft. of Head 45 gpm, Flow Rate @ 40 Ft. of Head 42 gpm, Flow Rate @ 60 Ft. of Head 30 gpm, Max. Head 104 ft
