Shop ZOELLER

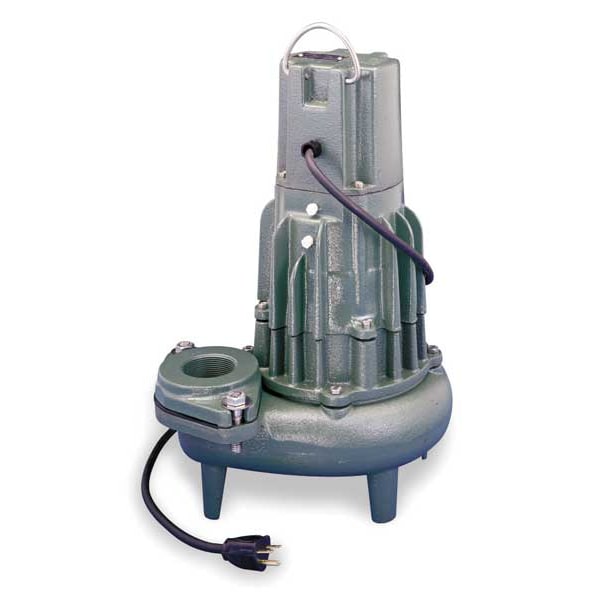

Waste-Mate 1 HP 2" Manual Submersible Sewage Pump 230V

  • Mfr # 284-0004

  • Zoro # G2320315

product price:
$
1,260.99
/ea
Free Shipping & Returns

Key Features

HP
1
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
284-0004
Zoro #
G2320315
UPC #
053514093914
Country of Origin
United States

Dimensions

Max. Diameter Solids
2 in
Cord Length - Pumps
15 ft.
Max. Dia. Solids
2"
Manufacturers Warranty Length
1 yr
Diameter
13-9/16"
Height
21-1/16"
Cord Length
15 ft
Min. Sump Pit Dia.
24 in
Overall Height
21 1/8 in
Discharge Dia.
3 in
Body Dia.
13 9/16 in
Body Diameter
13 5/8 in
Sump Pit Diameter - Minimum
24 in
Discharge Diameter
2 in
Solids Diameter - Maximum
2 in
Width at Widest Point
13 5/8 in

Details

HP
1
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
157 gpm
Max. Head
35 ft
Impeller Material
Cast Iron
Max. Liquid Temp.
104 Degrees F
GPM of Water @ 5 Ft. of Head
179
Thermal Protection
Yes
Item
Sewage Ejector Pump
Shaft Seal Material - Pumps
Carbon, Ceramic
GPM of Water @ 10 Ft. of Head
157
Voltage
230
Impeller Material - Pumps
Cast Iron
Phase
Single
GPM of Water @ 20 Ft. of Head
106
Pump Type
Manual
GPM of Water @ 25 Ft. of Head
72
Discharge NPT
2"
GPM of Water @ 15 Ft. of Head
133
Agency Compliance
CSA Certified, UL Listed
Switch Type - Pumps
No Switch Included
Voltage - Pumps
240VAC
Input Phase AC
1
GPM of Water @ 30 Ft. of Head
42
Pump Body Material
Cast Iron
Item - Sewage Pumps
Submersible Sewage Pump
Amps - Pumps
8.90
Motor Type
Hermetically-Sealed, Oil-filled
Amps
8.90 A
Max. Head - Pumps
35 ft.
Shaft Seal
Carbon/Ceramic
Housing Material
Cast iron
Switch Type
None
Bearing Type
Upper Sleeve/Lower Ball
Motor RPM
1750
Flow Rate @ 15 Ft. of Head
133 gpm
Rated Voltage
230V AC
Duty Cycle
Continuous
Discharge
3 in FNPT
Discharge Standard
NPT
Off Point
5 1/4 in
Flow Rate @ 20 Ft. of Head
106 gpm
Discharge Gender
Female
RPM
1,750 RPM
On Point
16 1/2 in
Switch Electrical Connection
No Switch Included
Standards
CSA Certified, UL Listed
Type
Manual
Shaft Seal Material
Carbon/Ceramic
Series
Model 284
Volute Material
Cast Iron
For Media Type
Sewage Water
Shaft Seal Type
Single Mechanical
Feet of Head - Maximum
35 ft
Rotation Speed - Maximum
1,750 RPM
Discharge Orientation
Vertical
Liquid Temperature - Maximum
104 Degrees F
Horsepower
1 hp
Hazardous Location Class
Not Rated
Motor Housing Material
Cast Iron
Requires Control Panel
No Control Panel Required
Flow Rate @ 10 ft of Head
179 gpm
Current
8.90 A
Power Source
Corded Electric
Frequency
60 Hz
Power Source - TS Only
Corded Electric
Power Source - old
Corded Electric

Description

Sewage Ejector Pump, HP 1, Rated Voltage 230V AC, Phase - Pumps 1, Amps 8.90 A, Motor Type Hermetically-Sealed, Oil-filled, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, On Point 16 1/2 in, Off Point 5 1/4 in, Flow Rate @ 10 Ft. of Head 157 gpm, Flow Rate @ 15 Ft. of Head 133 gpm, Flow Rate @ 20 Ft. of Head 106 gpm, Max. Diameter Solids 2 in
