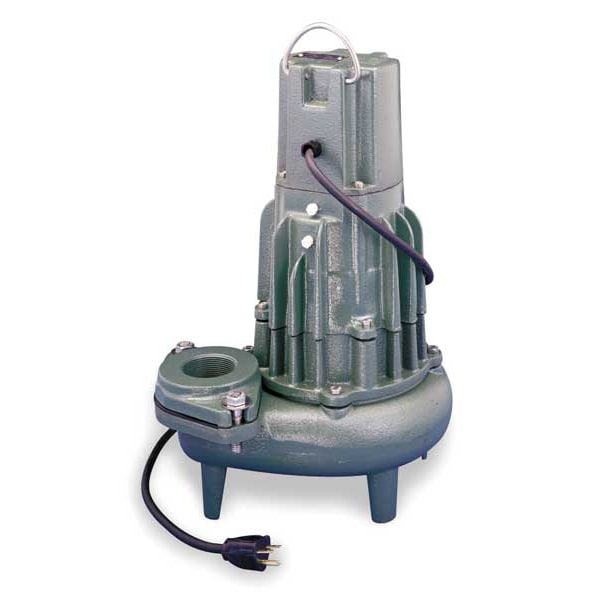

Zoeller Waste-Mate 1/2 HP 3" Manual Submersible Sewage Pump 115V 282-0002 - main

Waste-Mate 1/2 HP 3" Manual Submersible Sewage Pump 115V

  • Mfr # 282-0002

  • Zoro # G2390516

product price: $1,045.99
/ea
Free Shipping & Returns

Key Features

HP
1/2
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
282-0002
Zoro #
G2390516
UPC #
053514093891
Country of Origin
United States

Dimensions

Max. Diameter Solids
2 in
Cord Length
15 ft
Diameter
13-9/16"
Max. Dia. Solids
2"
Cord Length - Pumps
20 ft.
Manufacturers Warranty Length
1 yr
Height
21-1/16"
Min. Sump Pit Dia.
24 in
Overall Height
21 1/8 in
Discharge Dia.
3 in
Body Dia.
13 9/16 in
Width at Widest Point
13 5/8 in
Solids Diameter - Maximum
2 in
Discharge Diameter
2 in
Body Diameter
13 5/8 in
Sump Pit Diameter - Minimum
24 in

Details

HP
1/2
Phase - Pumps
1
Switch Actuation
No Switch Included
Body Material
Cast Iron
Base Material
Cast Iron
Flow Rate @ 10 Ft. of Head
96 gpm
Max. Head
26 ft
Impeller Material
Cast Iron
Agency Compliance
CSA Certified, UL Listed
Bearing Type
Upper Sleeve/Lower Ball
Pump Type
Manual
Shaft Seal Material - Pumps
Carbon, Ceramic
Amps - Pumps
10.30
Input Phase AC
1
GPM of Water @ 10 Ft. of Head
95
Pump Body Material
Cast Iron
Max. Head - Pumps
26 ft.
Amps
10.30 A
GPM of Water @ 5 Ft. of Head
130
Item
Sewage Ejector Pump
Motor Type
Hermetically-Sealed, Oil-filled
Housing Material
Cast iron
Voltage - Pumps
120VAC
Item - Sewage Pumps
Submersible Sewage Pump
Phase
Single
Switch Type - Pumps
No Switch Included
GPM of Water @ 20 Ft. of Head
33
Motor RPM
1750
GPM of Water @ 15 Ft. of Head
63
Switch Type
None
Impeller Material - Pumps
Cast Iron
Shaft Seal
Carbon/Ceramic
Thermal Protection
Yes
GPM of Water @ 25 Ft. of Head
5
Voltage
115
Discharge NPT
3"
Max. Liquid Temp.
104 Degrees F
Switch Electrical Connection
No Switch Included
Discharge Standard
NPT
Discharge
3 in FNPT
RPM
1,750 RPM
Flow Rate @ 15 Ft. of Head
64 gpm
Off Point
5 1/4 in
Rated Voltage
115V AC
On Point
16 1/2 in
Flow Rate @ 20 Ft. of Head
34 gpm
Duty Cycle
Continuous
Discharge Gender
Female
Standards
CSA Certified, UL Listed
Type
Manual
Hazardous Location Class
Not Rated
Current
10.30 A
Frequency
60 Hz
For Media Type
Sewage Water
Shaft Seal Type
Single Mechanical
Power Source
Corded Electric
Flow Rate @ 10 ft of Head
127 gpm
Discharge Orientation
Vertical
Volute Material
Cast Iron
Horsepower
1/2 hp
Shaft Seal Material
Carbon/Ceramic
Series
Model 282
Motor Housing Material
Cast Iron
Rotation Speed - Maximum
1,750 RPM
Requires Control Panel
No Control Panel Required
Feet of Head - Maximum
26 ft
Liquid Temperature - Maximum
104 Degrees F

Description

Sewage Ejector Pump, HP 1/2, Rated Voltage 115V AC, Phase - Pumps 1, Amps 10.30 A, Motor Type Hermetically-Sealed, Oil-filled, Body Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Material - Pumps Carbon, Ceramic, Switch Actuation No Switch Included, Switch Electrical Connection No Switch Included, On Point 16 1/2 in, Off Point 5 1/4 in, Flow Rate @ 10 Ft. of Head 96 gpm, Flow Rate @ 15 Ft. of Head 64 gpm, Flow Rate @ 20 Ft. of Head 34 gpm, Max. Diameter Solids 2 in
